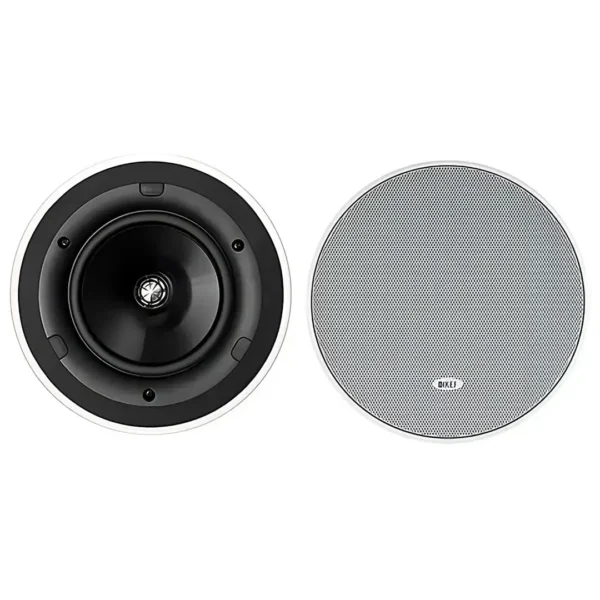

Kef Ci160QR Flush Fit Round Speaker

The Kef Ci160QR Flush Fit Round Speaker is the latest edition to the Kef Uni-Q custom installation speaker family, purpose built for direct flush mounting into ceilings or walls.

Model: Ci160QR

Description

Kef Ci160QR Flush Fit In Ceiling  Speaker

The Kef Ci160QR Flush Fit Round Speaker is the latest edition to the Kef Uni-Q custom installation speaker family, purpose built for direct flush mounting into ceilings or walls. Designed to smoothly integrate and architecturally and blend in with existing decor, KEF’s trademark Uni-Q technology has a decisive performance advantage in these applications, because each point source driver array evenly disperses the sound, ensuring a smooth frequency response over a large area to create a spacious three-dimensional soundscape with genuine texture and depth. With a two-way Uni-Q driver of 160mm (6.5”), the Ci160QR is as satisfyingly musical to hear as it is neat in appearance.

The Ci160qr delivers Hi-Fi quality sound through a polypropylene cone low frequency driver with a high frequency driver mounted at the acoustic centre of the LF drive unit. The bezel and grill can be painted to match the interior decor of the room.

Features and Benefits
Purpose built for flush mounting into walls and ceilings these are the latest addition to the KEF Uni-Q Custom Installation series. Providing a compact solution to the problem of Hi-Fi quality sound from an in-wall/ceiling speaker, the Ci160QR consists of a polypropylene cone LF driver with the HF unit mounted at the acoustic centre of the LF unit. The bezel and grill can be painted to match the interior décor.

Key Features

  • 10-125W
  • In Ceiling / In Wall Speaker
  • 196mm cutout
  • LF & HF Drive Unit
  • Flush Wall Ceiling Fit
  • Ultra Thin Bezel
  • White Paintable Grills

Applications

The Ci Series Ci 160QR is best suited for high quality music and speech reinforcement applications requiring hi-fi performance such as:

  • Multi Room systems
  • Home Theatre systems
  • Lounges, Bars, Boutiques
  • Boardrooms & Offices
  • Airports, Convention Centres, Hotels
  • Live Theatre/Concert Hall fill-in
  • Houses of Worship
  • Sports Arenas

let's talk contact page buttontrading standards but with confidence logo

Architectural Specifications

The Ci Series Ci 160QR consist of: 1 X 19mm aluminium dome tweeter 160mm white polypropylene cone with double neo compound magnet system.
Performance of the Ci 160QR shall meet or exceed the following criteria: frequency response 1 metre on-axis with swept sinewave shall be 38Hz to 34kHz , sensitivity shall be at least 89dB for 2.83V@1m. The 2.83V@1m. The driver impedance shall be 8 ohms.

Specifications
Model No Ci160qr
Nominal Impedance 8 Ohms
Sensitivity (2.83V/ 1m) 89dB
Frequency Response +/-6dB 2pi/open-backed 38Hz – 34kHz
Crossover Frequency 3kHz
Drive Units 160mm LF 19mm HF
Recommended Amplifier Power 10 – 125W
Features Ultra Thin Bezel
Mounting Depth from Surface 91mm
Cut – out Dimension 196mm

For more information on the Kef Ci160QR Flush Fit Round Speaker please see the links below.

Product Downloads

KEF Ci160qr Technical Specifications

KEF Custom Installation Speaker Brochure
