Future Automation CHR Fold Down TV Lift System

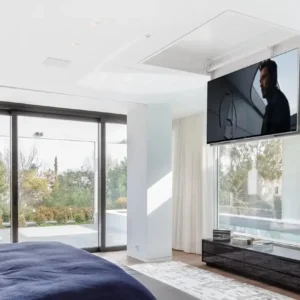

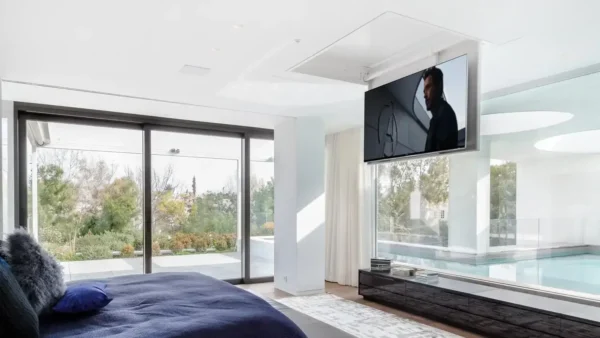

The Future Automation CHR Fold down TV lift mechanism is a revolutionary new product that hides a TV in the ceiling when not in use. With the press of a button, the motorised CHR hinges the TV smoothly and easily into the perfect veiling position. The CHR flip-down TV mount comes in five different models, suitable for TVs ranging from 42″ to 86″. The CHR ceiling hinge features a unique plaster-in edge kit for seamless integration into your ceiling with no visible bezel or trim. Made in the UK and built to last, if you’re looking for a TV that folds down from the ceiling and folds up when hidden, the CHR is the perfect choice. Perfect for modern day living and a great solution for hiding a TV in the bedroom. We don’t just sell ceiling TV lifts; we also install them. If you have any questions, please get in touch with us here.
- Description
- Specifications
- Downloads
- Video & Pictures
- Q & A
- Reviews (0)
Description
Future Automation CHR In Ceiling TV Lift Mechanism
The Future Automation CHR Series is the ultimate solution for residential hidden TV systems. A built-in fold-down TV lift system that allows you to hide your TV screen in the ceiling when you’re not watching it. With the press of a button, the lift elegantly folds down the TV from the ceiling for viewing. Available in five different models, the CHR ceiling hinge-up TV Lift is suitable for flat-screen TVs ranging from 42″ to 86″. Scroll down to see a video of the CHR in action.
| MODEL NUMBER | MAX SCREEN DIMENSIONS | MAX SCREEN WEIGHT |
|---|---|---|
| CHR4 | 680 X 1130 X 100MM | 55KG |
| CHR5 | 800 X 1330 X 100MM | 40KG |
| CHR6 | 920 X 1530 X 100MM | 85KG |
| CHR7 | 1010 X 1730 X 100MM | 65KG |
| CHR8 | 1110 X 1980 X 150MM | 140KG |

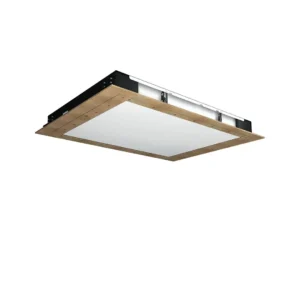

The CHR fold-down TV lift features an MDF “Plaster In Edge”; this allows for a neat installation into the ceiling, designed to eliminate any visibility on the ceiling flange around the mechanism itself. This fantastic new addition helps create a perfect, seamless installation with only the thinnest of shadow gaps around the lid when closed. All CHR hinge-down units are shipped as a single, complete unit, ready for installation. This dramatically reduces the chance of errors during installation and streamlines the entire process.
CHR Lift Presentation video: click below to watch.

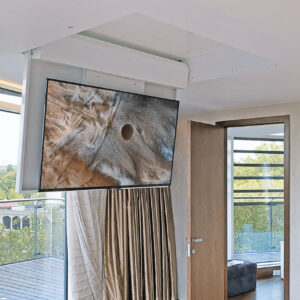

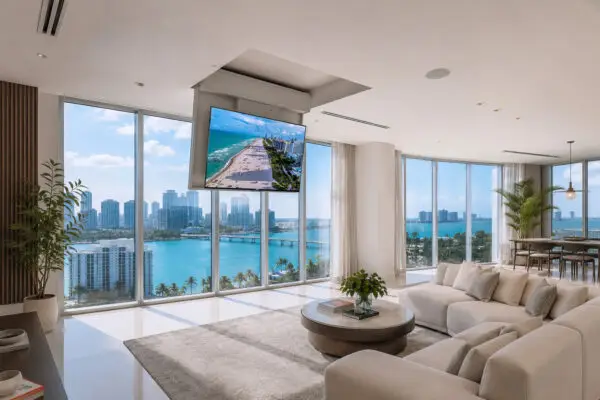

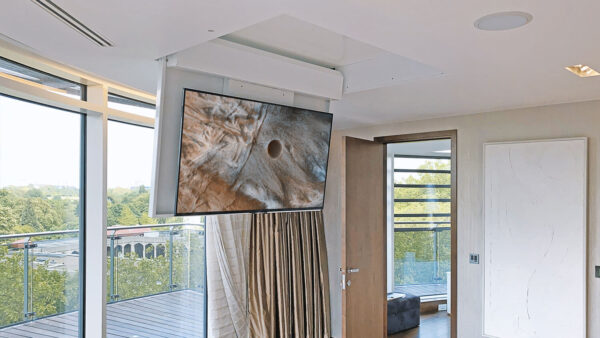

The CHR TV lift series is ideal for use in areas with relatively small ceiling voids or when you have limited floor or wall space—allowing televisions to be concealed unobtrusively in the ceiling when not in use. They are used frequently in bedrooms, open-plan living areas, kitchens, and new extensions with bifold doors. Cabling can be routed through the mechanism for zero visibility.
The CHR range of ceiling hinge TV lifts can be controlled by RS232, contact closure, and, as standard, comes complete with an IR remote control, making it possible to fully integrate with most brands of home automation control systems. Also available is an RF remote option, which allows the lift to operate remotely out of line of sight —a handy addition if the unit is not being configured to an existing control system.
Design Highlights
- Near Silent Motor System
- Compact design for minimum spatial requirements
- MDF “Plaster In Edge” for neat installation into the ceiling
- Modular Format ensures simple installation
- Range of sizes from 32″ up to 86″
- 0 to 100 degrees movement
CHR Fold Down TV Lift Specifications
| PRODUCT CODE | CHR4 | CHR5 | CHR6 | CHR7 | CHR8 |
|---|---|---|---|---|---|
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR |
| FINISH (CUSTOM AVAILABLE) | WHITE PAINT – RAL9910 | WHITE PAINT – RAL9910 | WHITE PAINT – RAL9910 | WHITE PAINT – RAL9910 | WHITE PAINT – RAL9910 |
| HEIGHT WITHIN CEILING | 210MM(8.3″) | 210MM(8.3″) | 210MM(8.3″) | 210MM(8.3″) | 270MM (10.6″) |
| MAX SCREEN DIMENSIONS (HXWXD) | 680 X 1130 X 100MM (26.8 X 44.5 X 3.9″) | 800 X 1330 X 100MM (31.5 X 52.4 X 3.9″) | 920 X 1530 X 100MM (36.2 X 60.2 X 3.9″) | 1010 X 1730 X 100MM (39.8 X 68.1 X 3.9″) | 1110 X 1980 X 150MM (43.7 X 78 X 5.9″) |
| MAX SCREEN WEIGHT | 55KG (121LBS) | 40KG (88LBS) | 85KG (187LBS) | 65KG (143LBS) | 140KG (309LBS) |
| MECHANISM WEIGHT (APPROX) | 110KG (243LBS) | 120KG (265LBS) | 145KG (320LBS) | 170KG (375LBS) | 225KG (496LBS) |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED | MOTORISED | MOTORISED |
There are 3 other model in the CHR series from Future Automation which add additional features and articulation please see links below.
- CHRT TV ceiling hinge with additional drop. Great for tall ceilings where lowering the screen.
- CHRSÂ fold down TV lift with swivel. Perfect for viewing the TV in multiple directions.
- CHRTS flip down TV with additional drop and swivel. Great for taal rooms and for viewing in any position.
For help with this or any other product please contact us
For more information please see the links below.
CHR Fold Down TV Lift Product Downloads
Future Automation CHR4 Technical Specifications
Future Automation CHR5 Technical Specifications
Future Automation CHR6 Technical Specifications
Future Automation CHR7 Technical SpecificationsÂ
CHR Ceiling Television Lift Product Videos
<
There are 3 other model in the CHR series from Future Automation which add additional features and articulation please see links below.
- CHRT TV ceiling hinge with additional drop.
- CHRSÂ fold down TV lift with swivel.
- CHRST flip down TV with additional drop and swivel.
