CHRS Fold Down TV lift With Swivel Rotation Future Automation
The Future Automation CHRS Fold down & Swivel TV lift mechanism is a revolutionary new product that hides a TV in the ceiling when not in use. With the press of a button, the motorised CHRS folds down the TV smoothly and easily, and also allows for up to 180 degrees of rotation in either direction. This is perfect if the TV needs to be viewed from multiple areas in large, open-plan living spaces, or dual-purpose kitchens/diners. The CHRS flip-down TV lift is available in five different versions, catering to TVs ranging from 42″ to 75″. The CHRS ceiling hinge comes with a unique plaster-in edge kit for seamless integration into your ceiling with no visible bezel or trim. Made in the UK and built to last, if you’re looking for a hidden TV that flips down from the ceiling and can rotate, the CHRS is for you. Perfect for modern-day living and an excellent solution for hiding a TV in the bedroom. We don’t just sell ceiling TV lifts, we also install them, so if you have any questions, get in touch with us here.
- Description
- Specifications
- Downloads
- Video & Downloads
- Q & A
- Reviews (0)
Description
Future Automation CHRS Ceiling Hinge TV Lift With Swivel Rotation
The Future Automation CHRS is an innovative new solution for hiding a flat-screen TV in residential homes or any plasterboard ceiling. A built-in ceiling hinge-down TV lift system that also rotates the TV, allowing multiple viewing positions. When you’re not watching TV, the screen is completely hidden in the ceiling, folded away out of sight. With the press of a button, the lift elegantly hinges the TV down from the ceiling and rotates it in either direction. Available in five different models, the CHRS ceiling TV Lift is suitable for flat screen TVs from 42″ right up to 75″.

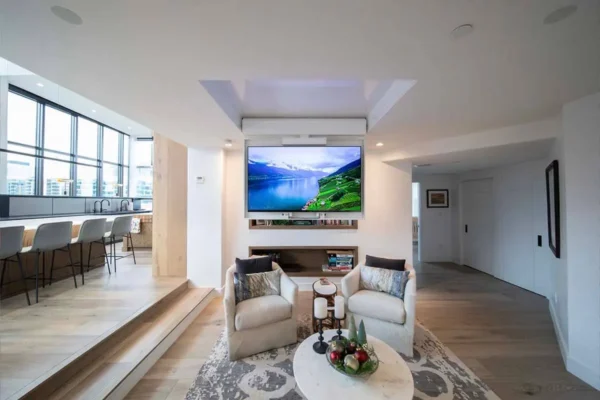

The CHRS comes complete with a 180-degree swivel in both directions. This is ideal for situations where customers want to view the screen from multiple locations, such as in multipurpose rooms. Customers often use them with large, open-plan living spaces or modern extensions that feature bifold doors. Anyone looking for a hidden TV that rotates the CHRS is a fantastic choice.
Scroll down to see a video of the CHRS in action.
| MODEL NUMBER | MAX SCREEN DIMENSIONS HxWxD | MAX SCREEN WEIGHT |
|---|---|---|
| CHRS4 | 680 X 1130 X 100MM | 45KG |
| CHRS5 | 800 X 1330 X 100MM | 35KG |
| CHRS6 | 920 X 1530 X 100MM | 80KG |
| CHRS7 | 970 X 1730 X 100MM | 65KG |
| CHRS8 | 1090 X 1980 X 150MM | 115KG |

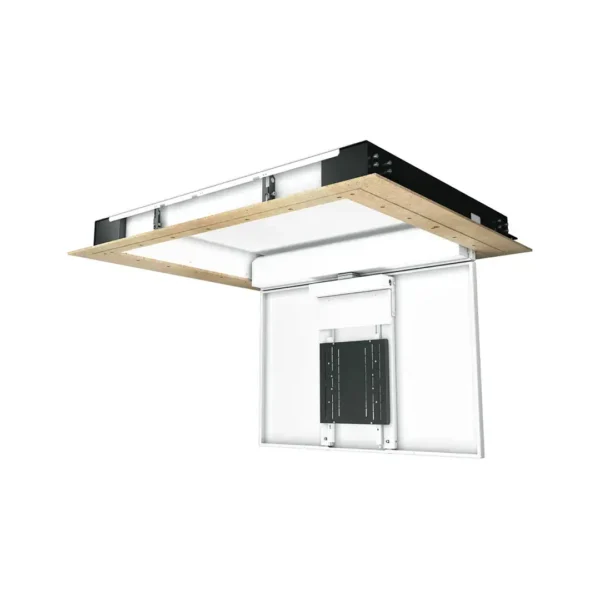

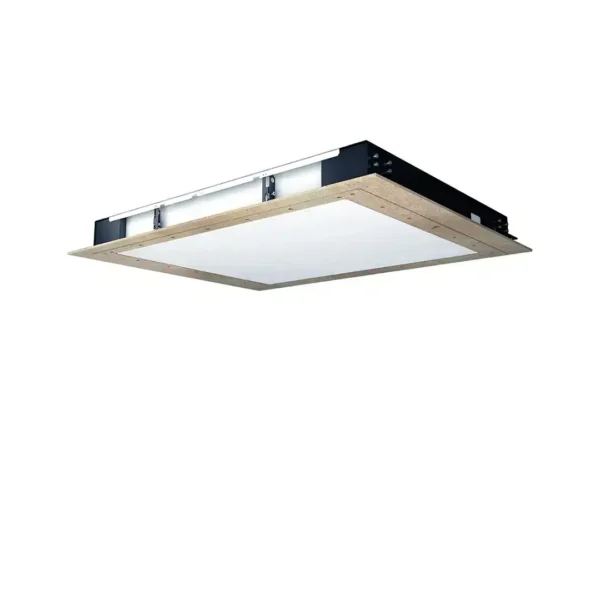

The CHRS rotating fold-down lift features an MDF “Plaster In Edge”; this allows for a neat installation into the ceiling, designed to eliminate any visibility on the ceiling flange around the mechanism itself. This fantastic new addition helps create a perfect, seamless installation with only the thinnest of shadow gaps around the lid when closed. All CHRS hinge-down units are shipped as a single, complete unit, ready for installation. This dramatically reduces the chance of errors during installation and streamlines the entire process.
RS232, contact closure can control the CHRS range of ceiling hinge TV lift mechanisms, and, as standard, comes complete with an IR remote control, making it fully integratable with most brands of home automation control systems. Also available is an RF remote option, which allows the lift to operate remotely out of line of sight —a handy addition if the unit is not being configured to an existing control system.
CHRS Lift Presentation video: click below to watch.
Design Highlights
- Near Silent Motor System
- Compact design for minimum spatial requirements
- 0 – 90 degrees ceiling-hinged TV
- 180-degree rotation
- MDF “Plaster In Edge” for neat installation into the ceiling
- Modular format ensures simple installation
- Range of sizes from 42″ up to 75″
Future Automation CHRS Rotating Fold Down TV Lift
| PRODUCT CODE | CHRS4 | CHRS5 | CHRS6 | CHRS7 | CHRS8 |
|---|---|---|---|---|---|
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR |
| FINISH (CUSTOM AVAILABLE) | WHITE PAINT – RAL9910 | WHITE PAINT – RAL9910 | WHITE PAINT – RAL9910 | WHITE PAINT – RAL9910 | WHITE PAINT – RAL9910 |
| HEIGHT WITHIN CEILING | 210MM(8.3″) | 210MM(8.3″) | 210MM(8.3″) | 220MM (8.7″) | 270MM (10.6″) |
| MAX SCREEN DIMENSIONS (HXWXD) | 680 X 1130 X 100MM (26.8 X 44.5 X 3.9″) | 800 X 1330 X 100MM (31.5 X 52.4 X 3.9″) | 920 X 1530 X 100MM (36.2 X 60.2 X 3.9″) | 970 X 1730 X 100MM (38.1 X 68.1 X 3.9″) | 1090 X 1980 X 150MM (42.9 X 78 X 5.9″) |
| MAX SCREEN WEIGHT | 45KG (99LBS) | 35KG (77LBS) | 80KG (176LBS) | 65KG (143LBS) | 115KG (254LBS) |
| MECHANISM WEIGHT (APPROX) | 130KG (286LBS) | 150KG (331LBS) | 170KG (375LBS) | 205KG (452LBS) | 255KG (562LBS) |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED | MOTORISED | MOTORISED |
There are 3 other model in the CHR series from Future Automation which add additional features and articulation please see links below.
- CHR fold down TV lift
- CHRT TV ceiling hinge with additional drop.
- CHRTS flip down TV with additional drop and swivel.
For help with this or any other product please contact us
For more information please see the links below.
Product Downloads
Future Automation CHRS4 Technical Specifications
Future Automation CHRS5 Technical Specifications
Future Automation CHRS6 Technical Specifications
Future Automation CHRS7 Technical Specifications
CHRS Rotating Fold Down TV Lift Product Video
There are 3 other model in the CHR series from Future Automation which add additional features and articulation please see links below.
- CHR fold down TV lift
- CHRT TV ceiling hinge with additional drop.
- CHRTS flip down TV with additional drop and swivel.
