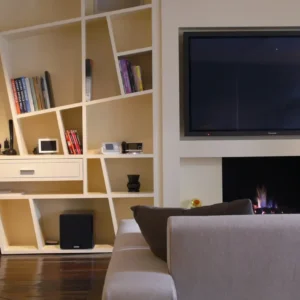

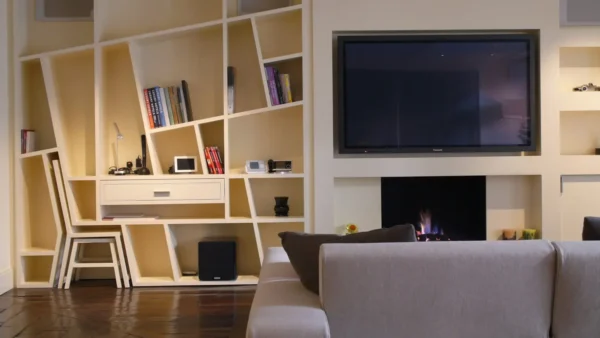

recessed tv wall mounted using a fb49 flat tv bracket

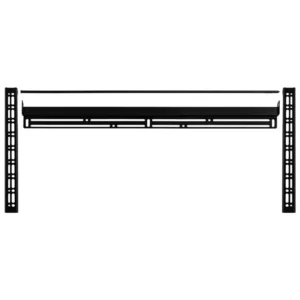

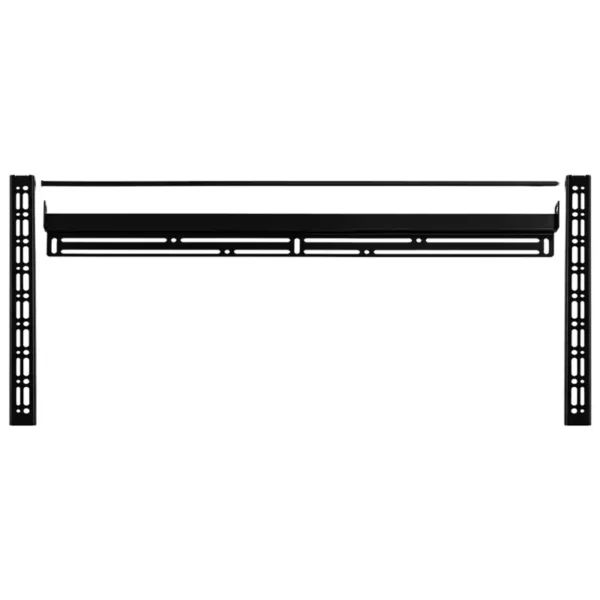

future automation fb49 flat tv wall mount
Future Automation FB22 Ultra Slim Flat TV Bracket Future Automation FB22 Ultra Slim Flat TV Bracket
Future Automation FB80 Large Fixed TV Wall Mount Future Automation FB80 Large Fixed TV Wall Mount

Future Automation FB49 Flat TV Bracket With Locking Bar

The Future Automation FB49 is a premium flat TV bracket, designed and made in the UK, for hanging TVs from 50″ up to 80″. The Universal mounting plate and arms can accommodate vesa mounting patterns up to a maximum of 800mm x 500mm. The FB49 can easily support upto to 70KG, so can be used with any of their soundbar brackets. Featuring a low profile design the FB49 sits only 30mm off the wall when installed. For additional safety the FB49 is supplied with a security locking bar, preventing the TV from being accidentally dismounted. Packed with loads of installer friendly features, it’s no wonder the FB49 is prefered by professional AV installers all over the world. If you are looking for a slim tv mount for larger screens that can be secured, the fit and forget FB49 is a great choice.

made in britain
let's talk contact page button

£91.99

Model: FB49
Add to wishlist

Description

Future Automation FB49 Flat TV Bracket

The FB49 is a premium, low-profile flat TV wall mount used to hang TVs on the wall, ranging from 50″ to 80″. Made in the UK from solid steel and built to last a lifetime. The slim design of the FB49 holds the TV  just 30mm from the wall, which is barely noticeable. This universal design allows the TV bracket to support VESA patterns of up to 800mm x 500mm, making it compatible with most larger TVs. The slim design can support a total weight of 70kg, so no problem attaching a soundbar bracket too if needed. The FB49 is equipped with a security bar that locks the TV into place once it is wall-mounted, preventing accidental dismounting. It ships with everything you need in the box, including a selection of TV mounting bolts and spacers.

The Future Automation FB49 Flat TV Bracket is packed with installer-friendly features, making installation very easy. The bracket comes in three parts: a pair of universal TV mounting arms that bolt to the back of the TV, along with a long wall plate featuring numerous slots and holes for screws and fixings, providing multiple options for complex installations. Once secured to the wall using the correct fixings for your wall type, the TV simply hooks over the wall plate, and as it lowers, it hangs securely on the rail. Furthermore, there is a security locking bar and screws on the top of the TV mounting arms for securing the TV. This prevents it from being unhinged or accidentally dismounted. The FB49 uses high-grade, thick steel, which is powder-coated black. The bracket weighs 7.5kg, unlike flimsy, cheaper imported TV brackets. Loved by professional AV installers & Smart home integrators, the FB49 universal design means it will last a lifetime.

FB49 Design Features

  • Slim design 30mm
  • Robust Solid Steel construction for strength
  • 40KG max weight
  • Up to VESA 800mm x 500mm  TV Bracket
  • Built-in security locking bar

What’s in the box

  • Wall rail plate
  • 2 X screen mounting arms
  • 2 X M4 X8MM security screws
  • Accessory/bolt pack
  • Installation instructions
FULL RANGE OF FLAT TV BRACKETS TO SUIT All TV SIZES
APPROX TV SIZES MAX WEIGHT MODEL NO
22″-47″ 40KG FB22
49″-80″ 70KG FB49
80″+ 120KG FB80

let's talk contact page button

Future Automation FB49 Flat TV Mount Specifications

MODEL NO FB49
BOLT PATTERN (H) 500, 400, 300, 200, 100 (W) 800, 700, 600, 500, 400, 300, 200, 100
FINISH RAL 9005 BLACK (SATIN)
MARINE SUITABLE INDOOR ONLY
MAX DEPTH FROM WALL 30MM (1.18″)
MAX SCREEN DIMENSIONS LIMITED BY WEIGHT
MAX WEIGHT CAPACITY 70KG (154LBS)
MOVEMENT TYPE FIXED
OUTDOOR SUITABLE NO
PRODUCT DIMENSIONS 873 X 550 X 30MM (34.4 X 21.6 X 1.18″)
PRODUCT WEIGHT 7.5KG (16.5LB)
RECOMMENDED SCREEN SIZES 49″ – 80″

let's talk contact page buttontrading standards but with confidence logo

For more information on the FB49 TV Mount please see the links below.

Product Downloads

Product Presentation

Technical Sheet

Installation Instructions



Technical Picture & Dimensions of FB49 Flat TV Bracket
