Future Automation FSE90 Motorised TV Bracket

Description

FSE90 Motorised Articulated TV Wall Mount

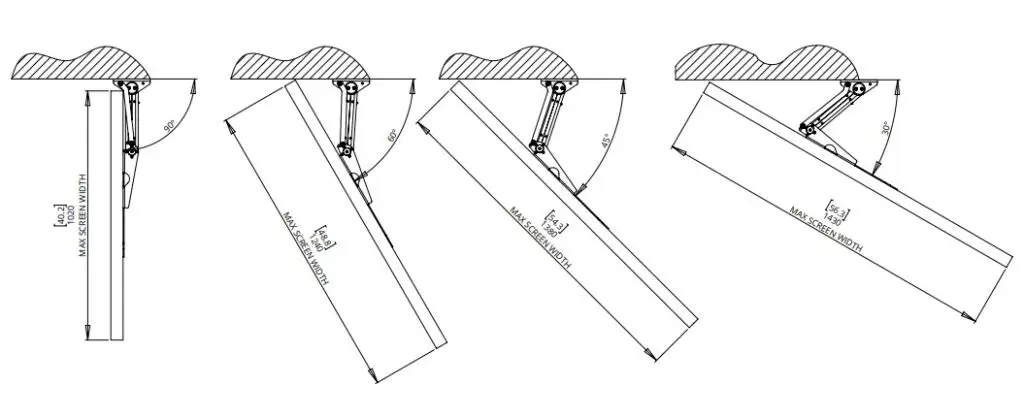

The Future Automation FSE90 motorised TV bracket was designed for smaller TVs, ranging from 23″ to 40″. The FSE90 provides a motorised articulation of 90 degrees rotation in one direction. They can be provided in either direction, clockwise and counterclockwise versions, depending on what way you wish the TV to turn when extended. Please take a look at our direction sheet for info. The maximum width of the TV to achieve the full 90-degree articulation is 1020mm, roughly 42″. A bigger screen can be used, but full articulation won’t be achieved. For larger screens, you could consider the PSE90 or the HSE90.

The FSE90 motorised articulating tv wall mount comes with a TV mounting plate that can accommodate Vesa TV mounting patterns up to 300 x 300. The bracket can support up to 30kg, so you can attach a sound bar using any of the Future Automation sound bar mounts. The mechanism, when fully extended, is 560mm to the centre of the screen; when the TV is fully folded back, it sits only 73mm from the wall. Complete with a TV mounting bolt kit and spacers, everything you need to attach the TV to the bracket is included. The side panels of the bracket detach easily, allowing access to run the TV cabling safely and securely through the mount arm out of sight.

The FSE90 ships with a sophisticated IR remote control that allows you to set a series of favourite positions. It’d be great if you want to watch TV from multiple positions. Unlike cheaper motorised mounts, the FSE90 uses metal gears that last and incorporates a near-silent motor system. This combined delivers an incredibly smooth experience as the FSE90 effortlessly folds your TV out into the room. Another great feature of the FSE90 motorised TV bracket is that it extends outward from the centre before rotating the TV, rather than hinging or swinging from one side. This makes the bracket perfect for recessed TVs or in media walls, as it won’t hit the sides and extends out past the recess depth.

Design Features

• Programmable Favourite viewing positions
• 560mm extension of the screen centre from the wall
• 90-degree articulation in one direction
• Cable management
• The mechanism can be reversed
• Super quiet and smooth action
