Future Automation HSE90 Motorised TV Wall Mount

Description

Future Automation HSE90 Motorised Articulated TV Wall Mount

The Future Automation HSE90 heavy-duty motorised TV mount is made for larger flat-screen TVs from 70″ upwards. The HSE90 elegantly rotates the TV up to 90 degrees in any one direction. They can be ordered in clockwise and counterclockwise directions, depending on the way you want the TV to rotate when fully extended. Please refer to our direction sheet for more information. The maximum width of the TV to achieve the full 90-degree articulation is 2200mm, circa 98″. A larger screen can be used; however, full 90-degree rotation won’t be possible. For instance, a 2600mm wide screen will rotate up to a maximum of 55 degrees. If you require any assistance, please don’t hesitate to contact us. We are always happy to help.

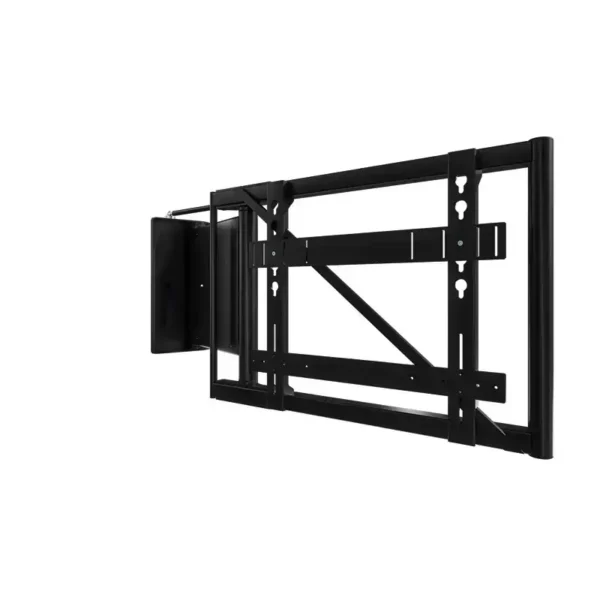

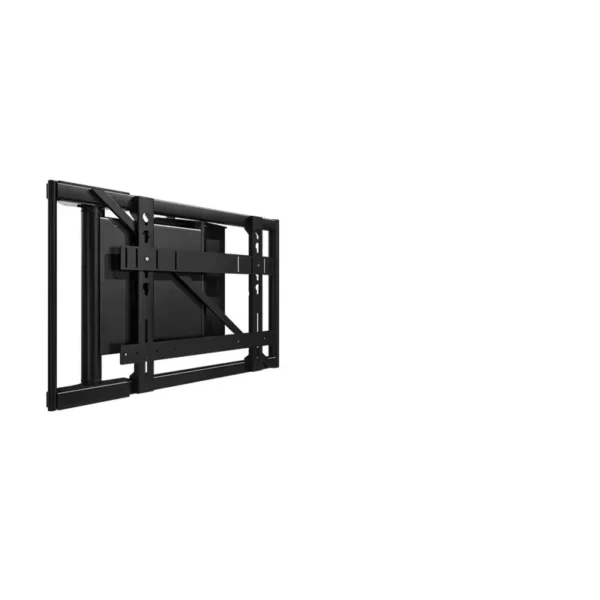

The HSE90 motorised articulating TV mount is designed to handle the largest screens and features a universal TV mounting plate that accommodates VESA TV mounting patterns up to 900 x 600 mm. The bracket can support up to 125kg, so no problem attaching a sound bar using any of Future Automation’s sound bar mounts. The Future Automation HSE90, when fully extended outward, is 1143mm to the centre of the screen. When the TV is fully folded back flat, it sits only 147mm from the wall. The HSE90 features a larger wall fixing plate and includes magnetic wall covers, offering a straightforward method for concealing all wall fixings. The bracket arms also have side covers that can be easily removed, allowing access to run cabling inside the bracket while keeping them hidden and safe. A TV mounting bolt kit and spacers are also provided, giving you everything needed to secure the TV to the motorised mount.

The Future Automation HSE90 motorised TV bracket ia a premium product that provides a super quiet rotation. This is achieved by the careful manufacturing of quality components that are designed to minimised friction and wear. A powerful motor and high quality gearbox provides a smooth judder free articulation between viewing angles. All this attention to detail provides a product with exceptional longevity they truly are built to last!

The HSE90 comes with an intelligent IR remote control that allows you to set a series of favourite positions. It’d be great if you want to watch TV from multiple positions. Unlike other motorised brackets that use plastic gears, the PSE90 only uses metal that lasts. This PSE90 also features a near-silent motor system. This delivers an incredibly smooth, effortless motion as the HSE90 folds your TV out into the room. Additionally, the HSE90 motorised TV bracket pushes the TV outward from the centre before rotating it, rather than swinging it from one side. This makes the wall mount perfect for recessed TVs or in media walls, where its design means the TV won’t hit the sides, allowing easy access behind the TV if needed.

Design Features

• Programmable Favourite viewing positions
• 1143mm extension of the screen centre from the wall
• 90-degree articulation in one direction
• Cable management
• The mechanism can be reversed
• Super quiet and smooth action
• Metal gears built to last
