Future Automation IP-PS40 Outdoor TV Mount
The Future Automation IP-PS40 is an Outdoor all-weather-proof TV bracket for mounting TVs from 40″ up to 75″ outside. Made from stainless steel and powder-coated, this TV bracket will not corrode or rust like others. Also available as an indoor mount the PS40.
The IP-PS40 allows the TV to be pulled out from the wall up to 400mm and then rotated in either direction. Full of installer-friendly features. The IP-PS40 can be used in humid indoor areas like saunas or swimming pools, and outdoors all year round. The unique scissor design provides a smooth action, making moving even heavy TVs very easy. Enhance your home with a wall-mounted TV in the garden with the IP-PS40.
£622.00
- Description
- Specifications
- Downloads
- Video & Pictures
- Q & A
- Reviews (0)
Description

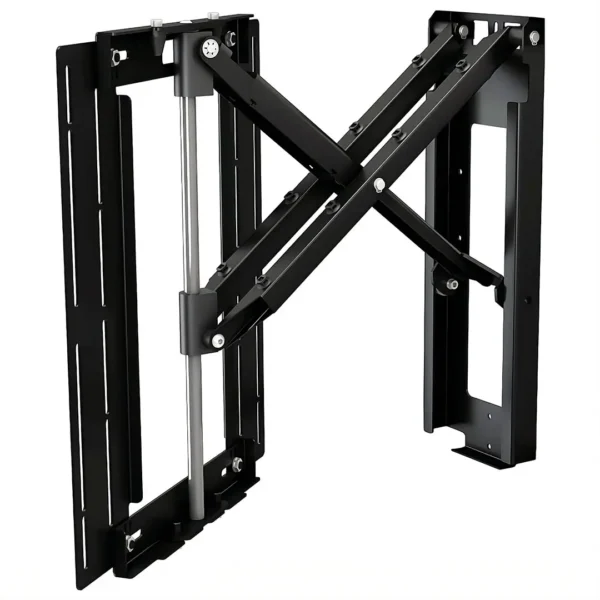

Future Automation IP-PS40 Outdoor TV Mount
Part of the outdoor range of TV brackets, the IP-PS40 is handmade in the UK from stainless steel, then powder-coated for a corrosion and rust-free installation. The IP-PS40 outdoor TV mount is suitable for use anywhere outside and in all weather. They can also be safely used indoors in high-humidity areas like swimming pools or jacuzzi areas. Garden TVs are becoming increasingly popular as people enhance their outdoor living spaces. The IP-PS40 is an articulated bracket that allows you to wall mount an outdoor TV, pull it away from the wall and rotate it in either direction. Enhance your home with a wall-mounted outdoor TV in the garden that can be moved for the perfect view.
The IP-PS40 outdoor TV mount is made for mounting TV screens from 40″ all the way up to 75″. An installation-friendly hook-on and off stainless steel universal mounting plate is provided, accommodating a maximum VESA mounting of 400 x 400. Outdoor TVs tend to be bulkier and much heavier, which is no problem for this mount, which can support up to 60KG. All cabling can be run up the arms of the TV bracket and secured using the built-in cable tie holders. Featuring a unique scissor design that is incredibly smooth, even big, heavy outdoor TVs can be moved with ease, single-handed. The IP-PS40 extends the TV forward up to 400 mm off the wall and offers rotation. For a 43″ TV, the maximum swing is 50 degrees both directions, for a 55″ the maximum swing is 38 degrees both directions, for a 65″ the maximum swing is 32 degrees both directions, for a 75″ the maximum swing is 27 degrees both directions, for larger screens it only serves as a service mount. When fully retracted, the IP-PS40 sits only 52 mm from the wall. This low-profile design makes it a great outdoor articulated TV mount.
| THE OUTDOOR TV MOUNT IS AVAILABLE IN A RANGE OF SIZES | ||||
|---|---|---|---|---|
| MODEL NO | APPROX TV SIZE | MAX EXTENSION | SWIVEL | MAX WEIGHT |
| IP-PS40 | 40 – 75″ | 400MM | UP TO 50° | 60KG |
| IP-PS55 | 55 – 75″ | 500MM | UP TO 50° | 60KG |
| IP-PS65 | 65 – 75″ | 595MM | UP TO 50° | 60KG |
| IP-PS80 | 80 – 110″ | 569MM | UP TO 45° | 120KG |
AV Installs Ltd also offers a comprehensive range of Installation Services. Give us a call today on 0800 669 6600
Future Automation IP-PS40 Outdoor TV Mount Specifications.
| PRODUCT CODE | IP-PS40 |
|---|---|
| BOLT PATTERN | (H) 400, 300, 200, 100 (W) 400, 300, 200, 100 |
| CABLE MANAGEMENT | IN-BUILT CABLE TIE ANCHORS & CABLE TIES INCLUDED |
| FINISH | RAL 9005 BLACK (SATIN) – CUSTOM AVAILABLE |
| MARINE SUITABLE | NO |
| MAX EXTENSION FROM WALL | 400MM (15.7″) |
| MAX ROTATION | UP TO 50° EACH WAY (SCREEN WIDTH DEPENDENT) |
| MAX SCREEN DIMENSIONS | LIMITED BY WEIGHT AND DESIRED ROTATION ANGLE |
| MAX WEIGHT CAPACITY | 60KG (132LBS) |
| MIN DEPTH FROM WALL | 54MM (2 1/8″) |
| MOVEMENT TYPE | MANUAL |
| OUTDOOR SUITABLE | YES |
| PRODUCT DIMENSIONS | 430 X 513 X 54MM (16.9 X 20.2 X 2.1″) |
| RECOMMENDED SCREEN SIZES | 40″ – 75 |
For more information on the IP-PS40 outdoor TV bracket please see the links below.
Product Downloads

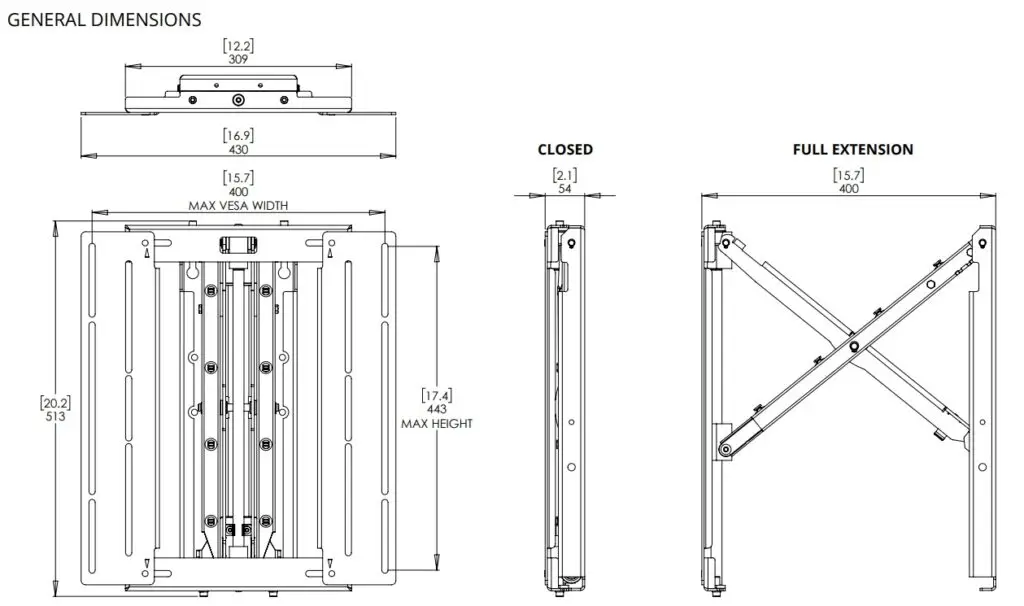

Technical Picture & Dimensions of IP-PS40 All Weather TV Wall Mount.
