Future Automation IP-PS55 Outdoor TV Wall Mount
The Future Automation IP-PS55 is an all-weather-proof, outdoor TV bracket for wall mounting TVs from 55″ up to 75″ outside. Manufactured from stainless steel, then powder-coated, protecting it from the elements and ensuring that it will not rust or corrode. The IP-PS55 is a pull-out and rotate bracket that extends up to 400mm from the wall, then rotates in either direction. Packed with design features that make installation easy, like the easy hook-on and off stainless steel TV mounting plate. Also, built-in cable tie anchors allow the cables to be secured to the arms of the mount for a neat finish. The IP-PS55 can be used in humid indoor areas like saunas or swimming pools, and outdoors all year round. The unique scissor design makes moving even the heaviest TVs very easy, single-handed. Enhance your outdoor entertainment space with a garden TV mounted on a wall with an IP-PS55 outdoor TV bracket.
£775.00
- Description
- Specifications
- Downloads
- Video & Pictures
- Q & A
- Reviews (0)
Description
Future Automation IP-PS55 Outdoor TV Mount
Part of the outdoor range of TV brackets, the IP-PS55 is handmade in Britain from stainless steel, then powder-coated in black for a corrosion and rust-free installation. The IP-PS55 outdoor TV wall mount is suitable for use in all weather, anywhere outside. They can also be safely used indoors in high-humidity areas like swimming pools or jacuzzi areas. Garden TVs are becoming increasingly popular as people enhance their outdoor living spaces. The IP-PS55 is an articulated TV bracket that allows you to wall mount an outdoor TV, pull it away from the wall and turn it in both directions. Enhance your home with a wall-mounted outdoor TV in the garden that can be moved for the perfect view.
The IP-PS55 outdoor TV wall mount is made for mounting TV screens from 55″ all the way up to 75″. An installation-friendly hook-on and off stainless steel universal mounting plate is provided, accommodating a maximum VESA mounting of 500 x 400. Outdoor TVs tend to be bulkier and much heavier, which is no problem at all for the IP-PS55, which can support up to 60KG. All cabling can be run up the arms of the TV bracket and secured using the built-in cable tie holders. Featuring a unique scissor design that is incredibly smooth, even big, heavy outdoor TVs can be moved with ease, single-handed. The IP-PS55 extends the TV forward up to 500 mm off the wall and offers rotation. For a 55″ TV, the maximum swing is 50 degrees in both directions, for a 65″ the maximum swing is 40 degrees in both directions, for a 75″ the maximum swing is 35 degrees in both directions, for larger screens, it only serves as a service mount. When fully retracted, the IP-PS55 sits just 52 mm from the wall. The low-profile design makes it a great outdoor on the wall articulated TV mount
| THE OUTDOOR TV MOUNT IS AVAILABLE IN A RANGE OF SIZES | ||||
|---|---|---|---|---|
| MODEL NO | APPROX TV SIZE | MAX EXTENSION | SWIVEL | MAX WEIGHT |
| IP-PS40 | 40 – 75″ | 400MM | UP TO 50° | 60KG |
| IP-PS55 | 55 – 75″ | 500MM | UP TO 50° | 60KG |
| IP-PS65 | 65 – 75″ | 595MM | UP TO 50° | 60KG |
| IP-PS80 | 80 – 110″ | 569MM | UP TO 45° | 120KG |
AV Installs Ltd also offers a comprehensive range of Installation Services. Give us a call today on 0800 669 6600
Future Automation IP-PS55 Outdoor TV Wall Mount Specifications.
| PRODUCT CODE | IP-PS55 |
|---|---|
| BOLT PATTERN | (H) 500, 400, 300, 200, 100 (W) 400, 300, 200, 100 |
| CABLE MANAGEMENT | IN-BUILT CABLE TIE ANCHORS & CABLE TIES INCLUDED |
| FINISH | RAL 9005 BLACK (SATIN) – CUSTOM AVAILABLE |
| MARINE SUITABLE | NO |
| MAX EXTENSION FROM WALL | 500MM (19.7″) |
| MAX ROTATION | UP TO 50° EACH WAY (SCREEN WIDTH DEPENDENT) |
| MAX SCREEN DIMENSIONS | LIMITED BY WEIGHT AND DESIRED ROTATION ANGLE |
| MAX WEIGHT CAPACITY | 60KG (132LBS) |
| MIN DEPTH FROM WALL | 54MM (2 1/8″) |
| MOVEMENT TYPE | MANUAL |
| OUTDOOR SUITABLE | YES |
| PRODUCT DIMENSIONS | 430 X 633 X 54MM (16.9 X 24.9 X 2.1″) |
| RECOMMENDED SCREEN SIZES | 55″ – 75″ |
For more information on the IP-PS55 outdoor TV bracket please see the links below.
Product Downloads

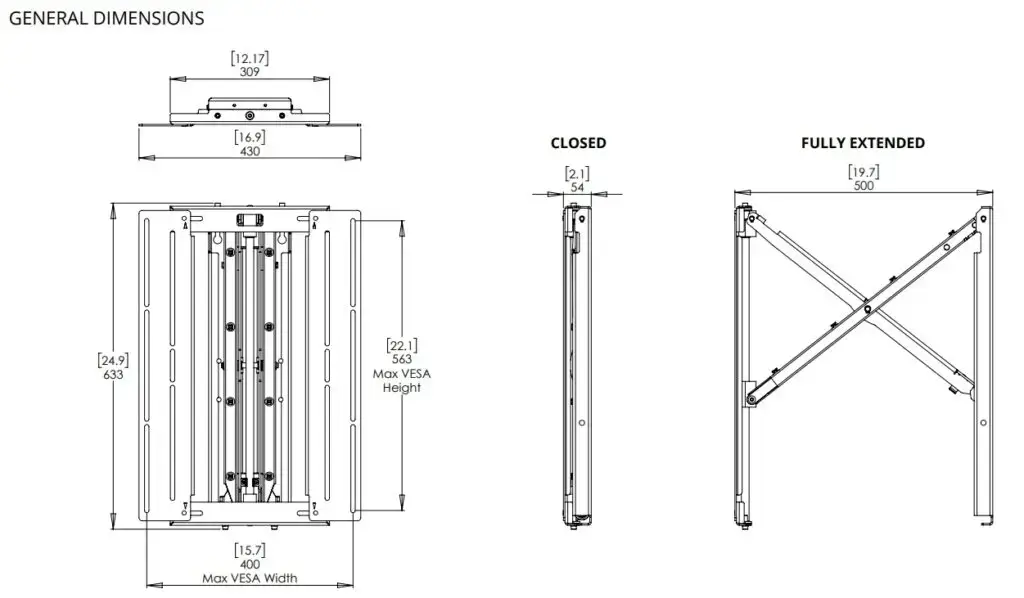

Technical Picture & Dimensions of IP-PS55 Garden TV mount
