Future Automation IP-PS65 Outdoor TV Bracket
The Future Automation IP-PS65 is an Outdoor all-weather-proof TV bracket for mounting TVs from 65″ up to 85″ anywhere outside. Made from stainless steel and then powder-coated, this TV bracket will never corrode or rust like others. The IP-PS65 allows a flat screen TV to be extended from the wall up to 595mm and then rotated in both directions. Packed with installer-friendly features like an easy hook-on and off stainless steel TV mounting plate. Along with in-built cable tie anchors, allowing the cables to be routed on the bracket arms for a neat finish. The IP-PS65 can be used in humid indoor areas like saunas or swimming pools, and outdoors all year round. The unique scissor design provides a smooth action, making moving even the heaviest TVs very easy. Enhance your home with a wall-mounted Garden TV.
Original price was: £1,039.99.£935.99Current price is: £935.99.
- Description
- Specifications
- Downloads
- Video & Pictures
- Q & A
- Reviews (0)
Description
Future Automation IP-PS65 Outdoor TV Bracket 65″ to 85″
Part of the outdoor range of TV brackets, the IP-PS65 is handmade in Britain from stainless steel, then powder-coated for a corrosion and rust-free TV installation. The IP-PS65 outdoor TV mount is suitable for use anywhere outside and in all weather. They can also be safely used indoors in high-humidity areas like swimming pools or jacuzzi areas. Garden TVs are becoming increasingly popular as people enhance their outdoor living spaces. The IP-PS65 is an articulated bracket that allows you to wall mount an outdoor TV, pull it away from the wall and rotate it in either direction. Enhance your home with a wall-mounted outdoor TV in the garden that can be moved for the perfect view.
The IP-PS65 outdoor TV mount is designed for mounting TV screens from 65″ to 85″. Larger screens can be mounted with less articulation. An installation-friendly hook-on and off stainless steel universal mounting plate is provided, accommodating a maximum VESA mounting of 600 x 600. Outdoor TVs tend to be bulkier and much heavier, which is not a problem for the IP-PS65, which can support up to 60KG. All cabling can be run up the TV bracket arms and secured using the built-in cable tie holders. Featuring a unique scissor design that is incredibly smooth, even big, heavy outdoor TVs can be moved with ease, single-handed. The IP-PS65 extends the TV forward up to 595 mm off the wall and offers rotation. For a 65″, the maximum swing is 32 degrees in both directions, for a 75″, the maximum swing is 43 degrees in both directions, and for an 85″, the maximum swing is 32 degrees in both directions. For larger screens, it only serves as a service mount. When fully retracted, the IP-PS65 sits only 80 mm from the wall. This low-profile design makes it a great outdoor articulated TV mount.
| THE OUTDOOR TV MOUNT IS AVAILABLE IN A RANGE OF SIZES | ||||
|---|---|---|---|---|
| MODEL NO | APPROX TV SIZE | MAX EXTENSION | SWIVEL | MAX WEIGHT |
| IP-PS40 | 40 – 75″ | 400MM | UP TO 50° | 60KG |
| IP-PS55 | 55 – 75″ | 500MM | UP TO 50° | 60KG |
| IP-PS65 | 65 – 75″ | 595MM | UP TO 50° | 60KG |
| IP-PS80 | 80 – 110″ | 569MM | UP TO 45° | 120KG |
AV Installs Ltd also offers a comprehensive range of Installation Services. Give us a call today on 0800 669 6600
Future Automation IP-PS65 Outdoor TV Bracket Specifications.
| PRODUCT CODE | IP-PS65 |
|---|---|
| BOLT PATTERN | (H) 600, 500, 400, 300, 200, 100 (W) 400, 300, 200, 100 |
| CABLE MANAGEMENT | IN-BUILT CABLE TIE ANCHORS & CABLE TIES INCLUDED |
| FINISH | RAL 9005 BLACK (SATIN) – CUSTOM AVAILABLE |
| MARINE SUITABLE | NO |
| MAX EXTENSION FROM WALL | 595MM (23.4″) |
| MAX ROTATION | UP TO 50° EACH WAY (SCREEN WIDTH DEPENDENT) |
| MAX SCREEN DIMENSIONS | LIMITED BY WEIGHT AND DESIRED ROTATION ANGLE |
| MAX WEIGHT CAPACITY | 60KG (132LBS) |
| MIN DEPTH FROM WALL | 80MM (3 3/32″) |
| MOVEMENT TYPE | MANUAL |
| OUTDOOR SUITABLE | YES |
| RECOMMENDED SCREEN SIZES | 65″ – 75″ |
For more information on the IP-PS65 TV wall mount please see the following links.
Product Downloads

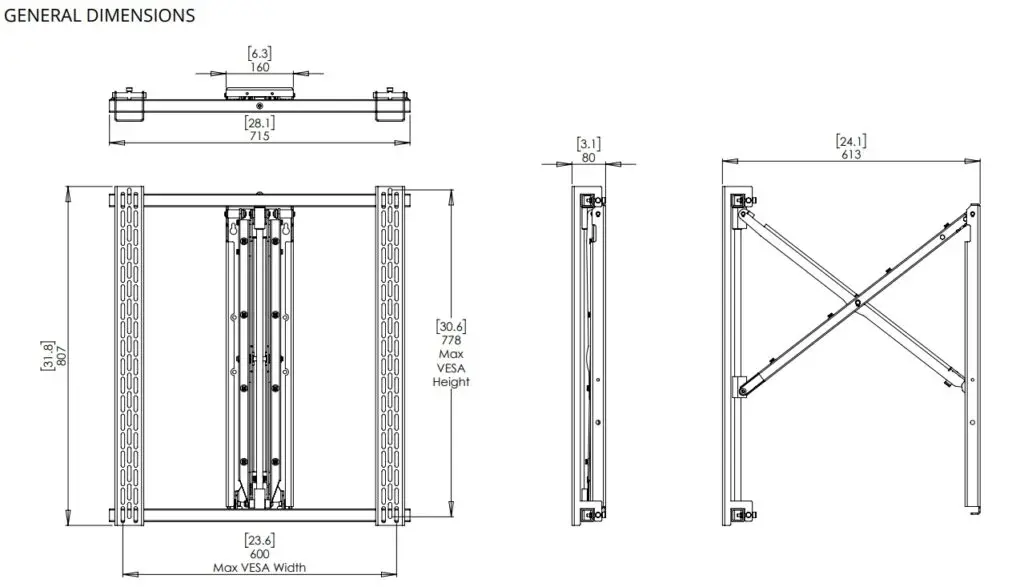

Technical Picture & Dimensions of IP-PS65
