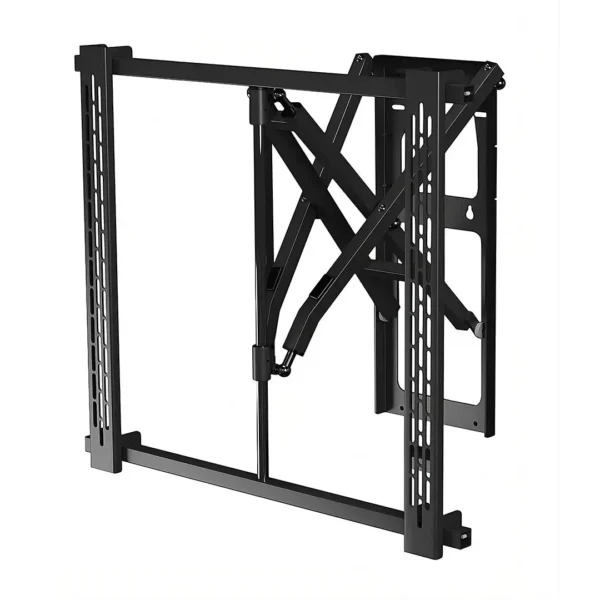

Future Automation IP-PS80 Outdoor TV Wall Bracket
The Future Automation IP-PS80 is a heavy-duty, all-weather-proof, outdoor TV bracket for wall mounting large TVs from 85″ up to 120″ anywhere outside. Manufactured from high-grade stainless steel and then powder-coated, protecting it from the elements and ensuring that it will not rust or corrode. The IP-PS80 is a pull-out and rotate bracket that extends up to 569mm from the wall, then provides rotation in both directions. Packed with clever features that make installation easier, like the easy hook-on and off stainless steel TV mounting plate. Also, built-in cable tie anchors allow the cabling to be secured to the arms of the mount for a neat finish. The IP-PS80 can even be used in humid indoor areas like saunas or swimming pools, and outdoors all year round. The unique scissor design makes moving even the heaviest TVs very easy, single-handed. Enhance your outdoor entertainment space with a garden TV wall-mounted with an IP-PS80 outdoor TV bracket for large TVs.
Original price was: £1,575.00.£1,417.50Current price is: £1,417.50.
- Description
- Specifications
- Downloads
- Q & A
- Video & Pictures
- Reviews (0)
Description
Future Automation IP-PS80 Heavy Duty Outdoor TV Wall Bracket 85″ to 120″
Part of the outdoor range of TV brackets, the IP-PS80 is handmade in Britain from stainless steel, then powder-coated in black for a corrosion and rust-free installation. The IP-PS80 outdoor TV wall bracket is suitable for use in all weather, anywhere outside. They can even be safely used indoors in high-humidity areas like swimming pools or jacuzzi areas. Garden TVs are becoming increasingly popular as people enhance their outdoor living spaces. The IP-PS80 is an articulated TV wall mount that allows you to wall hang an outdoor TV on the wall, pull it away and rotate it in both directions. Enhance your home with a wall-mounted outdoor TV in the garden that can be easily repositioned for the perfect view.
The IP-PS80 outdoor TV wall bracket is a heavy-duty mount for hanging the largest outdoor TVs from 85″ up to 120″. An installation-friendly hook-on and off stainless steel universal mounting plate is provided, accommodating a maximum VESA mounting of 800 x 700. Large Outdoor TVs are bulkier and much heavier, which is no problem for the IP-PS80, which can support up to a massive 120KG. All cabling can be run up the arms of the TV bracket and secured using the built-in cable tie holders. Featuring a unique scissor design that is incredibly smooth, even big, heavy outdoor TVs can be moved with ease, single-handed. The IP-PS80 extends the TV forward up to 569 mm off the wall and offers rotation. For an 80″ TV, the maximum swing is 38 degrees in both directions; for a 110″ TV, the maximum swing is 28 degrees in both directions; for larger screens, it only serves as a service mount. When fully retracted, the IP-PS80 sits just 84 mm from the wall. The low-profile design makes it a great outdoor on the wall articulated TV mount for large, heavy screens.
| THE OUTDOOR TV MOUNT IS AVAILABLE IN A RANGE OF SIZES | ||||
|---|---|---|---|---|
| MODEL NO | APPROX TV SIZE | MAX EXTENSION | SWIVEL | MAX WEIGHT |
| IP-PS40 | 40 – 75″ | 400MM | UP TO 50° | 60KG |
| IP-PS55 | 55 – 75″ | 500MM | UP TO 50° | 60KG |
| IP-PS65 | 65 – 75″ | 595MM | UP TO 50° | 60KG |
| IP-PS80 | 80 – 110″ | 569MM | UP TO 45° | 120KG |
AV Installs Ltd also offers a comprehensive range of Installation services. Give us a call today on 0800 669 6600
Future Automation IP-PS80 Outdoor TV Wall Bracket Specifications.
| PRODUCT CODE | IP-PS80 |
|---|---|
| BOLT PATTERN | (H) 800, 700, 600, 500, 400, 300, 200, 100 (W) 700, 600, 500, 400, 300, 200, 100 |
| CABLE MANAGEMENT | IN-BUILT CABLE TIE ANCHORS & CABLE TIES INCLUDED |
| FINISH (CUSTOM AVAILABLE) | RAL 9005 BLACK (SATIN) – CUSTOM AVAILABLE |
| MARINE SUITABLE | NO |
| MAX ROTATION | UP TO 45° EACH WAY (SCREEN WIDTH DEPENDENT) |
| MAX SCREEN DIMENSIONS | LIMITED BY WEIGHT AND DESIRED ROTATION ANGLE |
| MAX WEIGHT CAPACITY | 120KG (265LBS) |
| MIN DEPTH FROM WALL | 84MM (3.3″) |
| MOVEMENT TYPE | MANUAL |
| OUTDOOR SUITABLE | YES |
| SCREEN SIZES (APPROX) | 80″ – 110″ |
For more information on the IP-PS80 Outdoor TV Mount please see the links below.
Product Downloads
Q & A
Ask a question
Future Automation IP-PS80 Outdoor TV Wall Bracket
Your question
* Question is required
Name
* Name is required
Email
* Email is required
* Please tick the checkbox to proceed
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
There are no questions yet
Technical Picture & Dimensions of IP-PS80
