Future Automation PDR-RES Projector Lift
The Future Automation PDR-RES Projector Lift is the ultimate lift for residential ceilings. Featuring a unique plaster in housing providing seamless integration in the ceiling, with no visible bezel or trim. The projector lift comes in two sizes, catering for the most popular home cinema projectors. The PDR2-RES is designed to cater for projectors up to 420mm W x 476mm L x 214mm H with a max weight of 15KG. Also, the PDR3-RES is designed to cater for projectors up to 560mm W x 650mm L x 235mm H with a max weight of 45KG. The unique two-stage installation system simplifies the process. A moisture-resistant MDF housing and cabling are installed at first fix. When the ceiling is finished, the projector lifts slots into the housing and locks in place. The PDR-RES is supplied with an IR remote control and a cable management track for safely routing cabling.
- Description
- Product Video
- Specifications
- Downloads
- Projector Sizes
- Q & A
- Reviews (0)
Description
Future Automation PDR-RES Residential Ceiling Projector Lift
The Future Automation PDR-RES projector lift is a brand-new product designed for seamless integration into residential plasterboard ceilings. The projector lift is provided in two parts. Firstly, a moisture-resistant MDF housing is installed in the ceiling along with all the cabling. Now that the housing is in place, the ceiling can be boarded, plastered, and decorated. Now that the ceiling is finished, the projector lifts into the housing securely, locking in place. Finally, you can fit the projector and cabling along with the supplied cover plate, which can be painted to match the ceiling. The PDR-RES projector lift blends seamlessly with the ceiling, leaving only a 3mm shadow gap with no visible trims or bezels. This unique two-stage installation also protects the projector lift from any dust or damage during the construction phase.
The PDR-RES projector lift is supplied in 2 sizes, the PDR2 & PSR3. Designed to accommodate the most popular home cinema projectors on the market. Both models use brushed aluminium scissors on both sides and the back of the lift, providing additional stability and featuring a near-silent motor system with dead stops that can be adjusted for the perfect installation. A control box is included, offering RS232, contact closure and an IR remote control, allowing integration with most third-party control systems. An optional RF remote control is also available if this is being used as a standalone unit.
PDR2-RES lift
The PDR2-RES is suitable for smaller home cinema projectors with maximum dimensions of—width 420MM x Depth 476MM x Height 214MM and a maximum total weight of 15KG. The PDR2-RES projector lift is available with three total drop options of 400MM, 700 mm, and 940 mm. The PDR2 has a minimum built-in height requirement of 263MM from the finished ceiling and also features a manual tilt function for low ceilings.
PDR3-RES lift
The PDR3-RES is suitable for larger home cinema projectors with maximum dimensions of—width 560MM x Depth 650MM x Height 235MM and a maximum total weight of 45KG. The PDR3-RES projector lift is available with two total drop options of 740MM & 1200MM. The PDR3 has a minimum built-in height requirement of 295MM from the finished ceiling.
| THE PDR-RES AVAILABLE SIZES | |||
|---|---|---|---|
| MODEL NO | MAX PROJECTOR SIZE | MAX WEIGHT | AVAILABLE DROPS |
| PDR2-RES | Width 420MM x Depth 476MM x Height 214MM | 15KG | 400MM, 700MM & 940MM |
| PDR3-RES | Width 560MM x Depth 650MM x Height 235MM | 45KG | 740MM & 1200MM |
| PDR-RES-CUSTOM | VARIABLE | VARIABLE | VARIABLE |
There are other models in the PDR-RES projector lift range for specific projector manufacturers. Please see the links below. Anything else, please contact us for a custom quote.
PDR-COM is designed for integration into commercial suspended ceilings or as an alternative to the plaster in the edge model
PDR-BARCO projector lifts for the Barco range of home cinema projectors
PDR-SONY projector lifts for the SONY range of home cinema projectors
If you need any help specifying the correct projector lift or would like trade pricing, contact us. Our friendly staff are always happy to help.
Future Automation PDR-RES Product Presentation & Installation Video
Future Automation PDR-RES Projector LIft Specifications.
| PRODUCT CODE | PDR2-RES | PDR3-RES |
|---|---|---|
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR |
| DEPTH WITHIN FINISHED CEILING | 263MM (10 3/8″) | 295MM (11 5/8″) |
| SUGGESTED PROJECTOR SIZE | W 420MM x D 476MM x H 214MM | W 560MM x D 650MM x H 235MM |
| MAX TRAVEL FROM FINISHED CEILING | 400MM (15 3/4″) – STANDARD 700MM (27 1/2″) – AVAILABLE 940MM (37 37″) – AVAILABLE |
740MM (29 1/8″) – STANDARD 1200MM (47 1/4″) – AVAILABLE |
| MAX WEIGHT | 15KG (33LBS) | 45KG (99LBS) |
| MOVEMENT TYPE | MOTORISED | MOTORISED |
| POWER CONSUMPTION (MAX) | 120W | 120W |
| POWER CONSUMPTION (STANDBY) | 3W | 3W |
| POWER SUPPLY | 110V – 240V AC | 110V – 240V AC |
| TILT | AVAILABLE | N/A |
For more information on the PDR-RES residential projector lift please see below.
Product Downloads
PDR2-RES Product Specifications
PDR3-RES Product Specifications
PDR-RES Installation Instructions

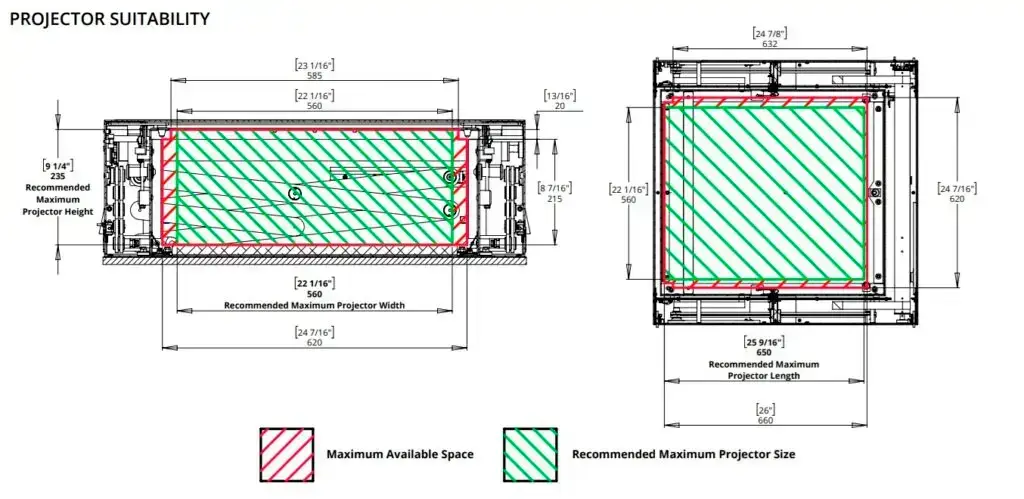

Picture Of Projector Size Suitability PDR-RES Projector Lifts.
PDR2-RES Projector Lift Residential
PDR3-RES Projector Lift Residential
