PIC Lightweight Picture Lift Mechanism
The Future Automation PIC is a motorised picture lift mechanism used to raise artwork, revealing a recessed, hidden TV behind. They can also be used to hide in wall safes or other auxiliary home cinema equipment. Complete with a remote control, the press of a button gently raises your framed picture out of the way, revealing the TV. When you are done watching TV the artwork slides back down hiding your TV out of sight. The PIC lift comes in three standard models catering for TV screens up to 60″ or a maximum travel of 860mm; bespoke lifts for larger screens are available on request. The PIC lift is a simple solution to hiding a TV when it’s not in use. They can be used to raise or, in reverse, lower artwork.
- Description
- Specifications
- Downloads
- Video & Pictures
- Q & A
- Reviews (1)
Description
Future Automation Motorised Picture Lift
The Future Automation PIC lift is a simple and creative way to conceal a flat-screen TV behind a painting or picture. The TV and PIC lift are both recessed into the wall, allowing a piece of artwork to slide up and down to reveal a hidden TV behind. The PIC lift can be used to raise a picture above the TV or, in reverse, to lower the picture under the TV. The artwork lift comes in three standard models, suitable for TVs from 40″ to 60″. The PIC lift is designed for lightweight canvases or framed pictures not exceeding 10kg in total weight. For heavier-framed pictures or mirrors, a heavy-duty version is available, called the PICH.
Picture lifts are ideal for traditional and modern living spaces, and can be integrated into media walls with relative ease. Add that wow factor and enhance your living space with an automated picture lift hidden TV. AV installs provides installation services and can assist customers and other installers with the initial planning and design of their projects. AV installs can also offer a bespoke canvas printing and framing service ensuring that your picture perfectly fits the PIC lift contact us for more info.
| PRODUCT | MAX TRAVEL | MAX PICTURE WEIGHT |
|---|---|---|
| PIC1 | 560mm | 10KG |
| PIC2 | 710mm | 10KG |
| PIC3 | 860mm | 10KG |
| PIC-BESPOKE | custom | 10KG |
The PIC lift is designed to be used with the TV recessed into the wall and holds the artwork just 10mm from the wall. This helps to keep everything well hidden and avoid any obstructions during travel. The mechanism motor provides a near-silent, smooth operation, making it ideal for residential and commercial installations. With adjustable travel strokes, the installer can programme the exact position of the lift.
Included with the picture lift is an IR remote control, along with RS232 and contact closure control, enabling easy integration to any existing home automation control system. An RF remote is also available, ideal if this pic lift is being used as a standalone system. The motorised picture lift can be configured to raise or lower artwork, depending on the available wall space for the artwork to move into.
AV Installs Ltd also offers complete installation services for the vertical moving artwork lift and can also assist customers with printing and original artwork if required. If you’re looking to hide your television behind moving artwork, call AV Installs today on 0800 669 6600
Future Automation PIC artwork lift mechanism specifications
| PRODUCT CODE | PIC1 | PIC2 | PIC3 | PIC-BESPOKE |
|---|---|---|---|---|
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
| DECIBEL RATING | 46DB | 46DB | 46DB | VARIABLE |
| DEPTH WITHIN WALL | 70MM (2.75″) | 70MM (2.75″) | 70MM (2.75″) | VARIABLE |
| FINISH (CUSTOM AVAILABLE) | BLACK PAINT – RAL 9005 | BLACK PAINT – RAL 9005 | BLACK PAINT – RAL 9005 | BLACK PAINT – RAL 9005 |
| MAX TRAVEL OF PANEL | 560MM (22.04″) | 710MM (27.95″) | 860MM (33.85″) | REQUIRED DISTANCE |
| MAX WEIGHT OF PANEL | 10KG (22LBS) | 10KG (22LBS) | 10KG (22LBS) | 10KG (22LBS) |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED | MOTORISED |
| POWER CONSUMPTION | 110W | 110W | 110W | VARIABLE |
| POWER CONSUMPTION (STANDBY) | 3W | 3W | 3W | VARIABLE |
| POWER SUPPLY | 240V OR 110V | 240V OR 110V | 240V OR 110V | 240V OR 110V |
For more information on the PIC lift please see the links below.
Product Downloads

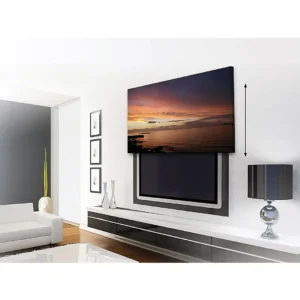

Example of Vertical Panel Lift Movement Revealing A TV.
With a press of a button the artwork smoothly rises or lowers to reveal the flat screen TV hidden behind behind the picture.
Q & A
Ask a question
PIC Lightweight Picture Lift Mechanism
Your question
* Question is required
Name
* Name is required
Email
* Email is required
* Please tick the checkbox to proceed
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
There are no questions yet
1 review for PIC Lightweight Picture Lift Mechanism
Add a review
You must be logged in to post a review.
