Future Automation PLF Out Of Floor TV Lift

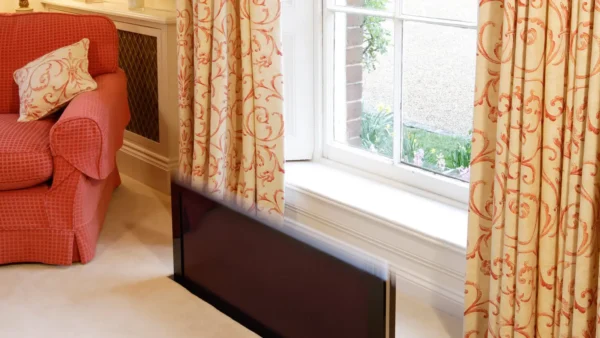

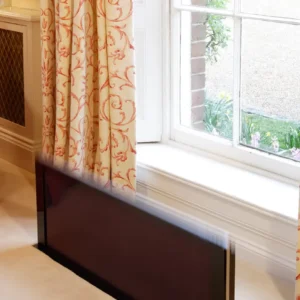

The PLF is a state-of-the-art TV lifting system that raises a TV out of the floor to watch and lowers it into the floor to hide it away. With the press of a button, the floor opens up, and the TV rises smoothly from the floor to its desired pre-set viewing position. The TV is fixed to a stainless steel pole, and a baseboard fills in the gap on the floor when the TV is elevated. Suitable for Screen sizes from 32″ to 85″. The PLF is made to fit your specific screen size. The lift comes in two parts: the drop roll lid mechanism for operating the flap and the main lift for lifting the TV out of the floor. When the TV is hidden in the floor, the top flap can support a person and can be walked over
- Description
- Specifications
- Downloads
- Videos & Pictures
- Q & A
- Reviews (0)
Description
Future Automation PLF Out Of Floor TV Lift Mechanism

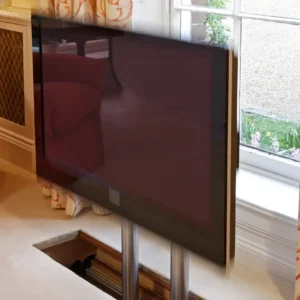

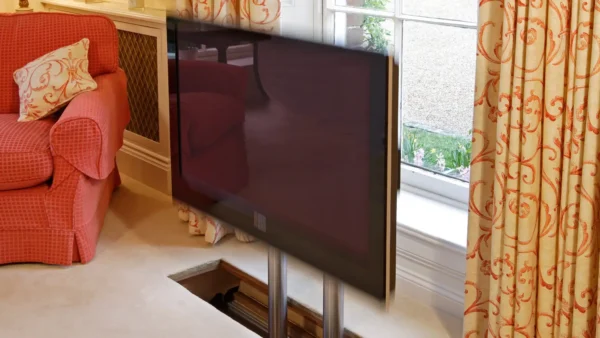

The Future Automation PLF lift mechanism is designed to allow users to hide their TV in the floor when not in use. With the press of a button, a custom flap retracts into the floor and rolls out of the way. The TV then smoothly rises out of the floor on a beautiful stainless steel pole. A base plate raises with the TV and fills the hole in the floor. They are made to order for your specific screen size, ranging from 32″ to 85″. This helps to keep the built-in height required in the floor to a minimum for your screen size.
The PLF out of the Floor TV Lift is supplied in two parts. An electric flap mechanism which operates the lid and the primary lift mechanism for lifting the TV. They are custom-made to order for your screen, available in sizes ranging from 32″ to 85″. Future Automations’ unique drop roll lid can be walked over when the TV is hidden in the floor. The action is smooth, quiet, and controlled via a remote control or a third-party control system. The out-of-floor TV lift comes complete with a cable management system for safely routing all the cables.
Additional information on the floor TV lift
The PLF-DRL & PLF-BE TV lifts come complete with an IR remote and can be controlled by RS232, contact closure, making it fully compatible with home automation control systems. Also available is an RF remote option, which will allow the lift to operate remotely out of line of sight. This is a handy addition if the unit is being used as a standalone without a control system.
The design of the PLF TV lift truly offers a significant wow factor and is genuinely one of the most luxurious solutions for concealing a flat-screen TV. They are perfect if your house has an existing cellar or can be lowered from upstairs down into a custom-made cabinet. If you have nowhere else to hide a flat screen, lifting a TV out of the floor could be a solution for you.
The Lift and lid mechanisms both need to be recessed into a waterproof enclosure within the floor, along with the control box. Full instructions are provided with the lift to help with installation
PLF Lift Design Features
- Drop Roll Lid Or Box Enclosure
- screen sizes up to 85″
- 500mm Stainless Steel pole TV Stand
- Cable Management
- Remote Control
- Max weight 120kg
- Made to order
There is also a PLF-S version that can lift a TV from the floor and rotate it 180 degrees in both directions.
If you would like to talk to someone about any technical questions or need help deciding which lift mechanism would be suitable, please call 0800 669 6600
| PRODUCT CODE | PLF-DRL | PLF-BE |
|---|---|---|
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
| DECIBEL RATING | 52DB | 52DB |
| MAX WEIGHT | 120KG (265LBS) | 120KG (265LBS) |
| MOVEMENT TYPE | MOTORISED | MOTORISED |
| SCREEN SIZES | 32″ to 85″ | 32″ to 85″ |
| POWER SUPPLY | 240V OR 110V | 240V OR 110V |
For more information on the PLF please see the links below.
Product Downloads
PLF Out Of Floor TV Lift Video
