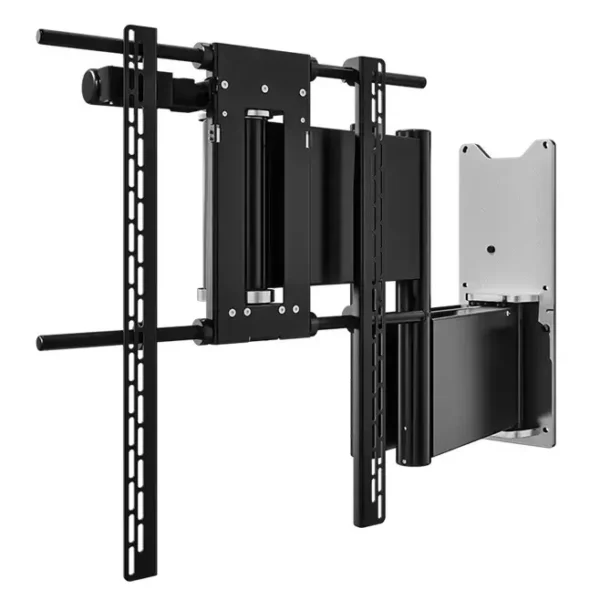

Future Automation QA2-60 Motorised Articulated TV Mount
The Future Automation QA2-60 is an award winning motorised TV mount considered the gold standard, Rolls Royce of the industry, hand made in the UK and built to last. It is a motorised quad arm tv bracket for larger TV screens from 65″ right they way up to 85″. larger screens can be used but full articulation won’t be achieved. The QA2-60 articulated mount can extend a large TV out from the wall and then turn it up to 75 degrees in either direction. The stand out feature of the QA2-60 is that it can turn a TV in either direction, making it ideal for long galley style kitchen diners, or open plan living spaces. A near silent motor system and an all metal gearbox reduces wear and vibration, delivering an effortless smooth motion supporting up to 80KG. An intelligent IR remote control allows favourite positions to be saved and recalled when required, perfect for multiple viewing positions. If you are looking for a reliable motorised TV mount for a large TV that will last beyond a few years the QA2-60 is the go to choice for Pro AV Installer’s and Smart Home Integrators worldwide.
Model: QA2-60
- Description
- Specifications
- Downloads
- Videos & Pictures
- Q & A
- Reviews (0)
Description
Future Automation QA2-60 Motorised Two-Way Articulating TV Mount
The Future Automation QA2-60 is a heavy-duty two-way motorised TV bracket made for flat screen TVs from 65″ up to 85″. The QA2-60 effortlessly extends the TV forward, away from the wall, then rotates the TV up to 75 degrees in either direction. Incredibly, the QA2-60 can support a massive 80KG, so no issues attaching a soundbar bracket that will move and turn along with the TV. Installer-friendly, the QA2-60 TV mount comes equipped with an easy hook-on TV mounting plate, accommodating a maximum VESA mounting pattern of 800 x 700. For larger screens, the HQA2 is available.
THE QUAD ARM QA2 IS AVAILABLE IN DIFFERENT MODELS | |||
---|---|---|---|
APPROX TV SIZE | MAX WEIGHT | MAX EXTENSION | MODEL NO |
42″ – 60″ | 45KG | 750MM | QA2 |
60″ – 85″ | 80KG | 910MM | QA2-60 |
80″ to 110″ | 150KG | 843MM | HQA2 |
The QA2-60 motorised articulating TV mount is precision-engineered from the finest materials. Its heavy-duty, robust design is incredibly strong and is one of the only TV brackets that can rotate larger TV screens in both directions. The QA2-60 takes the work out of manually moving larger, heavier TVs. They are very well suited to recessed TV installations or in media walls. Additionally, this TV mount is suitable for kitchen diners, open-plan living spaces, or other areas where you want to watch TV from multiple locations—loved by professional AV installers & Smart home integrators all over the world. The QA2 is an award-winning articulating TV Bracket and has been given the prestigious CEDIA Hall of Fame award.
The QA2-60 is packed with innovative, installer-friendly features, such as easily detachable side covers. These allow easy access so the cabling can be run inside the arms of the TV mount, keeping everything out of sight. A TV mounting bolt kit and spacers are included, providing the installer with everything needed to attach most TVs. The Future Automation QA2-60, when fully extended outward, measures 910mm from the centre of the screen to the wall. When the bracket is in the fully closed position, it sits only 140mm from the wall. The QA2-60 can be recessed into the wall using the WB-QA2-60 wall box, which allows the mount to retract back into the box so the TV sits flush with the wall when closed. This is great for customers who want all the benefits of a motorised articulated wall bracket but are looking for a no-gap installation. Click for more info on the WB-QA2-60.
The Future Automation QA2-60 motorised two-way TV mount comes equipped with an intelligent IR remote control, allowing multiple favourite positions to be stored. This is perfect if you want to watch TV from various positions. This heavy-duty motorised TV mount utilises metal gears that don’t wear out after a few years, unlike other motorised brackets that use plastic gears. This QA2-60 features an ultra-silent heavy-duty motor system, delivering an incredibly quiet and smooth articulation. Another excellent design feature is that the bracket pushes the TV outward from the centre before rotating the TV. This makes the QA2-60 perfect for media walls or recessed TVs.
Design Features
- Bidirectional rotating head for 150-degree rotation
- Range of preset positions
- Full Cable Management
- Smooth, quiet motion
- Intelligent remote control
- Parallel Track for a beautifully tight recessed finish.
- Award-winning design
Future Automation QA2-60 Motorised Articulating TV Mount Specifications
PRODUCT CODE | QA2-60 |
---|---|
CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
DECIBEL RATING | 52DB |
DEPTH FROM WALL | 140MM (5.51″) |
FINISH (CUSTOM AVAILABLE) | BLACK PAINT – RAL 9005 & BRUSHED ALUMINIUM |
MAX DISPLAY WIDTH | +1420MM |
MAX EXTENSION FROM WALL | 910MM (35.82″) |
MAX ROTATION | UP TO 75° BOTH WAYS (SCREEN WIDTH DEPENDENT) |
MAX WEIGHT | 80KG (176LBS) |
MOVEMENT TYPE | MOTORISED |
POWER CONSUMPTION | MAX 120W |
POWER CONSUMPTION (STANDBY) | 3W |
POWER SUPPLY | 240V OR 110V |
For more information on the QA2-60 please see below.
Product downloads
QA2-60 Installation Instructions

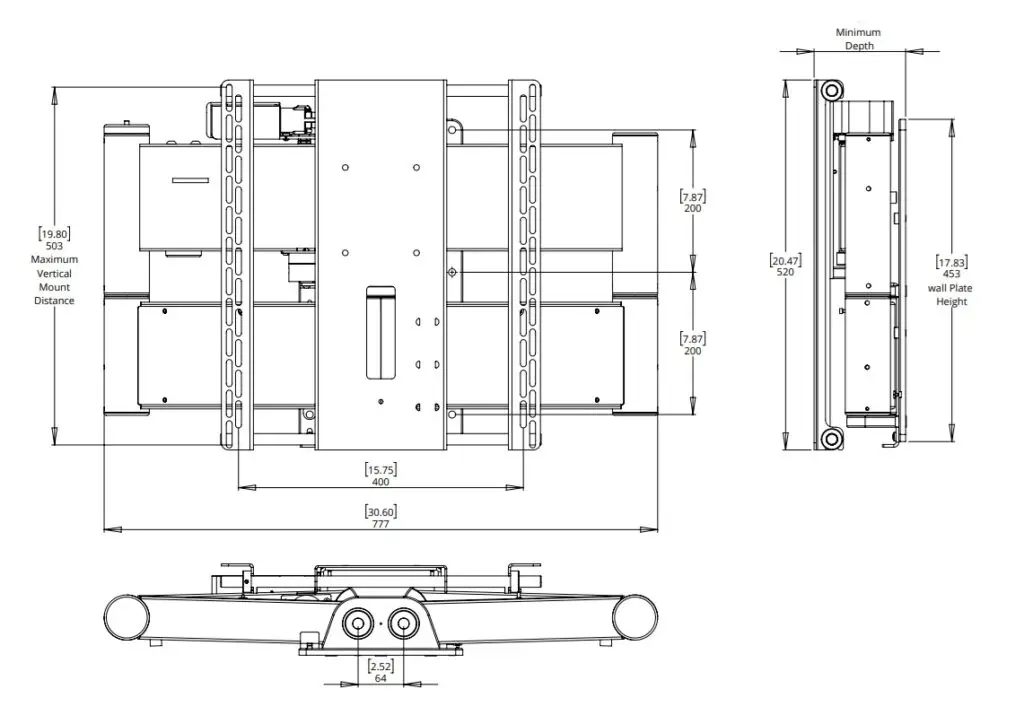

Technical illustration of the Future Automation QA2-60 Motorised TV Bracket
YouTube Video Of The QA2 In Action
Video presentation about the making of a motorised articulated TV mount
