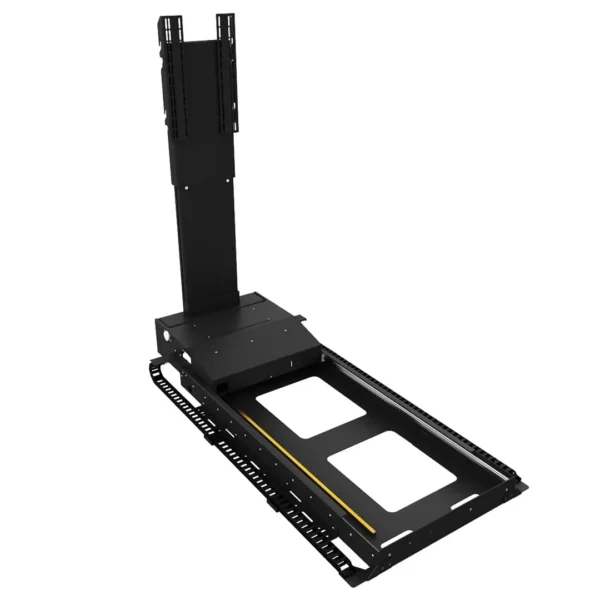

Future Automation UBL Under Bed TV Lift
The Future Automation UBL is a luxury, new state-of-the-art TV lift mechanism that can hide a flat-screen TV under a bed. Imagine lying in bed and with the press of a button, or voice command, your TV slides out from under the bed and lifts to the perfect viewing position. This is the ultimate solution to hiding TVs in a bedroom; the UBL delivers the wow factor! The under-bed TV lift firstly slides the TV flat out from underneath the bed, then hinges it 90 degrees, before lifting it up over the foot of the bed. Suitable for screens up to a maximum of 800mm tall or roughly a 55″ TV. There is also an option to include a motorised flap at the end of the bed flap that opens before the TV slides out. The UBL offers interior designers and homemakers the opportunity to take their projects to the next level.
- Description
- Specifications
- Downloads
- Video & Pictures
- Q & A
- Reviews (0)
Description
Future Automation UBL Bedroom TV Lift Mechanism

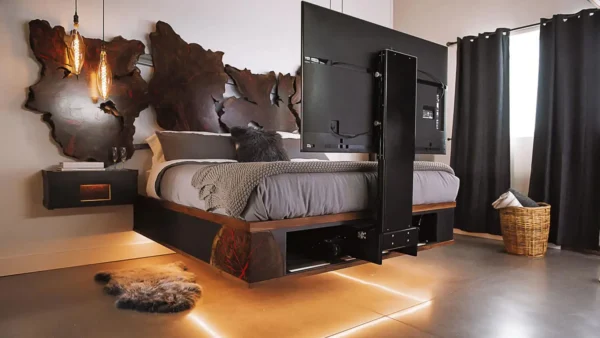

The Under Bed TV Lift Mechanism from Future Automation is a truly unique and impressive system designed to hide your flat-screen TV in the bedroom under the bed while it is not in operation. When you are ready to watch TV, press the remote button or other control, and the UBL under-bed TV lift will spring into action. Firstly, your TV will gently slide out from under the bed horizontally until it clears the foot of the bed. Secondly, the UBL then hinges the TV 90 degrees into the upright position. Lastly, the UBL telescopic lift raises the TV up over the bed to the perfect viewing position. This UBL lift has been designed for customers who want to conceal their TV in the bedroom but don’t want a traditional bed-end TV lift mechanism or bulky furniture. The under-bed lift, with its minimalist design, helps create another dimension in the interior design of a minimalist room.
The Future Automation UBL can also be shipped with an end-of-bed flap mechanism, the UBL-EBF. This mechanism automates a flap at the end of the bed, which opens and rolls out of the way under the bed before the TV slides out. The EBF is an excellent way to finish the bed base, allowing everything to be out of sight. The UBL is suitable for screens up to 55″ or 800mm tall and requires a minimum height clearance of 255mm. The UBL-EBF requires a minimum height under the bed of 320mm.
Example of the UBL sliding a TV out from under a bed.
Example of the UBL-EBF sliding a TV out from under a bed with a flap.
The UBL features near-silent motors that operate smoothly and efficiently, making it ideal for hotel rooms and residential customers. The UBL is shipped as a complete unit, ready to be installed with no self-assembly required. The lift is also supplied with a cable management track, ensuring that all cabling is safely and securely held throughout the operation. The final height of the TV can be programmed using the remote, providing the lift always returns to that preset height. The UBL range of bedroom TV lifts can be controlled by RS-232, contact closure, and comes standard with an IR remote control, making it fully integratable with most brands of home automation control systems. Also available is an RF remote option, which will allow the lift to operate remotely out of line of sight. This is a handy addition if the unit is not being configured to an existing control system.
Design Highlights
- Suitable for screens up to 55″
- Made in the UK
- TV hidden under the bed when not in use
- Easy installation
- Complete with remote control
- EBF motorised flap option
- Full cable management system
- Minimalist design
Future Automation UBL TV Lift Specification
| PRODUCT CODE | UBL | UBL-EBF |
|---|---|---|
| CONTROL OPTIONS | RS232 / IR (ON REQUEST: CONTACT CLOSURE / RF) | RS232 / IR (ON REQUEST: CONTACT CLOSURE / RF) |
| DECIBEL RATING | 50DB | 50DB |
| FINISH (CUSTOM AVAILABLE) | BLACK PAINT – RAL 9005 | BLACK PAINT – RAL 9005 |
| FLAP TYPE | NONE | MOTORISED FLAP UNIT |
| MAX SCREEN SIZE (H X W X D) | 800 X 1250 X 70MM (31.49 X 49.21 X 2.75″) | 800 X 1250 X 70MM (31.49 X 49.21 X 2.75″) |
| MAX WEIGHT | 40KG (88LBS) | 40KG (88LBS) |
| MIN HEIGHT REQUIRED | 255MM (10.03″) | 320MM (12.59″) |
| MIN LENGTH REQUIRED | 1800MM (70.86″) | 1800MM (70.86″) |
| MOVEMENT TYPE | MOTORISED | MOTORISED |
| POWER CONSUMPTION | MAX 100W | MAX 100W |
| POWER CONSUMPTION (STANDBY) | 1.5W | 1.5W |

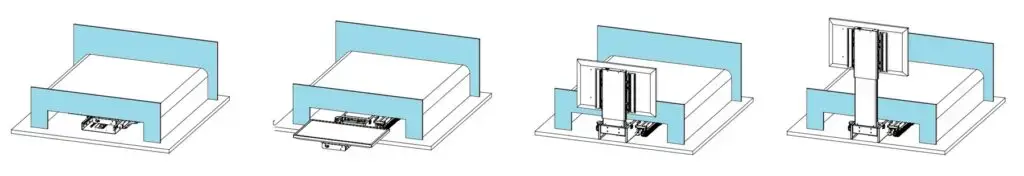

Technical Illustration of UBL Movement

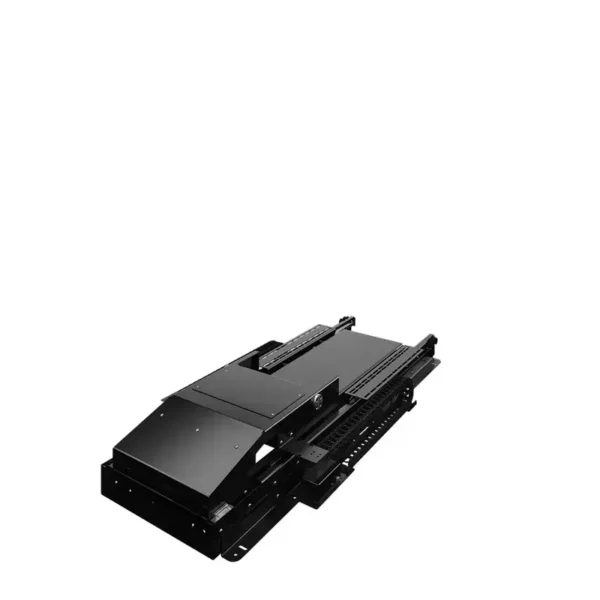

UBL when the TV is hidden away under a bed

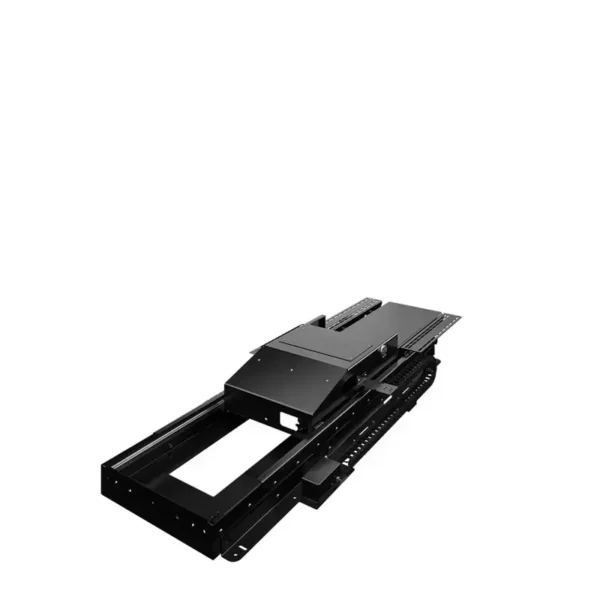

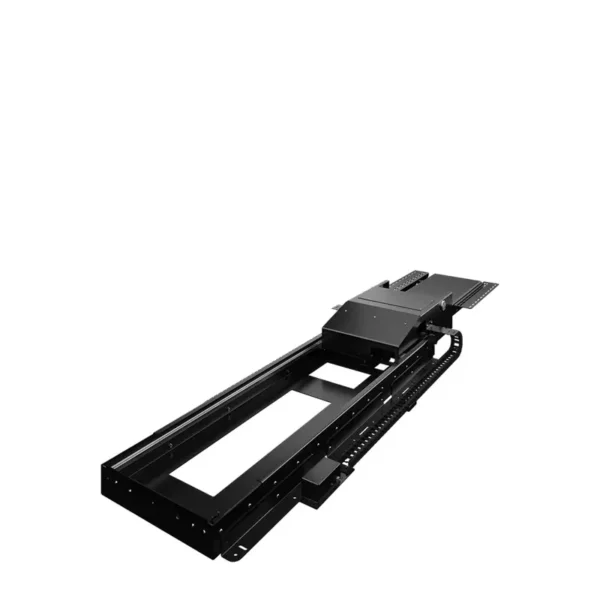

UBL when it slides the TV out From under a bed fully extended

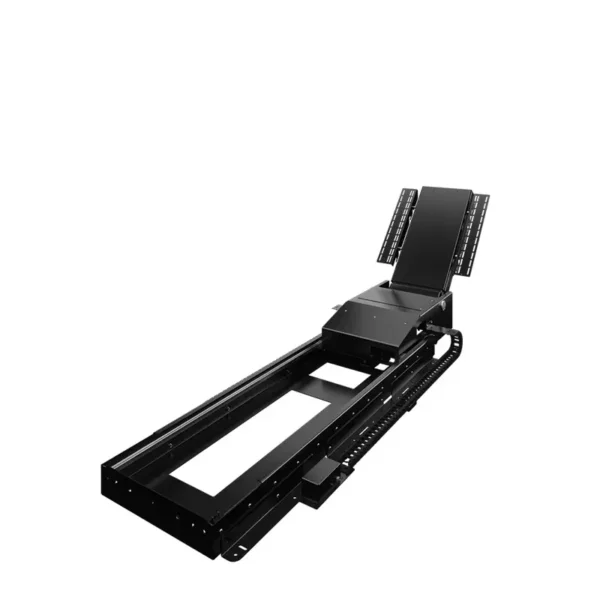

UBL when the TV is extended out horizontally and hinged 90 degrees from under a bed

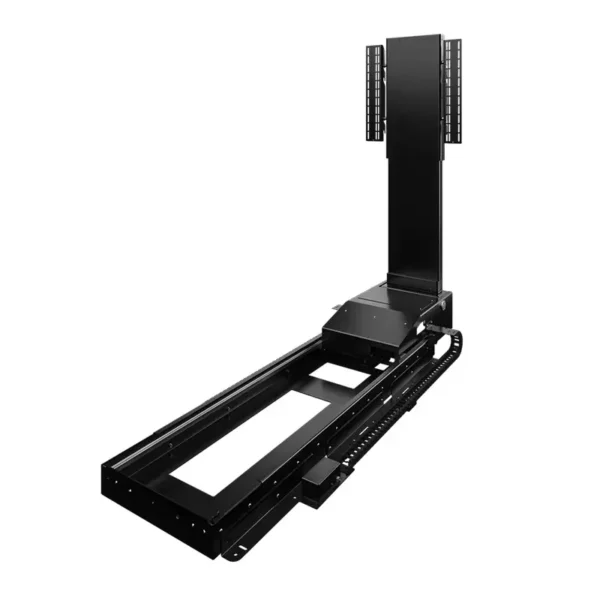

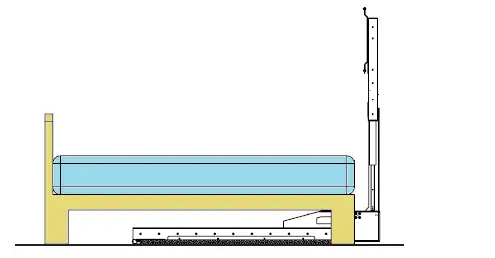

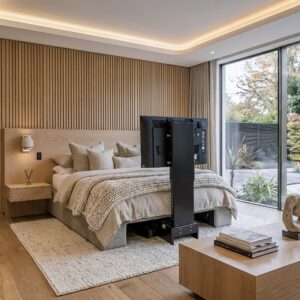

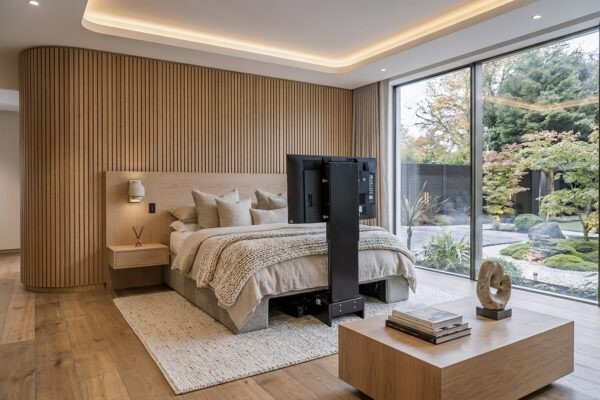

UBL when the TV is extended out horizontally for under the bed, hinged 90 degrees then lifted to the perfect viewing height.
Watch a video of this revolutionary bedroom TV lift mechanism.
