Future Automation WB Wall Box

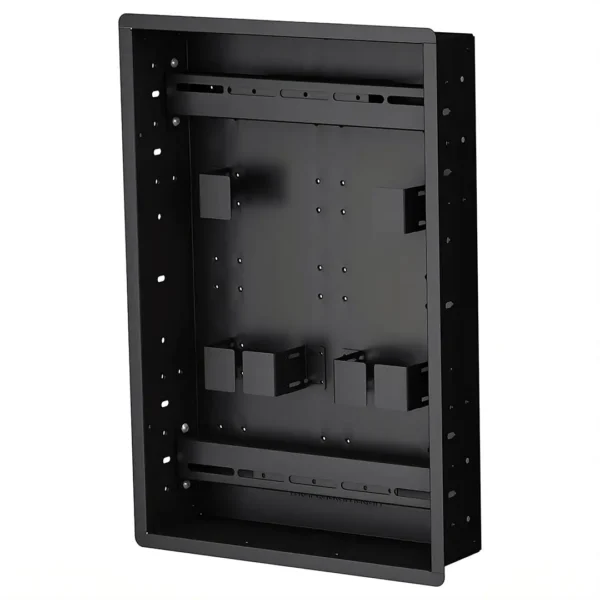

The Future Automation Wall Box was designed to work with the PS series of articulated TV wall mounts. They can be recessed into the wall during the building phase. The WB allows the PS full motion TV bracket to fold back inside the wall, providing a no-gap articulated TV mount. The WB can also accommodate a power pack or a streaming device media player. The WB can also be used behind TVs that are mounted flat to the wall to house SKY boxes, BT boxes and other auxiliary connected equipment. Made in the UK from solid steel, they come complete with a wall trim kit for the perfect finish.

Original price was: £277.00.Current price is: £249.30.

Model: WB

Add to wishlist

Description

Future Automation WB Wall Boxes

The Future Automation Wall Box Range has been designed to complement the PS range of articulated TV wall mounts. The wall boxes are recessed into the wall, and the TV bracket retracts into the wall box, providing a clean installation with a no-gap articulated TV mount. They come in a variety of sizes suitable for most applications and can accommodate third-party auxiliary equipment like sky boxes, media players, and one connect boxes if required.

The Wall Boxes are designed to mount in a single stud bay between two 14″ studs (except for the WB80). They feature metal edge trims, which provide a clean finish. The PS wall bracket mount position can be adjusted laterally to change the mount location relative to studs. The WB comes with built-in cable tie anchors providing a neat and simple cable management solution, complete with included cable ties, cable knock-out holes on all sides of the wall box to suit, allowing multiple entry points for your service cables.

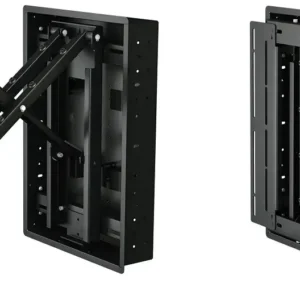

Example of the PS articulated TV Bracket(sold separately) with the Future Automation Wall Box

future automation PS TV bracket with wall box

For a No Gap TV Bracket, please see Wall Boxes with compatible PS Articulated TV Mounts.

WALL BOX	PS TV BRACKET	SCREEN SIZE	MAX WEIGHT
WB21	PS40 (ONE CENTRAL MOUNTING POSITION)	40″ – 75″	60KG
WB26	PS40 (THREE VERTICAL MOUNTING POSITIONS) PS55 (ONE CENTRAL MOUNTING POSITION)	55″ – 75″	60KG
WB31	PS40 (THREE VERTICAL MOUNTING POSITIONS) PS55 (THREE VERTICAL MOUNTING POSITIONS) PS65 (ONE CENTRAL MOUNTING POSITION)	65″ – 75″	60KG
WB80	PS80 (ONE CENTRAL MOUNTING POSITION)	80″ – 110″	120KG

There is also a two-stud wall box available, which has been designed for use with the Samsung Frame TVs. They allow you to hide the one Connect box behind the TV. Simply pull the TV out to access the one connect box and other equipment hidden behind the TV—a great all-in-one solution perfect for the Samsung Frame & LG Gallery TVs.

If you are unsure what wall box or TV bracket you need, or just need some help, our friendly staff are here to serve and are always happy to help.

Future Automation WB Wall Box Specifications

MODEL NO	WB21	WB26	WB31	WB80
FINISH	RAL 9005 BLACK (SATIN) – CUSTOM AVAILABLE	RAL 9005 BLACK (SATIN) – CUSTOM AVAILABLE	RAL 9005 BLACK (SATIN) – CUSTOM AVAILABLE	RAL 9005 BLACK (SATIN) – CUSTOM AVAILABLE

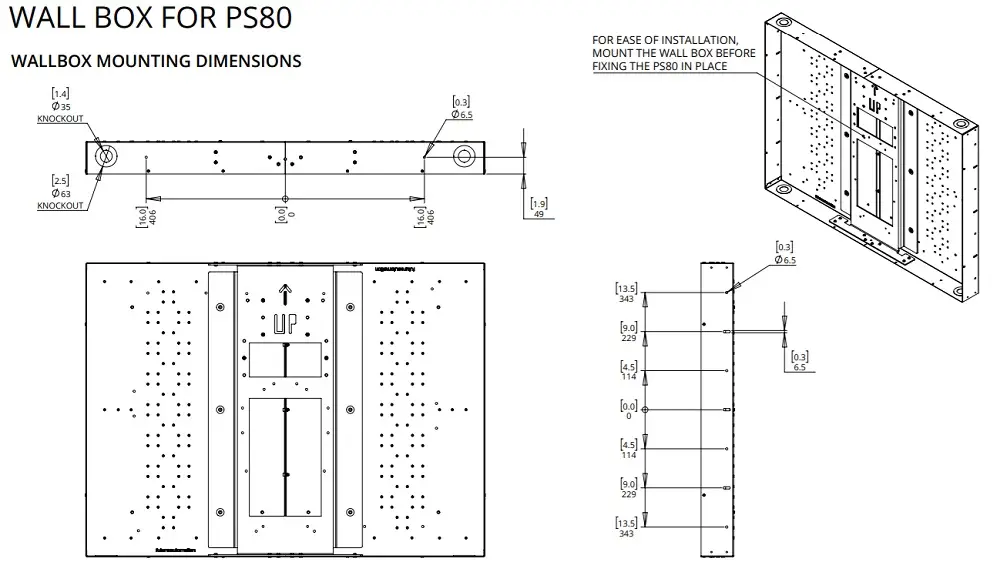

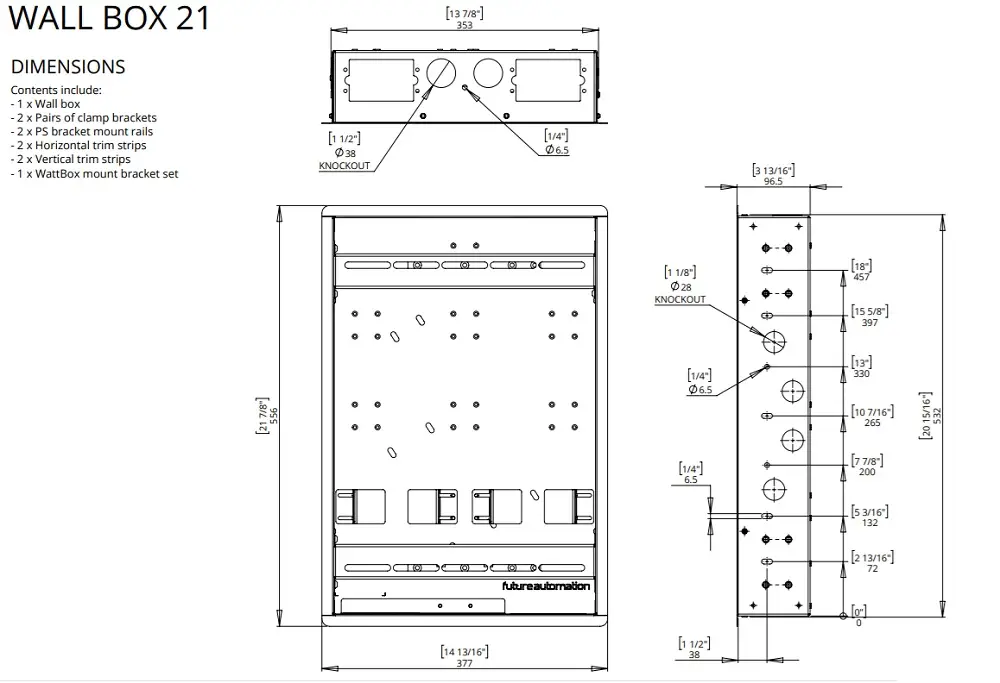

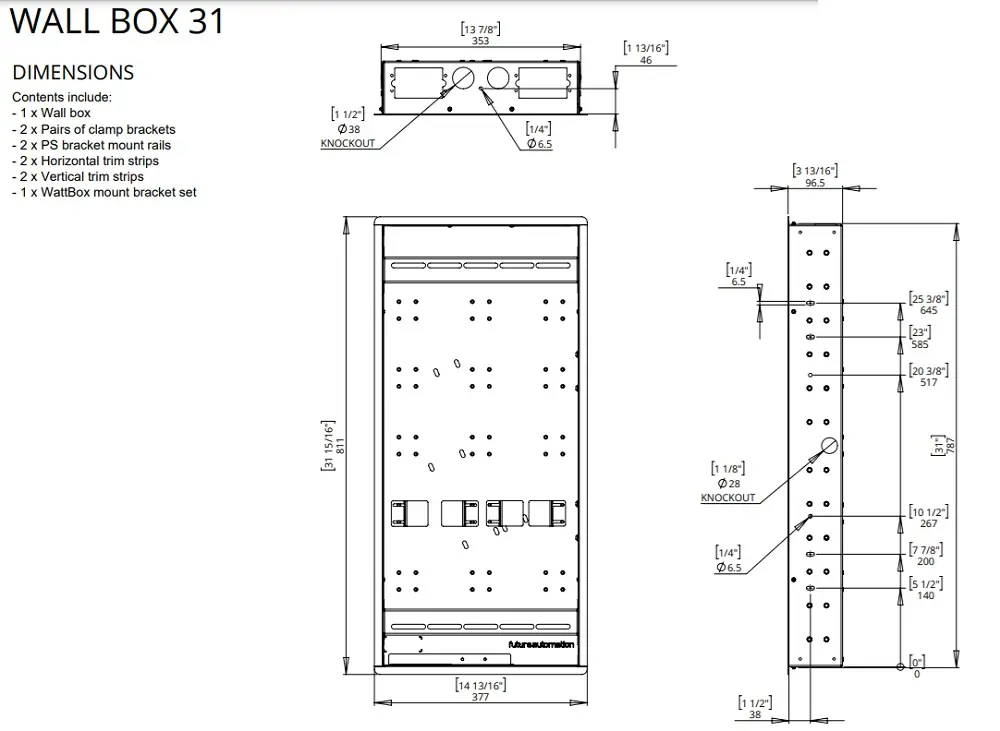

IN WALL DIMENSIONS (H X W X D)	532 X 353 X 96.5MM (21 X 14 X 3.8″)	660 X 353 X 96.5MM (26 X 14 X 3.8″)	787 X 353 X 96.5MM (31 X 14 X 3.8″)	1169 X 863mm X 97mm (46.0″) X (34.0″) X (3 13/16″)
MAX ACCESSORY CLAMP DEPTH	53.5MM (2.1″)	53.5MM (2.1″)	53.5MM (2.1″)	53.5MM (2.1″)
PS BRACKET COMPATIBILITY	PS40 (ONE CENTRAL MOUNTING POSITION)	PS40 (THREE VERTICAL MOUNTING POSITIONS) PS55 (ONE CENTRAL MOUNTING POSITION)	PS40 (THREE VERTICAL MOUNTING POSITIONS) PS55 (THREE VERTICAL MOUNTING POSITIONS) PS65 (ONE CENTRAL MOUNTING POSITION)	PS80 (ONE CENTRAL MOUNTING POSITION)
WALL BRACKET LATERAL ADJUSTMENT	89MM (3.5″) EITHER SIDE	89MM (3.5″) EITHER SIDE	89MM (3.5″) EITHER SIDE	89MM (3.5″) EITHER SIDE
WHAT’S INCLUDED	1 X WALL BOX 2 X PAIRS OF CLAMP BRACKETS 2 X PS BRACKET MOUNT RAILS 2 X HORIZONTAL TRIM STRIPS 2 X VERTICAL TRIM STRIPS	1 X WALL BOX 2 X PAIRS OF CLAMP BRACKETS 2 X PS BRACKET MOUNT RAILS 2 X HORIZONTAL TRIM STRIPS 2 X VERTICAL TRIM STRIPS	1 X WALL BOX 2 X PAIRS OF CLAMP BRACKETS 2 X PS BRACKET MOUNT RAILS 2 X HORIZONTAL TRIM STRIPS 2 X VERTICAL TRIM STRIPS	1 X WALL BOX 2 X PAIRS OF CLAMP BRACKETS 2 X PS BRACKET MOUNT RAILS 2 X HORIZONTAL TRIM STRIPS 2 X VERTICAL TRIM STRIPS
