Hinge Up Low Level TV Lift Future Automation HU
The Future Automation HU Hinge Up Low Level TV Lift is a revolutionary product designed to hide flat screen TVs up to 65″ in low-level cabinets, ottomans, pouffes and end-of-bed cabinets. The lift opens a 90-degree hinge lid to reveal the hidden TV behind. Complete with remote and full instructions for a basic cabinet. Great for hiding flat screen TVs in coffee tables or low-level staging.
- Description
- Specifications
- Downloads
- Video & Pictures
- Q & A
- Reviews (0)
Description
Future Automation HU Hinge UP Low Level TV Lift
Please note that furniture is not included with the lift. For help with this, please call 0800 669 6600
The Hinge Up low-level TV Lift from Future Automation is a truly unique and impressive product designed to hide your flat-screen TV horizontally within a low-level TV cabinet, coffee table, or chest. When you want to watch TV, press the remote button and the cabinet or chest lid hinges up 90 degrees, revealing the hidden TV screen. The TV Lifting Arm is the only solution that allows low-level chests or trunks to conceal large screens without the need for tall cabinetry. Ideal for end-of-bed applications or low-level furniture, such as footstools or ottomans.
The Future Automation HU low-level TV lift comes in three different models, suitable for screens ranging from 32″ to 65″, with a maximum weight hold of 50kg. The hinge-up lift features a near-silent motor system and facilities to route your TV cables safely. Included with the lift is a guide to building your low-level chest, as featured in the pictures of this product.
The HU TV lift mechanism comes complete with an IR remote and can be controlled via RS232 or contact closure, making it fully compatible with home automation control systems. Also available is an RF remote option, which will allow the lift to operate by remote out of the line of sight, a handy addition if the unit is being used as a standalone without a control system
Key Features :
- Near-silent operation
- screen from 32″ to 65″
- Low-level TV lift
- Full cable management
- Wide range of screen mountings
- Innovative Design
- Remote controlled with IR included.
- 24-month manufacturer warranty.
AV Installs, in addition, can also provide a fitting service with this product, which includes the construction of a low-level chest and the installation of the lift. For more details, call one of our experts now on 0800 669 6600
| PRODUCT CODE | HU4 | HU5 | HU6 |
|---|---|---|---|
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
| MAX ROTATION | 90° | 90° | 90° |
| MAX SCREEN SIZE (H X W X D) | 680 X 1130 X 65MM (26.8 X 44.5 X 2.6″) | 800 X 1330 X 65MM (31.5 X 52.4 X 2.6″) | 920 X 1530 X 65MM (36.2 X 60.2 X 2.6″) |
| MAX WEIGHT | 50KG (110LBS) INCLUDING CABINET WEIGHT | 50KG (110LBS) INCLUDING CABINET WEIGHT | 50KG (110LBS) INCLUDING CABINET WEIGHT |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED |
For more information please see the links below.
Product Downloads

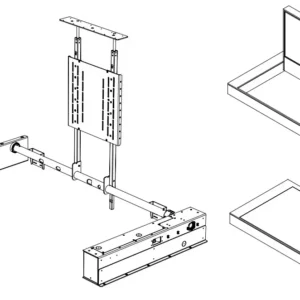

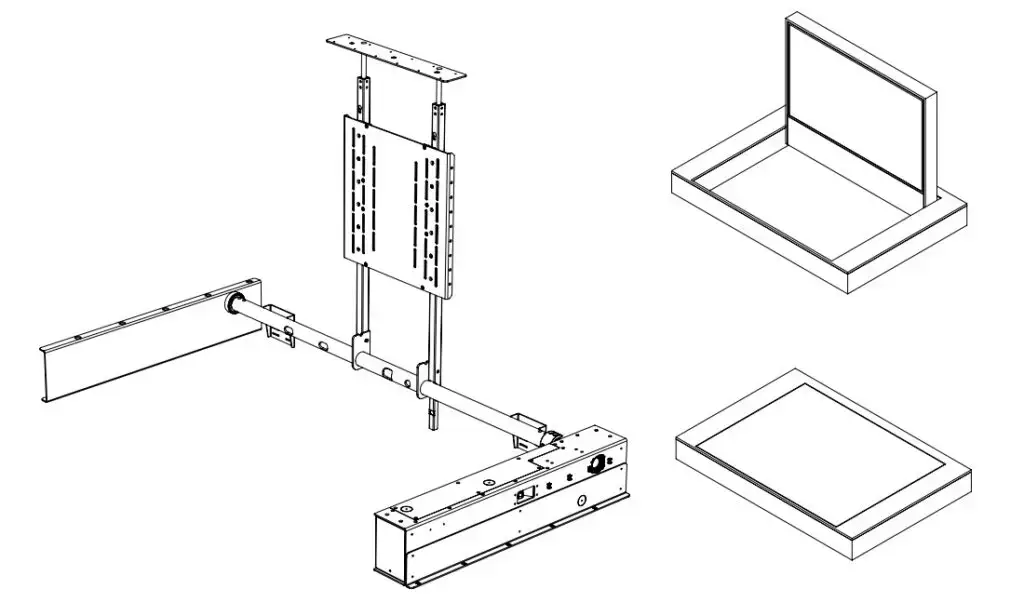

Technical illustration of HU lift
