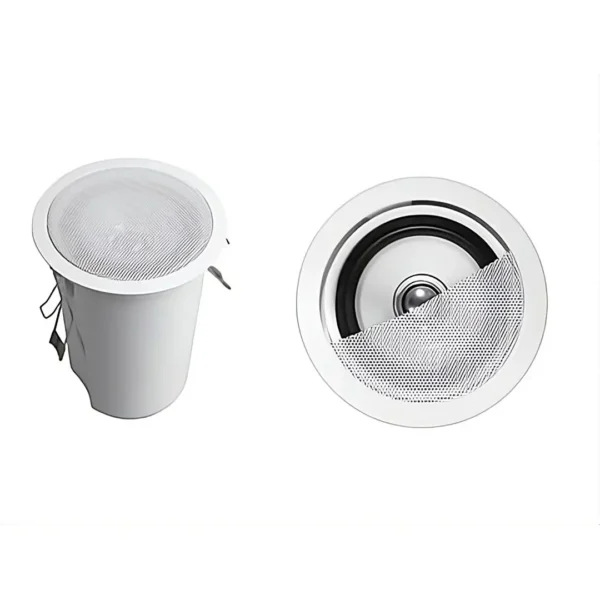

Kef Ci180.QR flush fit Speaker
The Kef Ci180.QR flush fit Speaker delivers Hi-Fi quality sound through a polypropylene cone low frequency driver with a high frequency driver mounted at the acoustic centre of the LF drive unit. The bezel and grill can be painted to match the interior decor of the room.
Model: Ci180.QR
- Description
- Specifications
- Downloads
- Q & A
- Reviews (0)
Description
Kef Ci180.QR flush fit In Ceiling Speaker
The Kef Ci180.QR flush fit Speaker delivers Hi-Fi quality sound through a polypropylene cone low frequency driver with a high frequency driver mounted at the acoustic centre of the LF drive unit. The bezel and grill can be painted to match the interior decor of the room.
The Kef Ci180.QR is the latest edition to the Kef Uni-Q custom installation speaker family, purpose built for direct flush mounting into ceilings or walls. Designed to smoothly integrate and architecturally match with existing down lighting sharing the same size bezel, KEF’s trademark Uni-Q technology has a decisive performance advantage in these applications, because each point source driver array evenly disperses the sound, ensuring a smooth frequency response over a large area to create a spacious three-dimensional soundscape with genuine texture and depth. With a two-way Uni-Q driver of 100mm (4”), the Ci180.QR is as satisfyingly musical to hear as it is neat in appearance.
Key Features
- 10-50W
- In Ceiling / In Wall Speaker
- LF & HF Drive Unit
- 97mm cutout
- Flush Wall Ceiling Fit
- Supplied with Back Can
- White Paintable Grills
Features and Benefits
Purpose built for flush mounting into walls and ceilings these are the latest addition to the KEF Uni-Q Custom Installation series. Providing a compact solution to the problem of Hi-Fi quality sound from an in-wall/ceiling speaker, the 80QR consists of a polypropylene cone LF driver with the HF unit mounted at the acoustic centre of the LF unit. The bezel and grill can be painted to match the interior décor.
Applications
The Ci Series Ci 80QR is best suited for high quality music and speech reinforcement applications requiring hi-fi performance such as:
- Multi Room systems
- Home Theatre systems
- Lounges, Bars, Boutiques
- Boardrooms & Offices
- Airports, Convention Centres, Hotels
- Live Theatre/Concert Hall fill-in
- Houses of Worship
- Sports Arenas
Architectural Specifications
The The Kef Ci180.QR flush fit Speaker delivers Hi-Fi quality sound through a polypropylene cone low frequency driver with a high frequency driver mounted at the acoustic centre of the LF drive unit. The bezel and grill can be painted to match the interior decor of the room comprises Uni-Q® 15mm aluminium dome tweeter with 80mm white polypropylene bass/mid unit with double neo compound magnet system.
Performance should meet or exceed the following criteria: frequency response be 130Hz to 27kHz, sensitivity shall be at least 85dB for 2.83V@1m. The impedance shall be 4 ohms.
Performance should meet or exceed the following criteria: frequency response be 130Hz to 27kHz, sensitivity shall be at least 85dB for 2.83V@1m. The impedance shall be 4 ohms.
Specifications | |
---|---|
Model No | Ci180.QR |
Nominal Impedance | 4 Ohms |
Sensitivity (2.83V/ 1m) | 85dB |
Frequency Response +/-6dB 2pi/open-backed | 100 – 27kHz |
Crossover Frequency | 3kHz |
Drive Units | 80mm LF 15mm HF |
Recommended Amplifier Power | 10 – 50W |
Features | Uni-Q Array, Removable Plastic Back Can |
Mounting Depth from Surface | 80mm without back can 139mm with back can |
Cut – out Dimension | 97mm |
For more information on The Kef Ci180.QR flush fit Speakers please see the links below.
