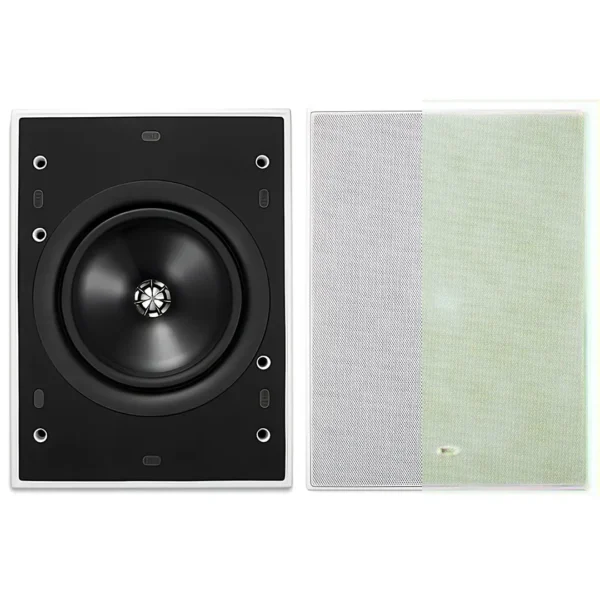

Kef Ci200QL Rectangular Speaker
The Kef Ci200QL Rectangular Speaker is the latest edition to the Kef Uni-Q custom installation speaker family, purpose built for direct flush mounting into ceilings or walls
Model: Ci200QL
- Description
- Specifications
- Download
- Q & A
- Reviews (0)
Description
Kef Ci200QL Rectangular In Ceiling / Wall Speaker
The Kef Ci200QL Rectangular Speaker is the latest edition to the Kef Uni-Q custom installation speaker family, purpose built for direct flush mounting into ceilings or walls. Designed to smoothly integrate and architecturally match with existing architectural features, KEF’s trademark Uni-Q technology has a decisive performance advantage in these applications, because each point source driver array evenly disperses the sound, ensuring a smooth frequency response over a large area to create a spacious three-dimensional soundscape with genuine texture and depth. With a two-way Uni-Q driver of 200mm (8”), the Ci200QL is as satisfyingly musical to hear as it is neat in appearance.
The Ci200QL delivers Hi-Fi quality sound through a polypropylene cone low frequency driver with a high frequency driver mounted at the acoustic centre of the LF drive unit. The bezel and grill can be painted to match the interior decor of the room.
Features and Benefits
Purpose built for flush mounting into walls and ceilings these are the latest addition to the KEF Uni-Q Custom Installation series. Providing a compact solution to the problem of Hi-Fi quality sound from an in-wall/ceiling speaker, the Ci200QL consists of a polypropylene cone LF driver with the HF unit mounted at the acoustic centre of the LF unit. The bezel and grill can be painted to match the interior décor.
Key Features
- 10-125W high power
- Rectangle Speaker
- LF & HF Drive Unit
- 334mm X 238mm cutout
- Flush Wall Ceiling Fit
- Ultra Thin Bezel
- White Paintable Grills
Applications
The Ci Series Rectangular Ci200QL is best suited for high quality music and speech reinforcement applications requiring hi-fi performance such as:
- Multi Room systems
- Home Theatre systems
- Lounges, Bars, Boutiques
- Boardrooms & Offices
- Airports, Convention Centres, Hotels
- Live Theatre/Concert Hall fill-in
- Houses of Worship
- Sports Arenas
Architectural Specifications
The Ci Series Ci Ci200QL consist of: 1 X 25mm aluminium dome tweeter 200mm polypropylene cone with double neo compound magnet system.
Performance of the Ci Ci200QL shall meet or exceed the following criteria: frequency response 1 metre on-axis with swept sinewave shall be 35Hz to 34kHz , sensitivity shall be at least 90dB for 2.83V@1m. The 2.83V@1m. The driver impedance shall be 8 ohms.
Specifications | |
---|---|
Model No | Ci200QL |
Nominal Impedance | 8 Ohms |
Sensitivity (2.83V/ 1m) | 90dB |
Frequency Response +/-6dB 2pi/open-backed | 35Hz – 34kHz |
Crossover Frequency | 2.5kHz |
Drive Units | 200mm LF 25mm HF |
Recommended Amplifier Power | 10 – 125W |
Features | Ultra Thin Bezel |
Mounting Depth from Surface | 99.8mm |
Cut – out Dimension | 334mm x 238mm Rectangle |
For more information on the Kef Ci200QL Rectangular Speaker please see the links below.
