LSM-HZ Horizontal TV Lift

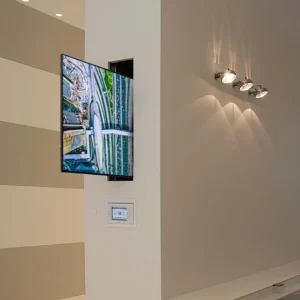

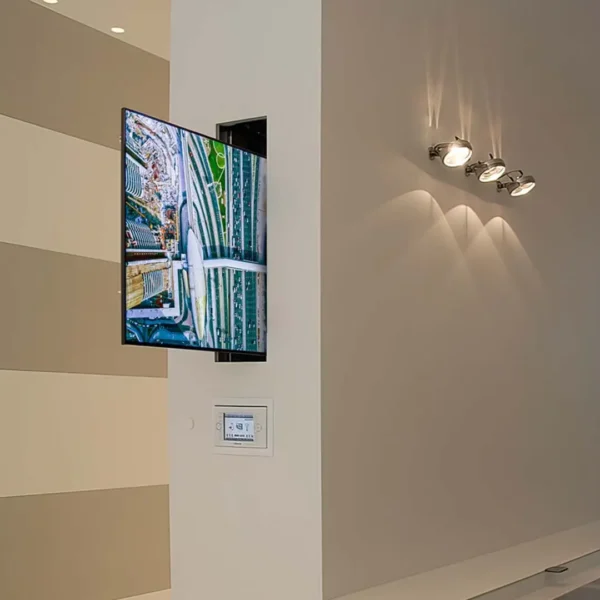

The Future Automation LSM-HZ is a ground breaking new TV lift mechanism that can slide a concealed TV horizontally out from inside a cabinet or wall cavity. It is ideal for emerging from the side of partition walls in open-plan spaces where wall and ceiling space are limited. They have been integrated into fireplaces where the TV slides out from the side into an alcove. The LSM HZ allows a fixed lid to be attached to the lift, matching the wall or cabinet when closed. It comes complete with a control box for easy integration into third-party control systems and an IR remote control.

made in britain

Model: LSM-HZ

Description

Future Automation LSM-HZ Horizontal TV Lift Mechanism

Introducing the revolutionary Future Automation LSM-HZ – the ultimate solution for seamlessly integrating your TV into any space. This groundbreaking TV lift mechanism is designed to slide a concealed TV horizontally out from inside a cabinet or wall cavity, making it perfect for those with limited wall and ceiling space.

Handmade in the UK to order and built to last a lifetime, this luxury lift is one of the most versatile TV lift mechanisms on the market. The LSM-HZ is ideal for open-plan spaces and can be easily integrated into partition walls. Its sleek design allows for a hidden and clutter-free entertainment space, while still providing easy access to your TV when needed.

But that’s not all, the LSM-HZ has also been expertly integrated into fireplaces, allowing for a stunning display as the TV slides out from the side into an alcove. No longer do you have to choose between a cosy fireplace or a functional TV – now you can have both without compromising on style.

What makes the LSM-HZ truly unique is its ability to attach a fixed lid to the lift, matching the wall or cabinet seamlessly when closed. This not only enhances the aesthetic appeal but also provides an additional layer of protection for your TV when it is not in use.

With a control box included, the LSM-HZ is easily integrated into third-party control systems, making it a convenient addition to your smart home. And for those who prefer a more traditional method, an IR remote control is also included for easy operation.

Don’t wait any longer to upgrade your TV viewing experience. With the Future Automation LSM-HZ, you can create a stunning, functional, and completely customizable space that will impress all who see it. So why settle for a standard TV setup when you can elevate your home entertainment with the LSM-HZ – the ultimate TV lift mechanism. Order yours today and experience the future of TV automation.

let's talk contact page button

trading standards but with confidence logo

Future Automation LSM-HZ Specifications

PRODUCT CODE LSM-HZ-FP5 LSM-HZ-FP6
CONTROL OPTIONS IR REMOTE, RS232, CONTACT CLOSURE, RF AVAILABLE IR REMOTE, RS232, CONTACT CLOSURE, RF AVAILABLE
DECIBEL RATING 52 DB 52 DB
INTERNAL CABINET WIDTH 1690MM (66 9/16″) 1910MM (75 3/16″)
MARINE SUITABLE YES (INDOOR MARINE ONLY) YES (INDOOR MARINE ONLY)
MAXIMUM SCREEN WIDTH 1265MM (49 13/16″) 1490MM (58 11/16″)
MAXIMUM WEIGHT CAPACITY 50KG (110LB) 50KG (110LB)
MAXIMUM WEIGHT CAPACITY (MARINE) 30KG (66LB) 30KG (66LB)
MOUNTING PATTERNS SUPPORTED VESA 400, 300, 200 W X 400, 300, 200 H VESA 400, 300, 200 W X 400, 300, 200 H
MOVEMENT TYPE MOTORISED MOTORISED
PACKAGE CONTENTS MECHANISM, IR REMOTE CONTROL MECHANISM, IR REMOTE CONTROL
PACKAGING DIMENSIONS 1790 X 890 X 270MM (70 1/2″ X 35 1/16″ X 10 5/8″) 2010 X 890 X 270MM (79 1/8″ X 35 1/16″ X 10 5/8″)
POWER CONSUMPTION 250 – 500W 250 – 500W
POWER CONSUMPTION STANDBY 3W 3W
POWER SUPPLY REQUIRED 110V – 240V AC 110V – 240V AC
PRODUCT OPTIONS / FEATURES SPECIFIC B&O AND LOEWE MOUNTS / ADAPTERS, CUSTOM RAL PAINT FINISHES SPECIFIC B&O AND LOEWE MOUNTS / ADAPTERS, CUSTOM RAL PAINT FINISHES
SHIPPING WEIGHT 51KG (112LB) 55KG (121B)



For more information on the LSM-HZ Horizontal TV lift please see below.

Product Downloads

LSM-HZ-FP5 Technical Sheet

LSM-HZ-FP6 Technical Sheet

Videos and Picture of the LSM-HZ

a technical illustration of the lsm-hz horizontal tv lift
