Multimedia Flat Screen TV Wall Plate 01
Our Double Gang Multimedia flat screen TV plate is a versatile solution, designed to cater to a wide range of audio visual installations. With X3 HDMI sockets, X1 Optical Audio Socket, X1 USB 3.0 sockets, X1 CAT6 Socket and a CV/BS Phono sockets, it provides a professional connection point between equipment. Available in a variety of decorative finishes, and with the option for custom orders, it’s a solution that can be tailored to your specific needs. The plate features three female HDMI V2.1 and X1 USB connections on the front, with a short lead on the back to another three female HDMI sockets and USB. The Optical, Cat6 and CV/BS sockets are the same on the back as they are on the front, acting as a coupler, further enhancing its versatility.
£100.00
- Description
- HDMI 2.1
- Custom AV Wall Plates
- Q & A
- Reviews (0)
Description
Double Gang Multimedia AV Connection Plate With Triple HDMI V2.1, Single USB 2.0, Optical Audio and CAT6 Socket along with CV / BS (various finishes available)
Double gang Multimedia AV connection Plate available in the following decorative finishes
- White Plastic
- Black Plastic
- Brushed Brass
- Polished Brass
- Brushed Chrome
- Polished Chrome
- Gun Metal Black

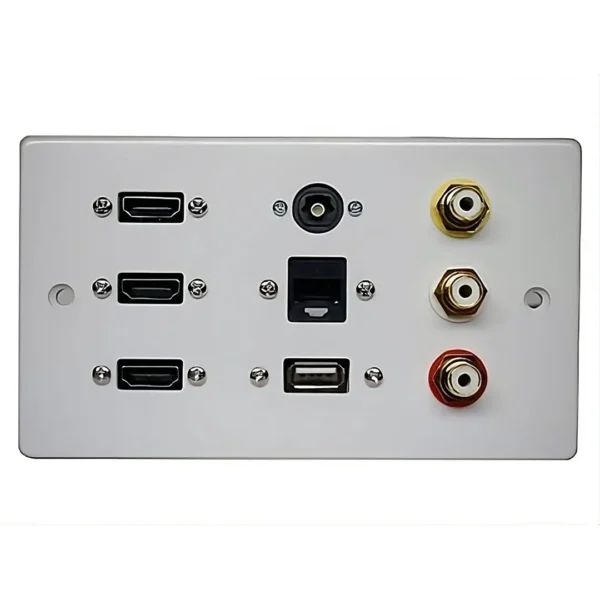

Featuring 3 HDMI sockets on the front, along with Optical Audio, Cat6 RJ45, USB 3 and CV/BS sockets on a double-gang wall plate. On the back, there are three female HDMI sockets and a USB 3 socket at the end of a short lead. The Optical Audio socket, CV/BS and the CAT6 RJ45 socket have straight coupler sockets on the back. Our connectors are fixed to the plate using screws and bolts rather than glue, providing extra strength for longevity and regular use. This TV connection plate has everything that a modern entertainment system needs, with multiple connections for SKY, Virgin, BT, along with your favourite games consoles like Xbox & PlayStation. There is also an optical audio return and a Cat6 connection for high-speed online service like Netflix, Amazon Prime, etc.
Multimedia Wall Plates are used extensively in audio visual installations to provide a professional point of connection between devices, such as your TV and auxiliary equipment, like Laptops, Sky Box, Blu-ray player, or game consoles. They are also used in projector installations and commercial display screen installations as a simple multimedia TV connection plate. If your cables are buried in the wall and the connector breaks when plugging your equipment in, it’s a massive job to rip it out and start again. With an AV connection plate, you just replace the fly lead or the individual socket. This protects the main cable in the wall from any damage during use. This is ideal for commercial installations or anywhere that laptops are regularly connected to AV equipment, like offices or classrooms. They are also instrumental in TV Installations or media walls, providing an accessible point to connect devices like game consoles when needed.
Multimedia wall plates offer a professional interface point between equipment when a permanent cabling installation is required. We provide a variety of decorative finishes. However, if you have a specific finish in mind, please contact us.
Key Details
-
- fits all UK double gang back boxes
- triple HDMI connection
- single Optical Audio connection
- CV / BS connection
- single CAT6 network connection
- single USB 3.00 connection
- gold-plated contacts
- suitable for all HDMI connections, including V 2.1 48Gbps bandwidth
- short tail HDMI socket on the rear
- dimensions: 146mm x 86mm
- screws included
Why HDMI 2.1
Not everyone knows that not all HDMI cables are the same or can do the same tasks. It’s important to know, though, that HDMI 2V.1 is the very latest and is backwards compatible with all previous versions. The key difference between the earlier version, HDMI 2.0, and the new 2.1 is the bandwidth size and transmission bit rate. The former V2.0 supports only 18Gbps to achieve a 4K picture at 60Hz. Whereas the latest HDMI 2.1 clocks in at 48Gbps and promises up to 10K resolution at 120Hz. This will future-proof your HDMI AV connection for a few upgrades yet! HDMI V2.1 is fully backwards compatible and will work with all previous standards
Custom AV Wall Plates, Design & Manufacture
At AV Installs, we manufacture all our own audio visual connection plates here in the UK. We have an extensive range of standard connection plates to suit most applications. However if you can’t find exactly what you are looking for in our catalogue or would like to make some changes, then please get in touch. Our friendly staff are always happy to help, and we have short lead times for custom orders.
