Samsung 32″ Frame Articulated Swivel TV Wall Mount
Original price was: £471.00.£423.90Current price is: £423.90.
- Description
- Available Accessories
- Specifications
- Downloads
- Video & Pictures
- Q & A
- Reviews (0)
Description

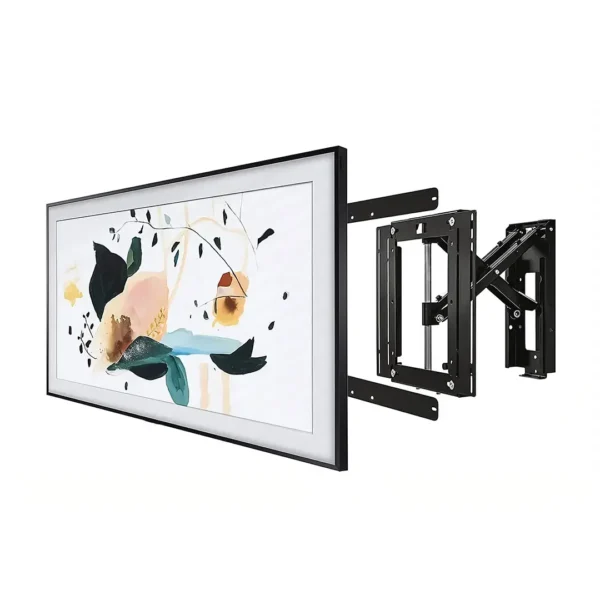

Samsung 32″ Frame TV Articulated TV Mount
The Future Automation Frame32 is a PS32 combined with the AP-FR32 adaptor plate has been designed specifically to accommodate the non vesa mounting of the Samsung 32″ frame TV This wall mount can be used as on the wall with a depth of only 52mm or it can be recessed using the compatible wall box which will also allow you to store the one connect box behind the TV in the wall, this will enable this screen to sit flush with the wall when returned.
The articulation is incredibly smooth and can be done easily with one hand, thanks to the premium scissor arm mechanism. For a 32″ Samsung Frame TV, the maximum swing is 50 degrees in both directions.
Features an easy hook-on and off-screen mount, making installation of the frame TV really easy, along with built-in cable tie anchors for simple cable management. The Samsung Frame Swivel TV Mount is designed to be fixed to a single stud or solid wall for ease of installation.
Future Automation has a range of PS mounts and wall boxes to cater to all sizes of Samsung Frame TVs.
If you are looking to wall-mount your Samsung Frame TV on a no-gap swivel bracket, then the PS range, combined with the twin-rail wall box, is the perfect solution for you.
| Samsung The Frame TV Mount Guide | ||||||
|---|---|---|---|---|---|---|
| The Frame TV Size | 32″ | 43″ | 55″ | 65″ | 75″ | 85″ |
| Suitable PS Brackets & Wall Box | PS32 with a AP-FR32 & WB16-2S | PS32 with WB16-2S
PS40 with WB21-2S |
PS40 with WB21-2S, or WB26-2S
PS55 with WB26-2S or WB31-2S |
PS55 with WB26-2S or WB31-2S
PS65 with WB31-2S |
PS65 with WB31-2S
PS80 with WB80 |
PS80 with WB80 |
AV Installs Ltd also offers a comprehensive range of Installation Services. Give us a call today on 0800 669 6600
Accessories for the Samsung Frame Tv Bracket
Wall Boxes

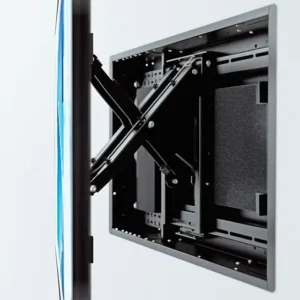

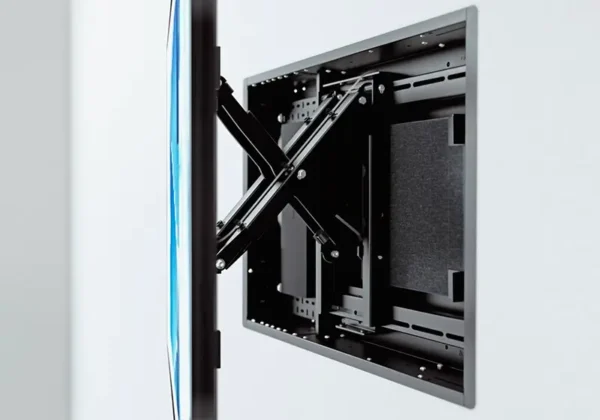

The Frame 32 can be recessed into the wall using a WB16-2S wall box, this allows the mount to retract into the box so the TV sits flush with the wall when closed. This is the solution when you want all the benefits of a articulated wall mount but don’t want a gap when the brackets closed. Perfect for the new gallery and frame TV’s.
Speaker / Sound Bar Mount
The PS32 can be used with the USM universal speaker mount designed for mounting either a centre speaker or sound bar beneath the TV so that it moves out with the TV. Click Here For More Info
Samsung Frame32 TV Wall Bracket Specifications
| Specifications | |
|---|---|
| maximum screen size | up to 32″ frame TV |
| maximum weight | 60kg |
| vesa supported | non standard vesa AP-FR32 adaptor |
| movement | 50 degrees 32″ |
| depth from wall closed | 52mm |
| maximum extension | 300mm |
For more information please see the links below.
Product Downloads

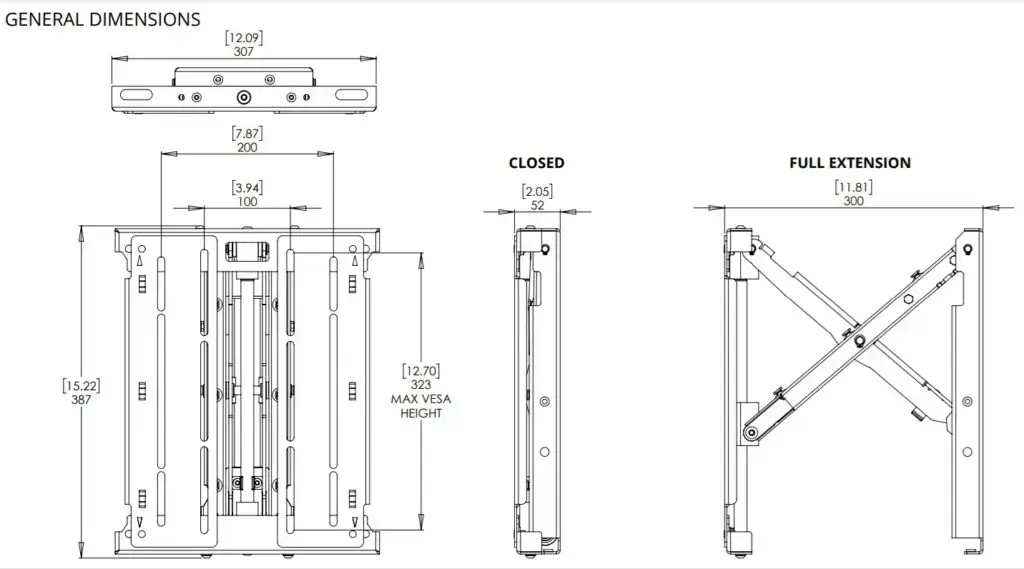

Technical Picture & Dimensions of Samsung Frame TV Mount
Q & A
Ask a question
Samsung 32" Frame Articulated Swivel TV Wall Mount
Your question
* Question is required
Name
* Name is required
Email
* Email is required
* Please tick the checkbox to proceed
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
There are no questions yet
Be the first to review “Samsung 32″ Frame Articulated Swivel TV Wall Mount”
You must be logged in to post a review.
Often Brought With
-
Wall Boxes

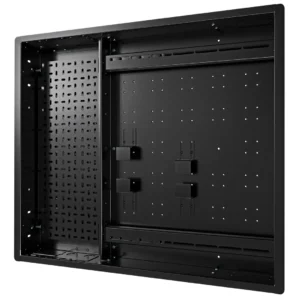

Future Automation WB-2S Wall Box
