Screen International Si-200 Lift
The Screen International Si-200 projector lift mechanism is designed to lower a hidden projector from inside a ceiling void down to the correct projection height. Made for smaller projectors with a maximum weight of 15KG and maximum dimensions of width W550mm x D560mm x H225mm. The Si-200 can lower a projector up to a total distance of 1724mm under the ceiling. There are dead stops which can limit the drop and return travel for perfect alignment with the ceiling. This projector lift is ideal for suspended ceiling installations and is designed to clear a standard 600mm x 600mm grid ceiling. There is also an optional suspended ceiling tile holder and RF remote kit if needed.
£835.03
- Description
- Specifications
- Downloads
- Video & Pictures
- Q & A
- Reviews (0)
Description

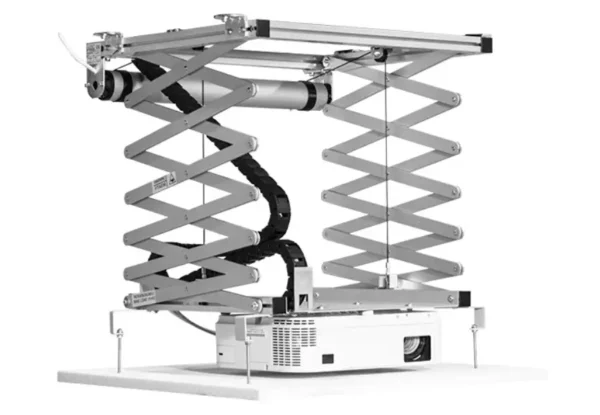

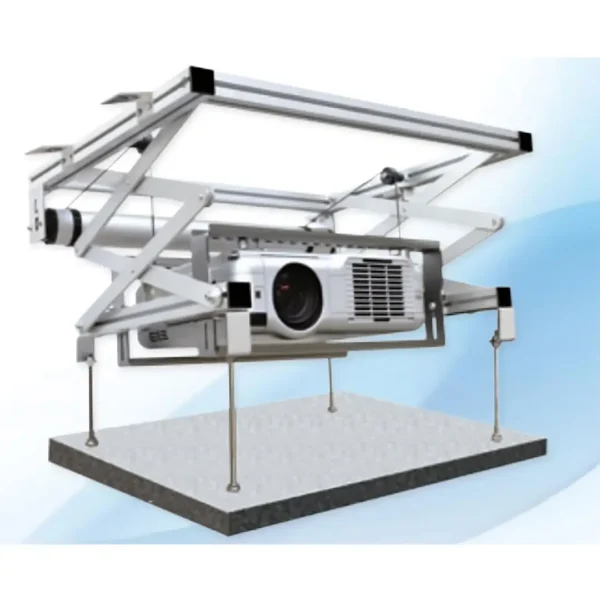

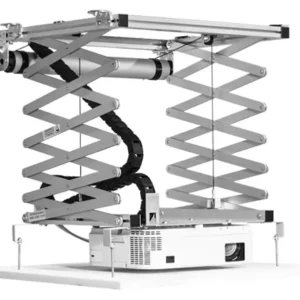

Screen International Si-200 Projector Lift
The Si-200 projector lift is a versatile compact lift mechanism, featuring a 1724mm drop, and a compact height of 240mm plus the height of the projector. The Si-200 has a small footprint that is ideal for projector installations where the space above the ceiling is limited. This projector lift is particularly designed for suspended ceiling installations and has been designed to come down and fit through a standard 600MM x 600MM suspended ceiling tile. The Si-200 is for small to medium-sized projectors with maximum dimensions of width 560mm x height 240mm x depth 550mm. The total net projector weight that can be supported is 15KG.
The Si-200 projector lift can lower the projector from the ceiling up to a total maximum drop of 1724mm. There are two dead stops for the projector drop and the return, making integrating and fine-tuning the projector lift into the ceiling easier. Included with the Si-200 lift is an up-and-down switch to aid installation; this can be upgraded to the Screen International RF remote control kit. Everything needed to attach a basic ceiling cover panel is included, including threaded rod and bushes. There is also an optional tile holder for textured or more delicate suspended ceiling tiles, helping to blend the installation further.
Hide your projector above the ceiling when it is not in use. When you are ready, press a button, and the projector slowly lowers into the room to the perfect height, ready to start your presentation or movie. Screen International make reliable projector lifts suitable for education, retail, corporate & residential customers looking for a cheap projector lift solution.
Key Features
- Outputs for 3rd Party Product Control
- Ceiling panel fixing system (ceiling panel not included)
- Safety bolts
- Full cable management
- Ultra-quiet motors
Optional Accessories
- RF remote control kit
- Suspended ceiling tile holder
Screen International Si200 Projector Lift Specifications
| Si200 Projector Lift Specifications | |
|---|---|
| maximum projector dimensions | W550mm x D560mm x H225mm |
| build in height (minimum ceiling void height) | 240mm + projector |
| total lift drop | 1724mm |
| lifting capacity | 15KG |
| height of lift | 240mm |
| input power | 100v to 240v ac |
| IR remote | Not provided but available |
| adjustable stroke | Y |
| warranty | 24 months |
For more information on the Si-200 lift please see the links below.
Product Downloads
Si-200 Projector Lift Product Presentation
Si-200 Installation Instructions
Optional Accessories Downloads
Technical Picture & Dimensions of Si200 Projector Lift
