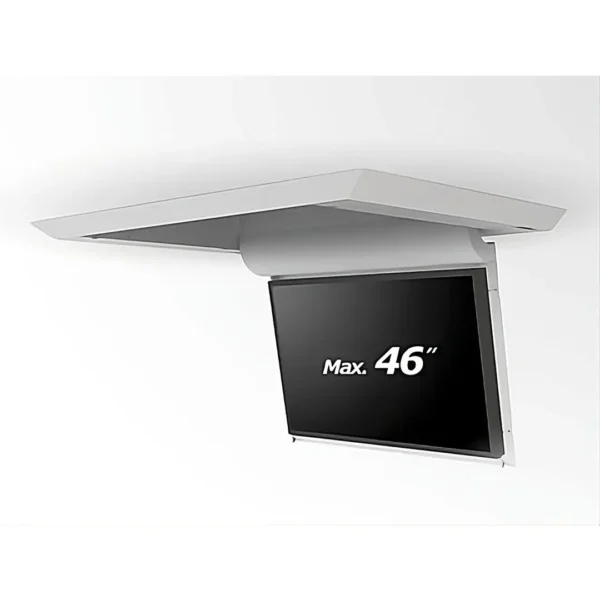

Surface Mounted Ceiling Hinge TV Lift System
If you are looking for a fold down TV lift system that’s easy to install to any ceiling then the surface mounted ceiling TV hinge is for you. Suitable for screens up to 46″ the hinge folds the TV down 100 degrees to a comfortable viewing position. No need to open the ceiling up or get any plastering done, installation couldn’t be easier. Complete with remote control and full instructions, suitable for indoor and marine environments with a locking panel.
- Description
- Specifications
- Q & A
- Downloads
- Reviews (0)
Description
Surface Mounted Ceiling Hinge TV Lift System
This ceiling hinge TV lift mechanism is a revolutionary product. Its main stand out feature is that its surface mounted making installation significantly easier. No need to prepare the ceiling structure or reinforce joists this fold down tv lift can be screwed directly to any existing ceiling. Its available in two models the SF650S which is for TV’s up to 32″ and the SF650 which is for TV’s above 32″ up to 46″.
The flip down tv lift comes complete with a integrated enclosure no need for any cutting into ceilings or plastering . The screen is concealed within the housing when not in use. With the press of a button the TV will fold downward through to 100 degrees for perfect viewing angle. The fold down tv unit is very shallow with a total height of only 100mm. this provides a unobtrusive solution that is sure to be very popular with DIY installations.
The unit is particularly useful where floor space is a premium or there is no other place to locate a TV. Common places are in bedrooms in front of patio doors and kitchens. The lift is marine suitable and can used on boats or as a outdoor fold down TV lift under cover.
The surface mounted ceiling TV lift mechanism can be controlled by RS232, contact closure and as standard. Other options include IR and RF remote control units.
Design Highlights
- Near Silent Motor System
- Only 100mm depth from ceiling
- Simple installation
- Range of sizes up to 46″”
- 0 to 100 degrees movement
- Marine suitable
AV Installs Ltd also offers full installation services for this product call us to discuss on Call 0800 669 660
| SF650 S / SF650 L Specifications | ||
|---|---|---|
| Model Number | SF650 S | SF650 L |
| Screen Size | Up to 32″ | Up to 46″ |
| Max Hole Spacing | 200 x 200mm | 400mm x 400mm |
| Max Weight Hold | 20kg | 20kg |
| Max Screen Dimensions | 980mm x 595mm x 50mm | 1120mm x 675mm x 50mm |
| Articulation | 0 to 100 degrees | 0 to 100 degrees |
| Articulation | W1267 x D999 x H105 | W1411 x D1081 x H105 |
| Articulation | White RAL 9016 | White RAL 9016 |
| Control | IR Remote, switch control & RS232 | IR Remote, switch control & RS232 |
Dimensions: W1267 x D999 x H105
