Venset TS750a

Description

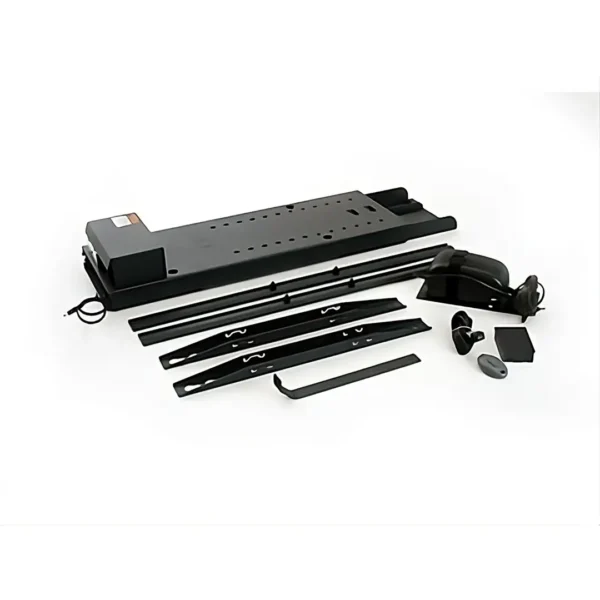

Venset TS750 Motorised TV Lift Mechanism

NO LONGER MANUFACTURED
Please take a look at the Venset TS1000a or the smaller Venset TS700a

Designed for medium to large LCD, LED and Plasma TV screens up to 52″, the TS750 offers a near-silent operation and is an ideal unit for flat screen TVs with a slightly larger VESA mounting pattern. The TS750 requires a total built-in height of 865mm. The lift is complete with an RF remote control unit as well as a manual rocker switch and can support an impressive 100kg peak load. The unit also features motor dead stops, allowing the lift to be programmed to a required height of up to 750mm. Additionally, it has a safety feature that stops the lift in the event of human contact with the leading components.

The TS 750 Motorised TV Lift can be used to raise a flat-screen TV from custom furniture or lower it from the ceiling. It comes as standard in raise mode, but full instructions are included to configure the unit to lower, making the lift very useful for ceiling TV Lift installations.

If you would like to talk to someone about any technical questions or need help deciding which lift mechanism would be suitable, please call 0800 669 6600

Key things to take into account when ordering a lift.

1. Your build-in height (minimum height required to house the TV Lift)
2. Your lift stroke (maximum travel on the lift for your TV to raise from the cabinet)

Helpful note
Please keep in mind the total height of your screen and add this to the thickness of the cabinet lid or opening from which the screen is coming. Also, add a little tolerance for the guard that protects your TV from making contact with the cabinet lid. This will be the total amount of lift or stroke required to raise and lower your TV screen from a cabinet or ceiling void.
If you’re in any doubt, please call 0800 669 6600
