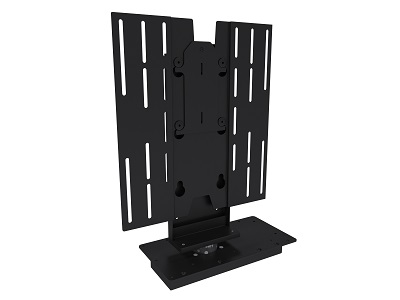

Future Automation TTR Table Top Rotator For Flat Screen TV's
The Future Automation TTR is designed for flat screen sizes up to 65". Custom versions of the TTR are available for larger screens upon request. The motorised mount provides a full 180 degree swivel action in both directions and comes complete with an IR remote control. The TTR comes as standard with a maximum 400 x 400 vesa mounting plate. The TV can be mounted inside a custom wooden box. This prevents the back and side being seen along with any un sightly cables. The TTR comes with full cable management routing through the mechanism. Some customers have even mounted artwork of the opposite side so you either have art work or TV dependant on how the TTR is rotated.
The Table Top TV Rotator is used in room dividers so that the same TV can be rotated and viewed in both rooms. They are also used in Kitchen Islands and counter tops again so that the TV can be viewed from more than one direction.
Design Features
- Allows a TV to be fully rotated and viewed from two rooms .
- Custom poles available when extra height is required.
- Full cable management.
- Complete with remote control.
- Super quiet and smooth action.
| TTR Specifications |
|---|
| Screen Size | Up to 65" |
| Max Hole Spacing | 400mm x 400mm (adaptor plates available) |
| Max Weight Hold | 40kg |
| Articulation | 0 to 180 degrees Clockwise or Anti Clockwise |
| Mechanism weight | 9kg |
| Control | IR Remote, switch control & RS232 |
Download Information
Technical Picture & Dimensions of the TTR Electric TV Rotator
