Future Automation WB-2S Wall Box
The Future Automation WB-2S is a in wall box designed to accommodate the PS range of articulated TV wall mounts and provide storage for auxiliary equipment behind the TV. Firstly the wall box is recessed into the wall. Allowing the PS TV bracket to fold back inside the WB-2S wall box so the TV sits flush on the wall with no gap. The larger wall box means more equipment can be hidden behind the TV like SKY boxes & One connect boxes. Offering a all in one solution for wall mounting a Samsung Frame TV and hiding the one connect box. Made in the UK from solid steel they come complete with a wall trim kit for the perfect finish.
Original price was: £395.99.£356.39Current price is: £356.39.
- Description
- Specifications
- Downloads
- Video & Pictures
- Q & A
- Reviews (0)
Description
Future Automation WB-2S Wall Boxes
The Future Automation WB-2S Two Stud Wall Box Range has been designed to compliment the PS range of articulated wall mounts. The extra large boxes are recessed into the wall so the wall mount retracts into the wall boxes providing a clean no gap installation with an articulated tv wall mount. Due to larger size there is plenty of room for auxiliary equipment like Sky Boxes, One Connect Boxes, Power Supply Units and a host of other third party devises. This is great for people who want a clean installation and don’t have a unit for any auxiliary equipment, this can all be kept behind and easily accessible with PS wall mount and WB-2S wall box.
The Wall Boxes are designed to mount in between a two stud bay and features metal edge trims which provide a clean finish, The Ps wall bracket has multiple mounting positions mount position can be adjusted laterally to change mount location relative to studs. The WB comes with in built cable tie anchors providing a neat and simple cable management solution complete with included cable tie’s, Cable knock out holes on all sides of the wall box to suit allowing multiple entry points for your service cables
When paired with a PS TV Bracket the WB-2S provides the ultimate wall mounting solution for Samsung The Frame TVs. The system provides a no gap articulated TV bracket for the frame TV. Not only this but you can hide the bulky one connect box behind the TV along with any other devices like.
- Samsung One Connect
- Leon OTO MCA 200
- Power Conditioners e.g. BlueBolt SM-3 Pro
- SnapAV OVRc Compact Power Conditioner
- HD Anywhere Distribution Units
- Apple TV Boxes
- Fire TV Boxes
- HDMI Baluns
- Mini Amplifiers
- Sky Go / Satellite Receiver Boxes

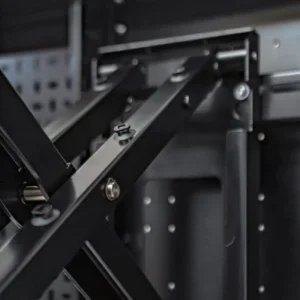

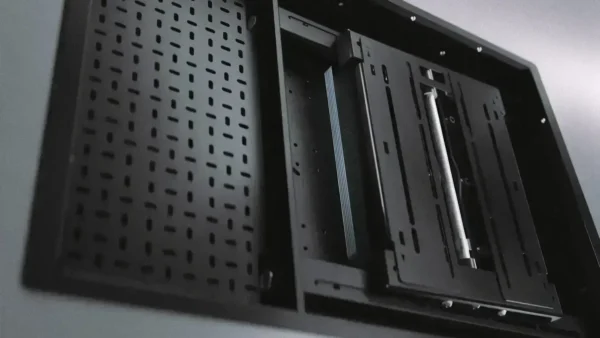

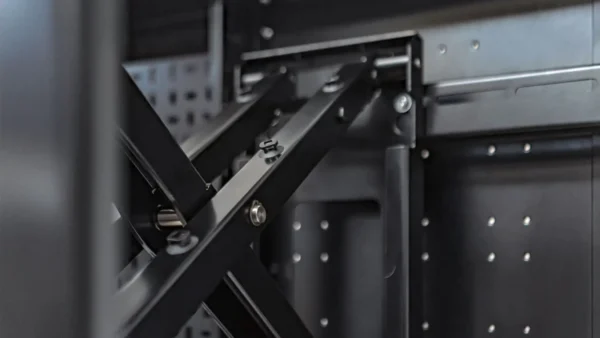

Example of Samsung Frame TV, PS Articulated Wall Mount & WB16-2S Wall Box
Please see compatible PS TV Brackets below
| 2S WALL BOX | PS TV BRACKET | TV SIZE | MAX WEIGHT |
|---|---|---|---|
| WB16-2S | PS32 (ONE CENTRAL MOUNTING POSITION) | 32″ – 43″ | 60KG |
| WB21-2S | PS40 (ONE CENTRAL MOUNTING POSITION) | 40″ – 75″ | 60KG |
| WB26-2S | PS40Â (THREE VERTICAL MOUNTING POSITIONS)
PS55 (ONE CENTRAL MOUNTING POSITION |
55″ – 75″ | 60KG |
| WB31-2S | PS40 (THREE VERTICAL MOUNTING POSITIONS)
PS55 (THREE VERTICAL MOUNTING POSITIONS) PS65 (ONE CENTRAL MOUNTING POSITION) |
65″ – 85″ | 120KG |
If you are unsure what wall box or TV bracket you need, or just need some help our friendly staff are here to serve and always happy to help.
Future Automation WB-2S Wall Box Specifications
| PRODUCT CODE | WB16-2S | WB21-2S | WB26-2S | WB31-2S |
|---|---|---|---|---|
| FINISH (CUSTOM AVAILABLE) | BLACK PAINT – RAL 9005 | BLACK PAINT – RAL 9005 | BLACK PAINT – RAL 9005 | BLACK PAINT – RAL 9005 |
| IN WALL DIMENSIONS (H X W X D) | 403 X 624 X 96.5MM (15.9 X 24.6 X 3.8″) | 537 X 760 X 96.5MM (21.1 X 30 X 3.8″) | 665 X 760 X 96.5MM (26.2 X 30 X 3.8″) | 792 X 760 X 96.5MM (31.2 X 30 X 3.8″) |
| MAX ACCESSORY CLAMP DEPTH | 53.5MM (2.1″) | 53.5MM (2.1″) | 53.5MM (2.1″) | 53.5MM (2.1″) |
| PS BRACKET COMPATIBILITY | PS32Â (ONE CENTRAL MOUNTING POSITION) | PS40Â (ONE CENTRAL MOUNTING POSITION) | PS40Â (THREE VERTICAL MOUNTING POSITIONS) PS55Â (ONE CENTRAL MOUNTING POSITION) |
PS40Â (THREE VERTICAL MOUNTING POSITIONS) PS55Â (THREE VERTICAL MOUNTING POSITIONS) PS65Â (ONE CENTRAL MOUNTING POSITION) |
| SAMSUNG FRAME TV COMPATIBILITY | 32″ THE FRAME 43″ THE FRAME |
50″ THE FRAME
65″ THE FRAME 75″ THE FRAME |
50″ THE FRAME
65″ THE FRAME 75″ THE FRAME |
65″ THE FRAME
75″ THE FRAME 85″ THE FRAME |
| WHAT’S INCLUDED | 1 X WALL BOX 3 X PAIRS OF CLAMP BRACKETS 2 X PS BRACKET MOUNT RAILS 2 X HORIZONTAL TRIM STRIPS 2 X VERTICAL TRIM STRIPS |
1 X WALL BOX 3 X PAIRS OF CLAMP BRACKETS 2 X PS BRACKET MOUNT RAILS 2 X HORIZONTAL TRIM STRIPS 2 X VERTICAL TRIM STRIPS |
1 X WALL BOX 3 X PAIRS OF”” CLAMP BRACKETS 2 X PS BRACKET MOUNT RAILS 2 X HORIZONTAL TRIM STRIPS 2 X VERTICAL TRIM STRIPS |
1 X WALL BOX 3 X PAIRS OF CLAMP BRACKETS 2 X PS BRACKET MOUNT RAILS 2 X HORIZONTAL TRIM STRIPS 2 X VERTICAL TRIM STRIPS |
For more information on the WB-2S Wall Box please see the links below.
Product Downloads
Technical Picture & Dimensions of WB Range
