Future Automation CHRT Ceiling Hinge & Telescope
The Future Automation CHRT Fold Down TV Lift with Telescopic Drop is an innovative new product that hides a TV in the ceiling when not in use. With the press of a button, the motorised CHRT folds down the TV smoothly and provides extra drop with a telescopic lift that lowers the TV further. This is perfect if you have particularly tall ceilings or for end of bed TV, The CHRT hinge down TV lift with extra drop is available in 5 different versions catering for TV’s from 40″ up to 86″, The CHRT ceiling TV lift comes with a unique plaster in edge kit for seamless integration into your ceiling with no visible bezel or trim. Made in the UK and built to last, if you’re looking for a hidden TV that flips down from the ceiling and then drops further into the room, the CHRT is the perfect choice. We don’t just sell ceiling TV lifts; we also install them. If you have any questions, please get in touch with us here.
- Description
- Specifications
- Q & A
- Downloads
- Video & Pictures
- Reviews (0)
Description
Future Automation CHRT Drop Down TV Lift With Telescopic Lowering

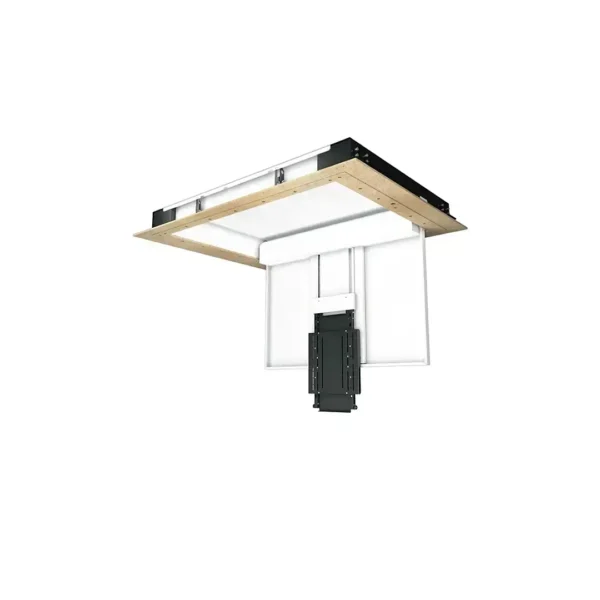

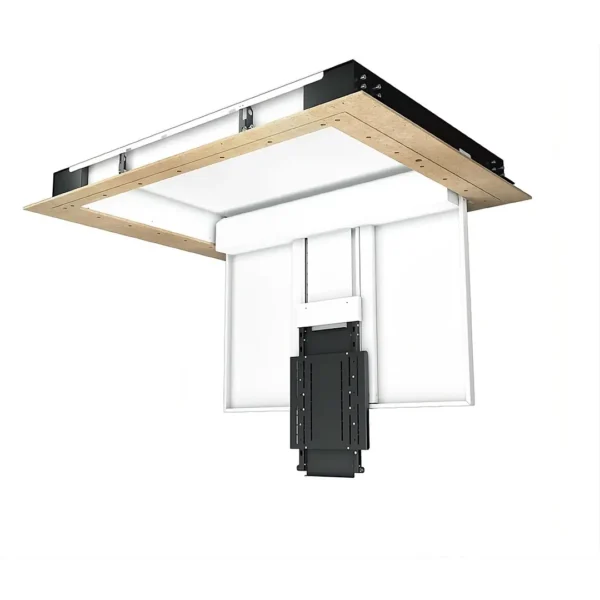

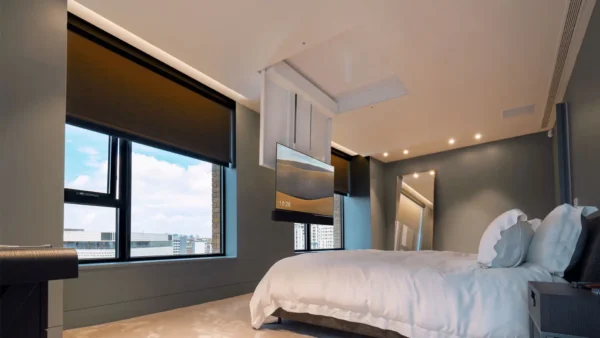

The Future Automation CHRT is a fantastic new solution for hiding a flat-screen TV in residential homes or anywhere with a plasterboard ceiling. A built-in ceiling hinge drop-down TV lift that folds down 90 degrees, then lowers the TV further into the room using the telescopic feature. When you’re not watching TV, the screen is completely hidden in the ceiling, folded up out of sight. With the press of a button, the lift gently lowers the TV from the ceiling. Available in five different models, the CHRT ceiling TV Lift is suitable for flat screen TVs from 40″ right up to 86″.

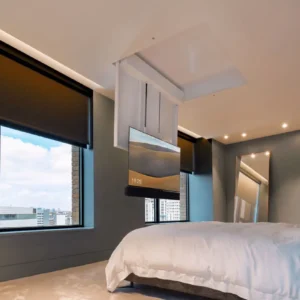

The CHRT series is ideal for relatively small ceiling void areas or when you have limited floor and wall space, allowing televisions to be concealed unobtrusively when not in use. Furthermore, the additional telescopic vertical drop makes this particularly useful for customers with high ceilings.
Scroll down to see a video of the CHRT in action.
| PRODUCT | MAX SCREEN DIMENSIONS | MAX SCREEN WEIGHT |
|---|---|---|
| CHRT4 | 680 X 1130 X 100MM | 60KG |
| CHRT5 | 800 X 1330 X 100MM | 40KG |
| CHRT6 | 920 X 1530 X 100MM | 90KG |
| CHRT7 | 1010 X 1730 X 100MM | 65KG |
| CHRT8 | 1110 X 1980 X 150MM | 125KG |

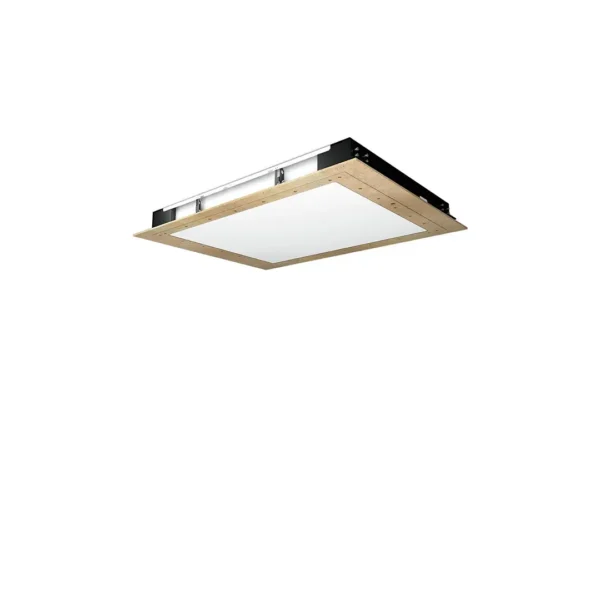

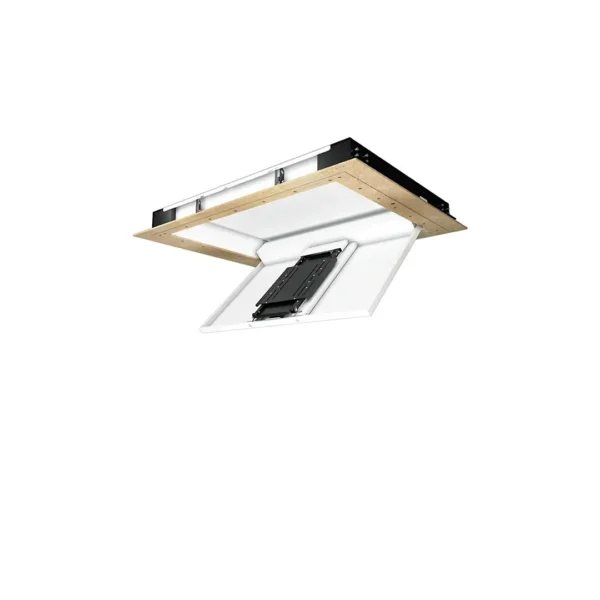

The new Future Automation CHRT range features an MDF “Plaster In Edge”, which allows for a neat installation into the ceiling, designed to eliminate any visibility on the ceiling flange around the mechanism itself. This fantastic new addition helps create a seamless installation with only the thinnest of shadow gaps around the lid when closed. All CHRT units are shipped as a single, complete unit, ready for installation. This dramatically reduces the chance of errors during installation and streamlines the entire process.
The CHRT range of ceiling hinge TV lift mechanisms can be controlled by RS232, contact closure, and, as standard, comes complete with an IR remote control, making it fully integratable with most brands of home automation control systems. Also available is an RF remote option, which allows the lift to operate remotely out of line of sight —a handy addition if the unit is not being configured to an existing control system.
CHRT Lift Presentation video: click below to watch.
CHRT Drop Down TV Lift Hinge Design Highlights
- Near Silent Motor System
- Compact design for minimum spatial requirements
- Additional Telescopic action
- HDF “Plaster In Edge” for neat installation into the ceiling
- Modular Format ensures simple installation
- Range of sizes from 40″ up to 86″
- 0 to 90 degrees hinge movement
Future Automation CHRT Fold Down TV Lift WIth Extra Drop Specifications
| PRODUCT CODE | CHRT4 | CHRT5 | CHRT6 | CHRT7 | CHRT8 |
|---|---|---|---|---|---|
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR |
| FINISH (CUSTOM AVAILABLE) | WHITE PAINT – RAL9910 | WHITE PAINT – RAL9910 | WHITE PAINT – RAL9910 | WHITE PAINT – RAL9910 | WHITE PAINT – RAL9910 |
| HEIGHT WITHIN CEILING | 210MM(8.3″) | 210MM(8.3″) | 210MM(8.3″) | 210MM(8.3″) | 270MM (10.6″) |
| MAX SCREEN DIMENSIONS (HXWXD) | 680 X 1130 X 100MM (26.8 X 44.5 X 3.9″) | 800 X 1330 X 100MM (31.5 X 52.4 X 3.9″) | 920 X 1530 X 100MM (36.2 X 60.2 X 3.9″) | 1010 X 1730 X 100MM (39.8 X 68.1 X 3.9″) | 1110 X 1980 X 150MM (43.7 X 78 X 5.9″) |
| MAX SCREEN WEIGHT | 60KG (132LBS) | 40KG (88LBS) | 90KG (198LBS) | 65KG (143LBS) | 125KG (276LBS) |
| MECHANISM WEIGHT (APPROX) | 120KG (265LBS) | 140KG (309LBS) | 165KG (364LBS) | 190KG (419LBS) | 250KG (551LBS) |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED | MOTORISED | MOTORISED |
Q & A
Ask a question
Future Automation CHRT Ceiling Hinge & Telescope
Your question
* Question is required
Name
* Name is required
Email
* Email is required
* Please tick the checkbox to proceed
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
There are no questions yet
CHRT Ceiling TV Lift Product Downloads
CHRT Ceiling TV Lift Presentation Videos
Future Automation Presentation Video
Be the first to review “Future Automation CHRT Ceiling Hinge & Telescope”
You must be logged in to post a review.
Similar Products
Related Products
-

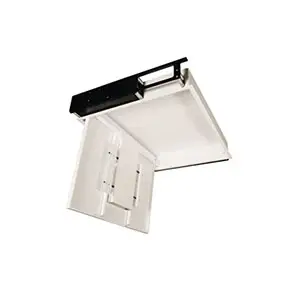

Flip Down / Inverted Ceiling Screen Lifts, Pop Up Flat Screen TV Lift
