Name: Future Automation DA Double Arm Articulated TV Mount
SKU: DA
Availability: InStock

-10%

Future Automation DA Double Arm Articulated TV Mount

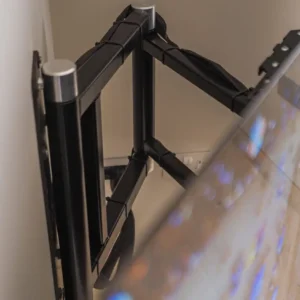

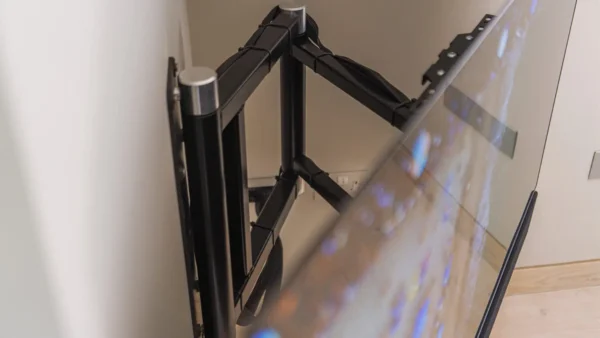

future automation DA heavy duty articulating TV Wall MOunt

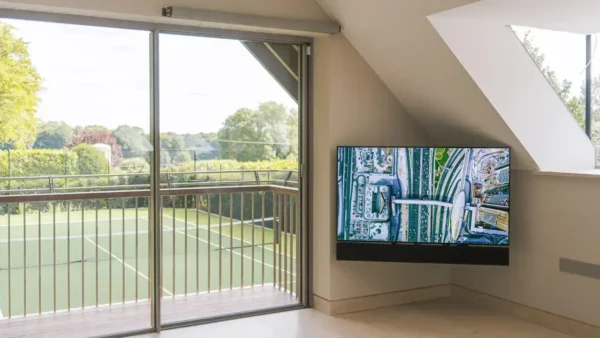

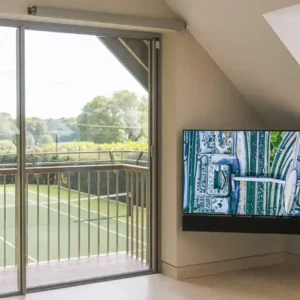

A TV and soundbar mounted in the corner of a room using the future automation DA articulated tv mount

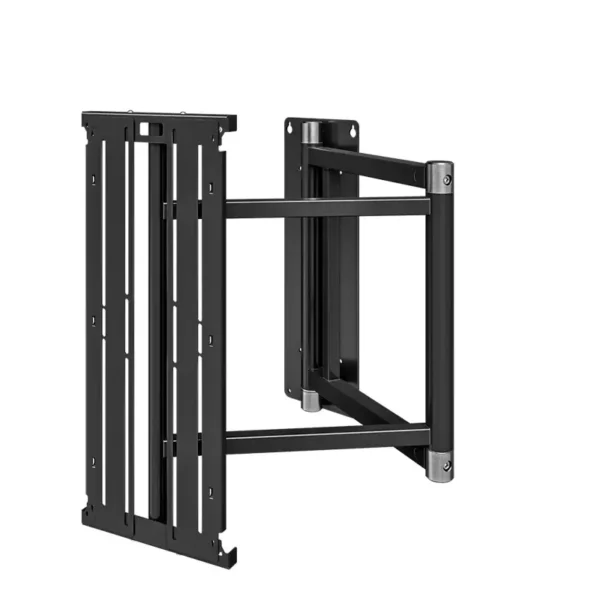

future automation DA4 articulated TV Bracket open

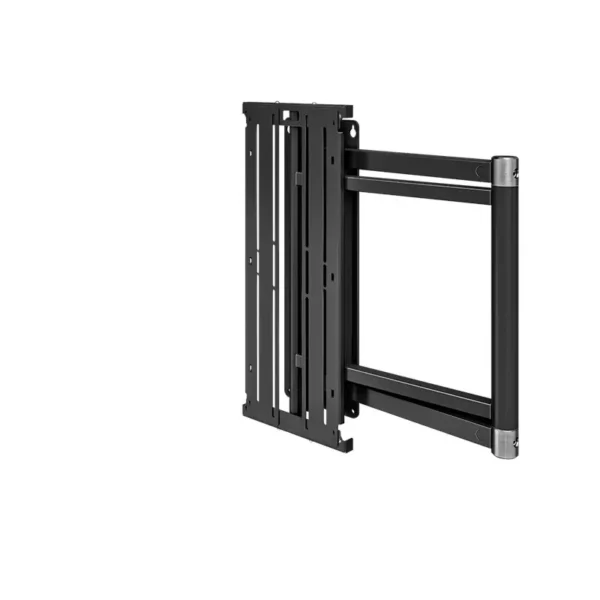

future automation DA4 articulated TV Bracket closed

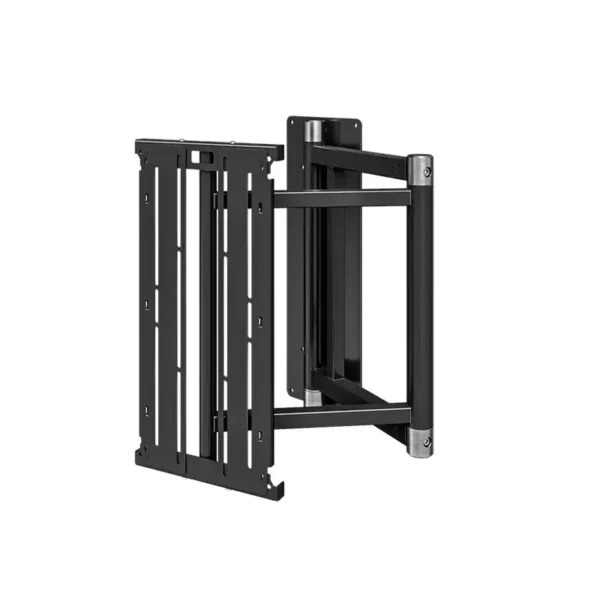

future automation DA3 articulating TV mount open

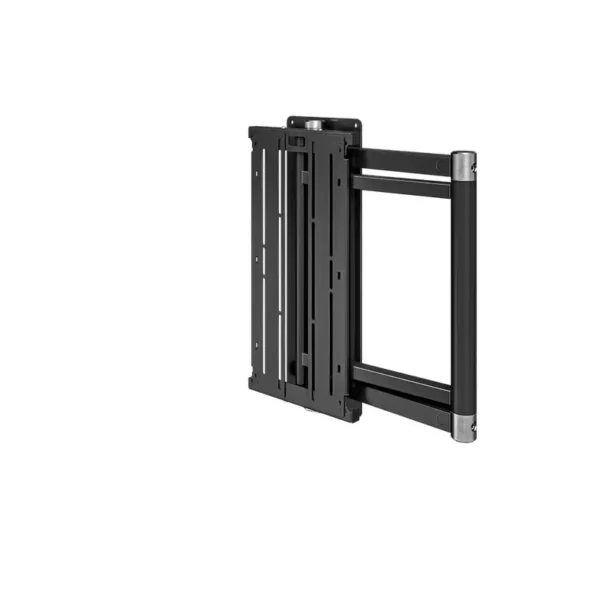

future automation DA3 articulating TV mount closed

future automation DA2 TV mount bracket open

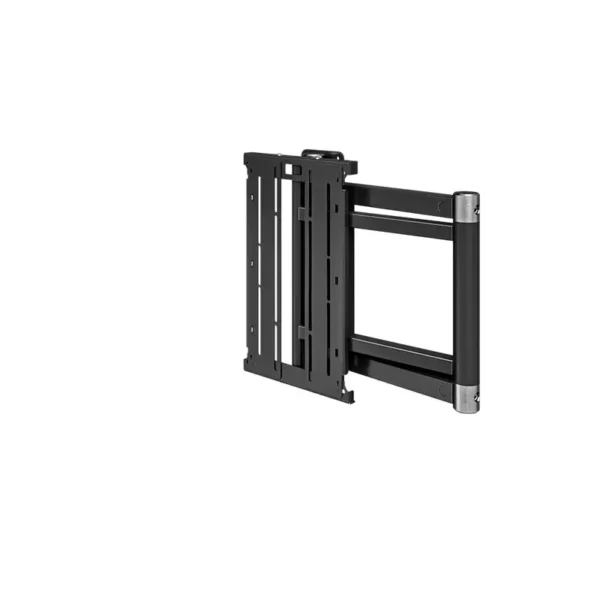

future automation DA2 TV mount bracket closed

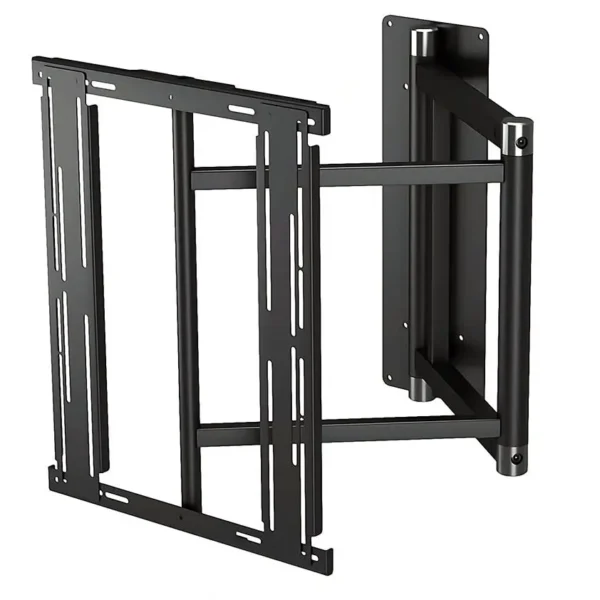

Future Automation DA Double Arm Articulated TV Mount

The Future Automation DA series is a legendary TV mount that offers maximum manual articulation of any bracket on the market. The DA comes in four versions, catering to screens from 32″ to 75″, with a maximum weight of 30 kg. This heavy-duty full-motion mount allows a TV to be pulled forward from the wall up to 1000mm and rotated in any direction. They can be used to turn TVs 180 degrees, allowing them to be viewed from other areas. Made from solid steel and premium joints, the DA provides a smooth full motion, allowing the TV to be moved with ease. Furthermore, the DA holds the TV perfectly level, even when fully extended and rotated, with no drooping, unlike cheaper brackets. It is also possible to customise the length of each arm on the DA for any awkward installations where a standard wall mount just won’t fit. Made in the UK and designed to last a lifetime.

Original price was: £809.00.Current price is: £728.10.

Model: DA

Add to wishlist

Description

Future Automation DA Double Arm Articulated Wall Mount

The DA double-arm articulated TV mount is a heavy-duty, full-motion TV wall mount that allows TVs to be pulled forward and rotated over 90 degrees in any direction. Made from solid steel and high-quality joints, the DA is capable of supporting a TV of up to 30KG safely and securely. Featuring a double arm design with heavy-duty joints for maximum strength and articulation. The DA is easy to move around; it holds the TV perfectly level, even when fully extended and rotated, with no sagging or drooping, unlike the cheaper mounts. It features a universal TV mounting plate that supports VESA up to 600mm x 600mm. The DA comes in four different models, catering to screens ranging from 32″ to 75″. Please see the table below.

PRODUCT CODE	DA1	DA2	DA3	DA4
RECOMMENDED SCREEN SIZES	32″ – 42″	40″ – 75″	55″ – 75″	65″ – 75″

The DA can be customised; each arm is available with a maximum length of 500mm, so in total, a 1000mm extension from the wall is possible when open. This feature makes the DA TV bracket extremely useful, as it solves many awkward installation problems. The Future Automation DA double-arm articulated TV mount is perfect for wall mounting a TV in the corner of the room. You can also use a DA to pull a TV out from a deep alcove or around the corner of a room, allowing it to be viewed from an adjacent area. You can pull a TV out and turn it 180 degrees back around on itself, allowing you to watch it from the opposite side.

PRODUCT CODE	DA1	DA2	DA3	DA4
MAX EXTENSION FROM WALL	857MM (33.7″)	857MM (33.7″)	857MM (33.7″)	1057MM (41.6″)
MIN DEPTH FROM WALL	100MM (3.9″)	105MM (4.13″)	105MM (4.13″)	110MM (4.33″)

installation examples of the DA double arm articulated tv mount

Storing the screen in a deep recess or alcove, and still being able to move the TV screen out and around to a required viewing angle.
To store the screen facing one direction and still be able to move the screen up to 180 degrees around a corner to another viewing area.
To fix the screen to one wall of a room, using a corner installation.

The DA is made from solid steel, which is powder-coated black with brushed aluminium caps, making it robust and attractive. They are made in the UK and built to last a lifetime. The DA can be paired with any of the soundbar brackets in the range, ensuring everything is attached to the DA and moves with the TV. An optional wall box is available, allowing the DA TV bracket to fold away back inside the recessed wall box, providing a no-gap, flush-to-wall TV Mount. For more information on the WB-DA wall box, click here

AV Installs Ltd also offers a comprehensive range of Installation Services. Give us a call today on 0800 669 6600

trading standards but with confidence logo

Future Automation DA Heavy Duty Articulated TV Mount Specifications

PRODUCT CODE	DA1	DA2	DA3	DA4
BOLT PATTERN	(H) 300, 200, 100 (W) 400, 300, 200, 100	(H) 400, 300, 200, 100 (W) 400, 300, 200, 100	(H) 400, 300, 200, 100 (W) 400, 300, 200, 100	(H) 600, 500, 400, 300, 200, 100 (W) 400, 300, 200, 100
FINISH	RAL 9005 BLACK (SATIN) WITH BRUSHED ALUMINIUM CAPS – CUSTOM AVAILABLE	RAL 9005 BLACK (SATIN) WITH BRUSHED ALUMINIUM CAPS – CUSTOM AVAILABLE	RAL 9005 BLACK (SATIN) WITH BRUSHED ALUMINIUM CAPS – CUSTOM AVAILABLE	RAL 9005 BLACK (SATIN) WITH BRUSHED ALUMINIUM CAPS – CUSTOM AVAILABLE
MARINE SUITABLE	NO	NO	NO	NO
MAX EXTENSION FROM WALL	857MM (33.7″)	857MM (33.7″)	857MM (33.7″)	1057MM (41.6″)
MAX ROTATION	UP TO 90° (BIDIRECTIONAL)	UP TO 90° (BIDIRECTIONAL)	UP TO 90° (BIDIRECTIONAL)	UP TO 90° (BIDIRECTIONAL)
MAX SCREEN DIMENSIONS	LIMITED BY WEIGHT AND DESIRED ROTATION ANGLE	LIMITED BY WEIGHT AND DESIRED ROTATION ANGLE	LIMITED BY WEIGHT AND DESIRED ROTATION ANGLE	LIMITED BY WEIGHT AND DESIRED ROTATION ANGLE
MAX WEIGHT CAPACITY	30KG (66LBS)	30KG (66LBS)	30KG (66LBS)	30KG (66LBS)
MIN DEPTH FROM WALL	100MM (3.9″)	105MM (4.13″)	105MM (4.13″)	110MM (4.33″)
MOVEMENT TYPE	MANUAL	MANUAL	MANUAL	MANUAL
OUTDOOR SUITABLE	NO	NO	NO	NO
PRODUCT WEIGHT	15KG (33LBS)	18KG (40LBS)	24KG (53LBS)	26KG (57LBS)
RECOMMENDED SCREEN SIZES	32″ – 42″	40″ – 75″	55″ – 75″	65″ – 75″
