Future Automation FSA2 Pull Out And Rotate TV Bracket

The Future Automation FSA2 is a stunning pull out articulated TV bracket made for TV sizes from 26 inches up to 37 inches. Larger screens can be mounted, but full articulation won’t be achieved. The Double arm design allows the TV to be pulled away from the wall, and rotated in either direction up to 90 degrees. When the TV is folded back the FSA2 sits just 74mm of the wall, when full extended, it holds the TV 486mm away from the wall. The TV mounting plate supports Vesa mounting patterns, 100 X 100 and 200 X 200.  The FSA2 has been designed to be aeshtetcily attractive, manufactured form anodised aluminium. Made in the UK it not only looks fantastic! it can support TVs up to 15KG. The FSA2 effortlessly holds the TV solid without no wobbling or vibration even when fully extended.

let's talk contact page button

Original price was: £457.99.Current price is: £412.20.

View cart
Model: FSA2
Add to wishlist

Description

Future Automation FSA2 Pull Out And Rotate TV Wall Bracket

The FSA2 is a stylish TV wall bracket made from anodised aluminium, featuring a double arm that articulates and superior rotating joints. Combined, this provides an attractive TV bracket that is easy to move and remains level even when fully extended from the wall with no sagging. The Future Automation FSA2 lets a TV be pulled out from the wall and rotated in both directions up to 90 degrees. The superior design and materials ensure your TV not only looks great when pulled away from the wall, but it won’t wobble like cheaper brackets. The FSA2 pull-out and rotate TV bracket features a TV mounting plate that supports VESA 100 x 100 and 200 x 200. Suitable for monitor and TV sizes from 26 inches up to 37 inches, larger screens can be used, but you won’t achieve the full 90 degrees rotation.

The Future Automation FSA2 swivel TV mount is not only impressive, but it’s also incredibly strong, allowing for easy extension and rotation of a screen weighing up to 15 kg. The superior articulating joints and double-arm design mean the FSA2 stands only 73mm from the wall when fully closed. When the TV is pulled away from the wall and fully extended, it stands 486mm, allowing a TV up to 37 inches to be rotated in any direction. Another great feature is that the FSA2 can be tilted up to 5 degrees, allowing TVs to be mounted higher if required. The superior design features and anodised aluminium mean the FSA2 looks great even when the TV is fully pulled out. If you’re looking for a low-profile pull-out and swing TV mount that is easy to move and packed with installer-friendly features, the FSA2 is the prefered choice of AV professionals.

FULL RANGE OF DOUBLE ARM TV BRACKETS TO SUIT All TV SIZES
APPROX TV SIZES MAX WEIGHT MAX EXTENSION MODEL NO
15″-26″ 10KG 349MM FSA1
26″-37″ 15KG 486MM FSA2
32″- 75″ 30KG 1000MM DA

There is also a wall box available for the FSA2, which allows the bracket to be recessed into a wall, so the TV is entirely flush with the wall when returned.

There is also an adaptor plate, the AP-FR32, so that the FSA2 TV mount can be used with the Samsung 32 inch Frame TV so that you can have a 90 degrees articulated TV bracket.

AV Installs Ltd also offers a comprehensive range of Installation Services. Give us a call today on 0800 669 6600

let's talk contact page buttontrading standards but with confidence logo

Future Automation FSA2 Pull Out And Turn TV Bracket

MODEL NO FSA2
BOLT PATTERN (H) 200, 100, 75 (W) 200, 100, 75
FINISH ANODISED ALUMINIUM
MARINE SUITABLE NO
MAX EXTENSION FROM WALL 486MM (19.13″)
MAX ROTATION UP TO 180° BOTH WAYS
MAX SCREEN DIMENSIONS LIMITED BY WEIGHT AND DESIRED ROTATION ANGLE
MAX WEIGHT CAPACITY 15KG (33LBS)
MIN DEPTH FROM WALL 74mm (2.9″)
MOVEMENT TYPE MANUAL
OUTDOOR SUITABLE NO
RECOMMENDED SCREEN SIZES 26-37″

let's talk contact page buttontrading standards but with confidence logo

For more information on the FSA2 TV Bracket please see the links below.

Product Downloads

FSA2 Technical Sheet

FSA2 Installation Instructions

let's talk contact page button

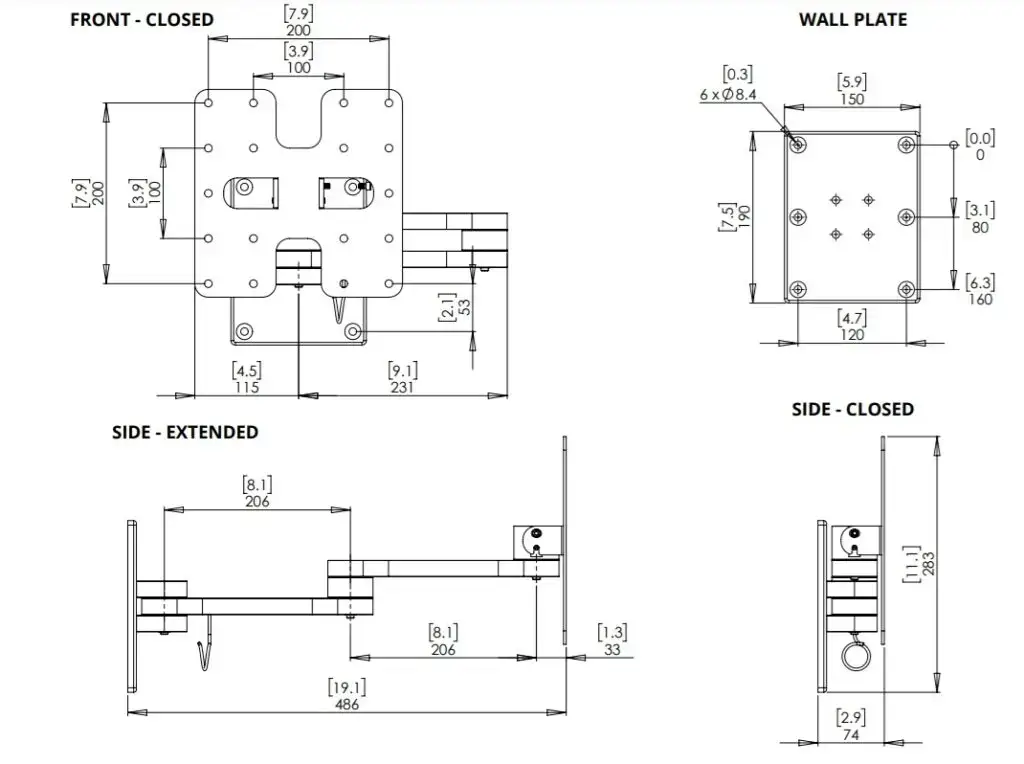

Technical Picture & Dimensions of FSA2 Articulated Pull Out TV bracket
