Future Automation LSH / I-LSH Up to 110″
The Future Automation LSH TV Lift & I-LSH ceiling Lift is a heavy duty lift capable of lifting screens from 75″ to 110″ with a maximum load of 100kg It can be used to raise a TV from a cabinet or in reverse to lower a TV from within a ceiling. The LSH are made to order for each individual screen ensuring the most height efficient lift available. The lift can be used to raise a hinged lid up or a screen enclosure to encase the TV so the sides and rear are hidden. Complete with remote control and cabinet instructions the LSH can lift the largest of TV’s safely with ease.
- Description
- Specification
- Downloads
- Video & Pictures
- Q & A
- Reviews (0)
Description

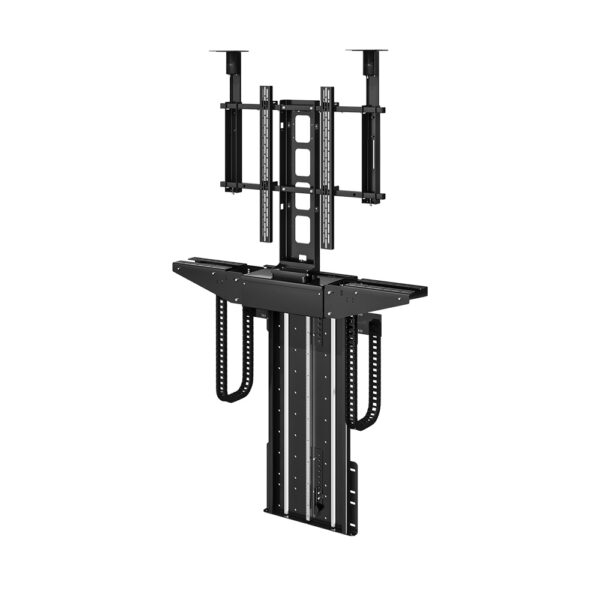

Future Automation LSH TV Lift & I-LSH Heavy Duty Ceiling Lift Mechanism
The Future Automation LSH & I-LSH flat screen TV Lift mechanism is a heavy duty lift designed for large format screens and is suitable for screen sizes from 75 inch to 110 inch. The LSH TV lift is made for each screens exact size allowing cabinet makers to keep build in height requirements to a minimum. This is essential when housing large format screens in cabinets.
As with all Future Automation lifts the lift features a near silent motor system which raises a screen from within a cabinet up into the correct viewing position. The operation is smooth without any juddering or vibration unlike the cheaper budget lifts.
The LSH TV lifting mechanism comes with two ways of opening the cabinet lid. Cabinet makers can either use the supplied push rod to operate a hinged push up flap as the TV is raised. The LSH can also raise a base board to fill in the aperture when the TV is in the raised position. Alternatively the TV can be completely enclosed in a box enclosure which allows the back and side of the TV to be hidden when extended. This is a great option if you are making an end of bed Tv cabinet or installing a TV lift in the ceiling to lower a TV.
The LSH & I-LSH TV lift mechanism can be controlled by RS232, contact closure and as standard comes complete with an IR remote control making it fully compatible with most brands of home automation control systems. Also available is a RF remote option which will allow the lift to operate by remote out of the line of sight, a handy addition if the unit is not being configured to an existing control system.
Design Features:
- Screen sizes 75″ to 110″
- Custom design and build for your tv size
- Full cable management.
- Can be used in inverted to lower from a ceiling.
- 24V DC motor. Suitable for direct DC supply.
- Marine suitable robust beam.
- Push Flap & TV Box Enclosure System
- IR Remote controlled included.
- Optional RF remote on request.
AV Installs also supplies this Lift with a 180 degree swivel action the LSH-S– for more info click here
If you require any assistance please don’t hesitate to call Call 0800 669 6600
| Specifications | |
|---|---|
| Model No | LSH & I-LSH |
| Approximate Screen Size | 75″ to 110″ |
| Max Screen Screen Height | Custom to your screen |
| Internal Cabinet Height | Custom to your screen |
| Movement Type | Vertical Lift |
| Power Supply | 240v or 110v |
| Control | IR Remote, switch control & RS232 |
For more information please see the links below.
Product Downloads
Because the LSH & I-LSH TV Lift is a custom item there are no standard tech sheets or instruction these are issued with each individual lift, however please see below some examples that may help, for more information please get in contact on Call 0800 669 6600
lsh Sam85qn90csb 85″ TV Lift tech
lsh-sam85qn90c 85″ TV Lift tech
