Venset TS600B from 19″ to 40″
Venset TS600b TV Lift Mechanism is the most compact lift available. The TS600b telescopic design provides 600 mm of travel from a built-in height of only 500 mm (excluding the lid lifter). Designed for small to medium-sized flat-screen TVs up to 42 inches. The TS600b has a depth of only 45mm and supports a maximum peak load of 8kg. Complete with a manual rocker switch and RF remote kit, the TS600b makes a great compact, affordable lift, perfect for smaller, lightweight TVs
Original price was: £418.80.£351.38Current price is: £351.38.
- Description
- Specifications
- Downloads
- Video & Pictures
- Q & A (6)
- Reviews (5)
Description

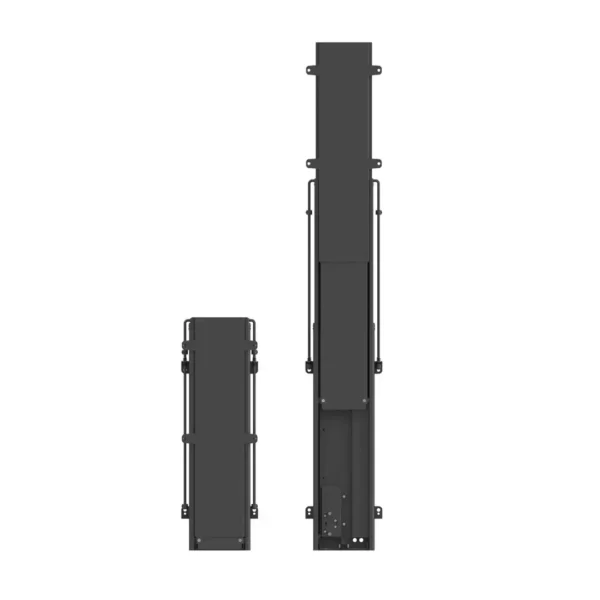

Venset TS600b TV Lift Mechanism
Designed for small to medium-sized modern flat-screen TVs up to 40 inches with a maximum peak weight of 8kg. The TS600b is our most Lightweight compact lift. It requires a minimum built-in height of 500 mm, making it ideal for smaller screens. The lift offers an incredible lifting stroke of 600mm due to its telescopic design. The TS600b also boasts an extremely low profile at only 45mm deep. This lets cabinet makers keep height and depth down when needed, making the lift usable for installation almost anywhere.
The TS600b Lift suits many other applications that require a lift mechanism. It can operate as a lifter, upside down to lower, or horizontally, making it an ideal furniture lift, ceiling lift, or even a horizontal picture slider. This lets you conceal your TV in multiple ways when it’s not in use. It comes as standard in raise mode, but full instructions are included to configure the unit to lower. The Venset range of lifts suits all kinds of projects. They are often used to lower microwaves and other kitchen appliances from cupboards, or to raise them from kitchen counters/islands.
Additional Design Features of the TS660b
The design of the lift allows the user, if required to adjust the total stroke of the lifting action up to a total maximum stroke of 600mm the total stroke can can be adjusted this allows the installer to finely tune the total height that the lift comes out of the cabinet, extremely handy if you are planning to fit a baseboard. In addition, the lift features an anti-squeeze safety mechanism: if the moving parts meet an obstacle during operation, the lift will stop and reverse.
Another great design feature is the back of the TS600B: it is completely flat, with no protruding screws or intrusive features. This makes the lift ideal for installations where the lift is visible from the rear, such as in an end-of-bed TV Lift cabinet or for raising a monitor from a desk.

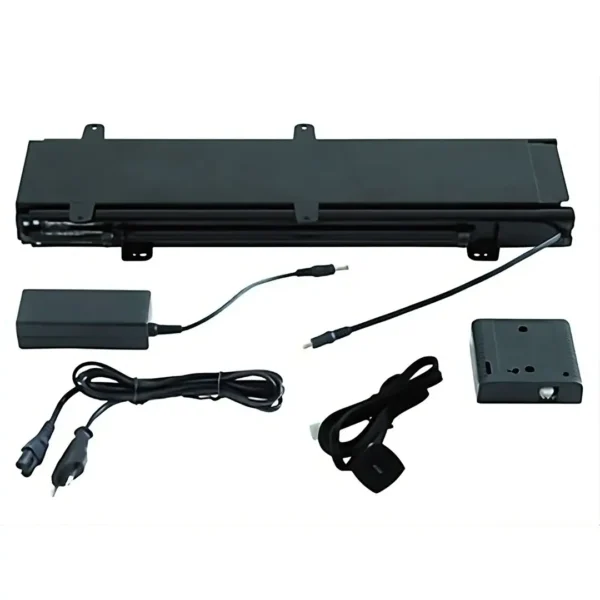

What’s in the Box?
The Venset TV lift comes with an RF remote control system and a single key fob remote handset. You don’t need to be in line of sight for the remote to work. The receiver can be concealed within the cabinet; it also includes a manual panel-mounted rocker switch. The Lift supports all VESA mounting patterns from 100 x 100 up to a maximum of 200 x 200. A Lid lifter attachment is also included to protect your TV from striking the lid. Everything required is in the box except for the mounting bolts required to fix your TV to the Lift.
If you would like to talk to someone about any technical questions or need help deciding which lift mechanism would be suitable, give one of our experts a call on 0800 669 6600
Key things to take into account when ordering a lift.
1. Your built-in height (minimum height required inside the cabinet to house the TV Lift)
2. Your lift stroke (maximum travel on the lift for your TV to be raised from the cabinet)
To ensure smooth operation, measure your screen’s total height and add allowances for the cabinet lid or opening, so you can achieve a perfect fit without surprises.
Additional Accessories Available
TV Power Switch (click here)
This is a great eco addition to any cabinet project and can be fitted so that, when the cabinet lid closes, the power is cut off to the TV, so it is not left on standby using electricity when not in use.
IR Remote Control (click here)
This additional control system uses infrared and is ideal when integrating the lift into a universal learning remote or a larger home automation project.
| TS600b Specifications | |
|---|---|
| maximum screen size | up to 42″ |
| build in height(excluding lifter) | 500mm |
| total lifting stroke | 600mm |
| toatl lift range | 500mm to 1100mm |
| lifting capacity | 8kg |
| depth of lift | 45mm |
| lid lifter | Y |
| input power | 100v to 240v ac |
| vesa mounting | 200×200, 200×100, 100×100 |
| TV mounting brackets | Y horizontal |
| manual switch | Y |
| RF remote | Y |
| adjustable stroke | Y |
| anti squeeze safety | Y |
| reversible operation | Y |
| warranty | 12 months |
For more information, please see the links below.
Product Downloads
mounting_instruction_TS600B
Remote-Control-Alternatives
troubleshooting-ts600b
TS600B_product_presentation
venset brochure

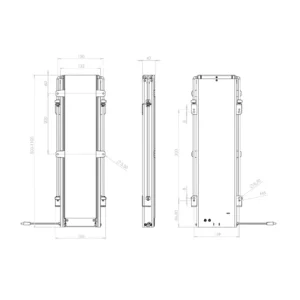

Technical Picture & Dimensions of Venset TS600b TV Lift
Q & A
Venset TS600B from 19" to 40"
Hi Ben there is an optional IR kit that can be ordered with this lift.
Hi Carl Thanks for reaching out to us my apologies that you are experiencing some issues. It seems as though the handset is faulty if the little blue light does not flicker then it suggests that the battery or unit is faulty. I have arranged for another handset to be shipped out to you today. All the best AV Installs Ltd
Dear moshe mizrachi thanks for reaching out to us, please contact us directly on info@avinstalls.co.uk for this enquiry Many Thanks
HI Norma Thanks for reaching out to us, the minimum build in height for the TS600 is 500 mm plus the lid lifter, if you require any further help please don't hesitate to get in touch 0800 669 66 00
Hi Helen The 200 x 200 mounting plate is included with the TV lift pack and will come in the box with everything else.
Related Products
Upgrade to
-
Pop Up TV Lifts

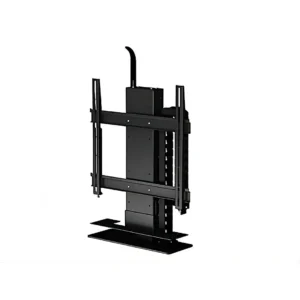

Future Automation AL675 from 32″ to 48″
Original price was: £1,777.99.£1,600.19Current price is: £1,600.19. -
Flip Down / Inverted Ceiling Screen Lifts, Pop Up TV Lifts
Venset TS700a from 32″ to 50″
Original price was: £450.00.£424.99Current price is: £424.99.
Simon Allinson –
I wanted a lift to lower my 40\” tv from the ceiling from my loft into my bedroom and it works perfectly im really pleased with it.it took about 3 hours and some careful measuring and cutting but found it fairly straightforward to do i just mounted the tv and lift on a piece of 1\” chipboard that I had previously fixed securely in my loft vertically to the joists and rafters then built a box around it and all works a treat.
I have no special training on the installation as i’m a plumber by trade it just takes a bit of common sense and planning.
Now my bedroom looks like something out of mtv’s cribs!!
robin –
Works well, easy to fit, though needs two people to hold and fix TV. Good value.
Jens Carl –
Been looking for something neat to make a small lift at the end of the bed. This is the smallest I could find, whilst still lifting a 32″ TV
Richard Wood –
We bought a Venset TS600 recently. Very happy with it and prompt delivery and a minor issue sorted with good advice willingly given.
Full marks.
Glen Irving –
Solid structure with a shallow depth. All wiring is plug and socket. The jumpers in the control box need to be set with narrow-nosed pliers
