Future Automation LSH & I-LSH 65″ to 105″
The Future Automation LSH TV Lift & inverted I-LSH ceiling Lift are heavy-duty lifts capable of lifting or lowering screens from 65″ to 105″ with a maximum load of 100kg. It can be used to raise a TV from a cabinet or, in reverse, to lower a TV from within a ceiling. Enjoy premium state-of-the-art automation with smooth movement and near-silent, vibration-free motor systems. For a large-format screen, the LSH is simply the best!
- Description
- Specification
- Downloads
- Video & Pictures
- Q & A
- Reviews (0)
Description
Future Automation LSH TV Lift & Inverted I-LSH Ceiling Lift Mechanism
The Future Automation LSH & inverted I-LSH TV lift mechanisms are premium heavy-duty lifts designed for large-format screens. Hide your TV in furniture, cabinetry, ceilings and architectural joinery. The LSH raises and lowers a screen at the press of a button, delivering a smooth motion with exceptional stability, unlike cheaper budget lifts. Boasting a near-silent motor system and full cable management, it’s no wonder the LSH is the professional’s choice.
The LSH TV lift is available in 5 different-sized models and is suitable for screens from 65 to 105 inches. This minimises the size of the mechanism, allowing cabinet makers to keep build-in height requirements to a minimum. This is essential when housing large-format screens in cabinets.
| Â 5 STANDARD SIZES | |||||
|---|---|---|---|---|---|
| Model Number, Approx | TV Screen Size | Internal Cabinet Height | Min Screen Height | Max Screen Height | Max Weight |
| LSH6 | 65″ | 1170 mm | 800 mm | 920 mm | 100KG |
| LSH7 | 75″ | 1290 mm | 920 mm | 1040 mm | 100KG |
| LSH8 | 85″ | 1410 mm | 1040 mm | 1160 mm | 100KG |
| LSH9 | 98″ | 1650mm | 1160 mm | 1280 mm | 100KG |
| LSH10 | 105″ | 1770mm | 1280 mm | 1400 mm | 100KG |
If you need rotation, the LSH & I-LSH is also available with a 180-degree swivel in both directions. For more information on the LSH-S & I-ILH-S please click here
Standard Cabinet Lid Options
As standard, there are two ways of opening the cabinet lid.

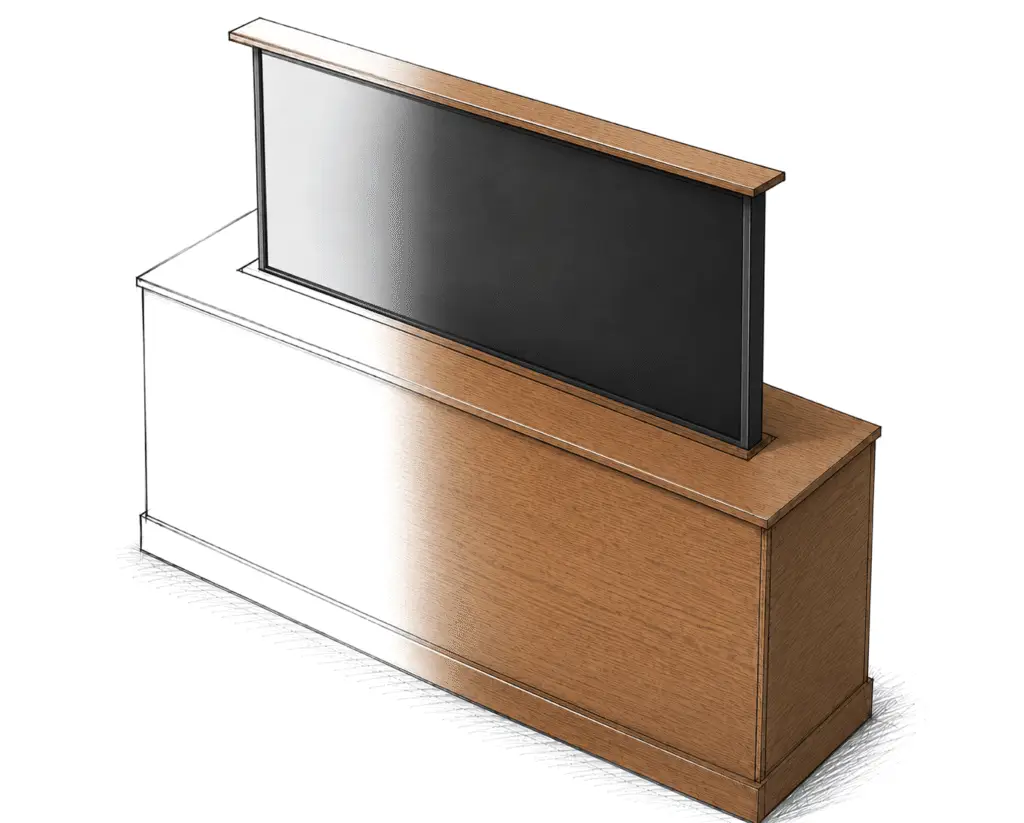

Fixed Panel Lid
- Floating Lid: Cabinet makers can attach a simple fixed panel to the top of the lift that matches the joinery. The panel raises with the TV, and a baseboard fills the aperture when the TV is raised.

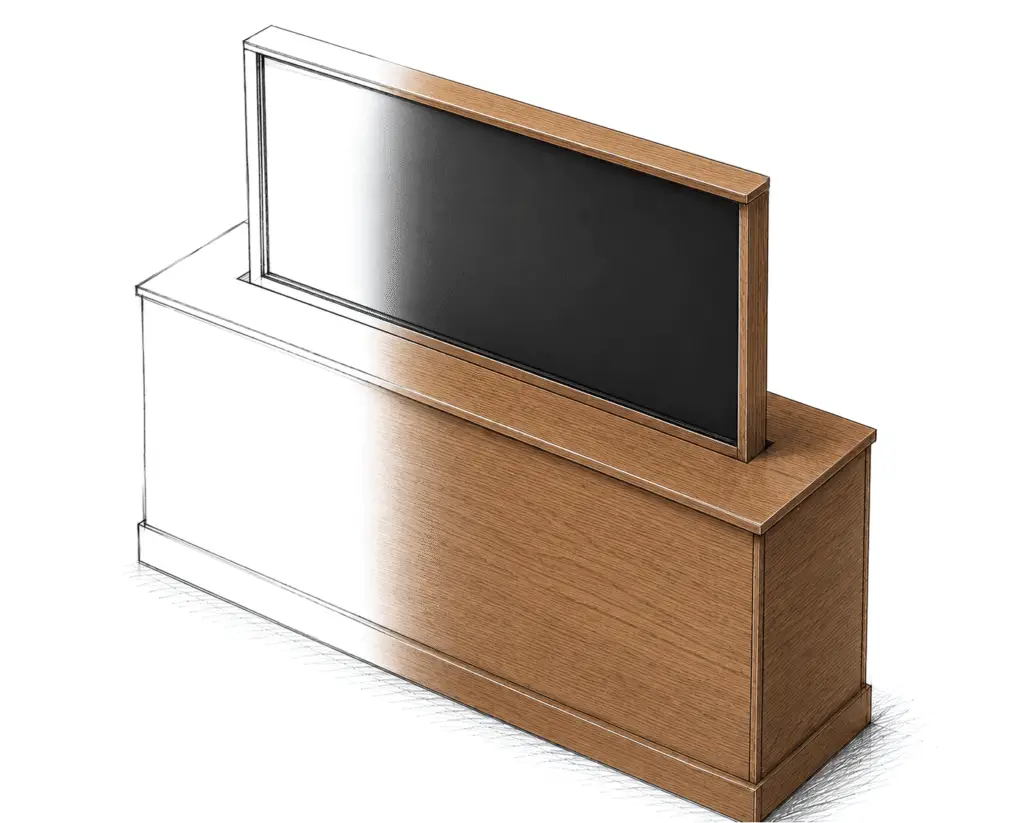

Box Enclosure
- Box Enclosure: Alternatively, the TV can be completely enclosed in a box enclosure, which allows the back and side of the TV to be hidden when extended. This is a great option if you are making an end-of-bed TV cabinet or installing a ceiling-mounted TV lift to lower a TV.
Upgraded Cabinet Lid Options
Looking to add a little more luxury to your cabinet and the automation?

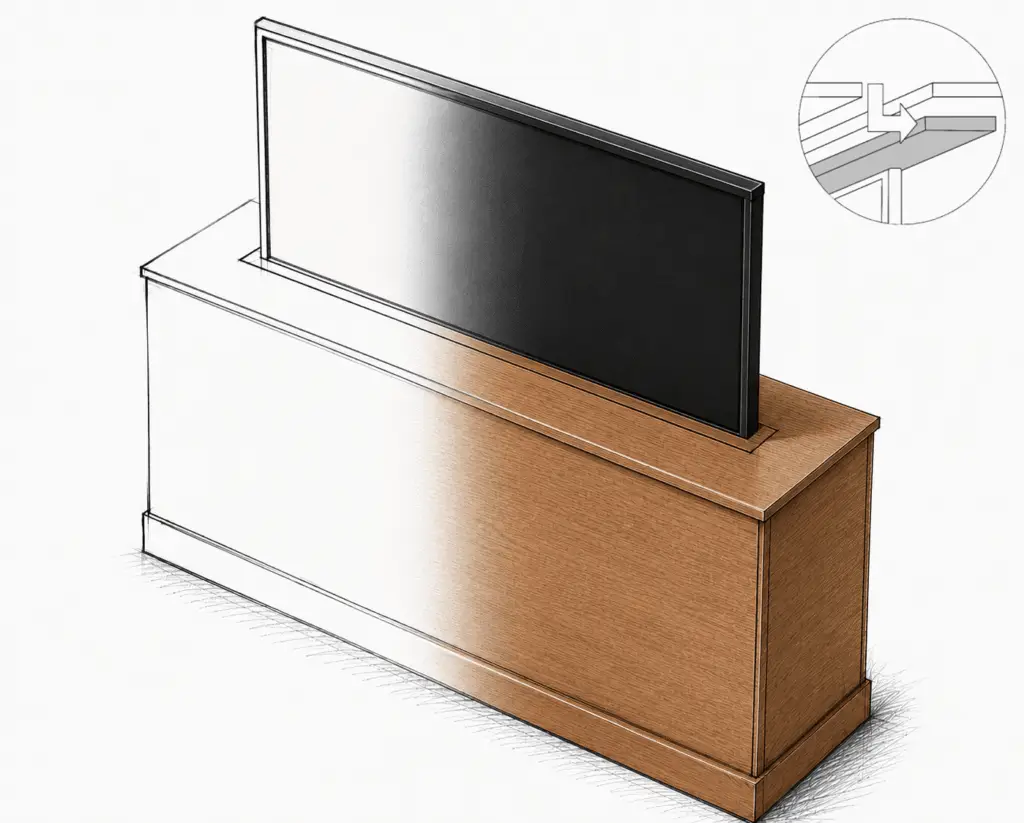

Drop & Slide Lid
- Drop & Slide: Picture this. A motorised cabinet lid gently lowers into the cabinet and slides out of the way before the lift quietly raises your TV from the cabinet to the perfect viewing height. When the TV returns, the lid slides back out and raises to close the cabinet.

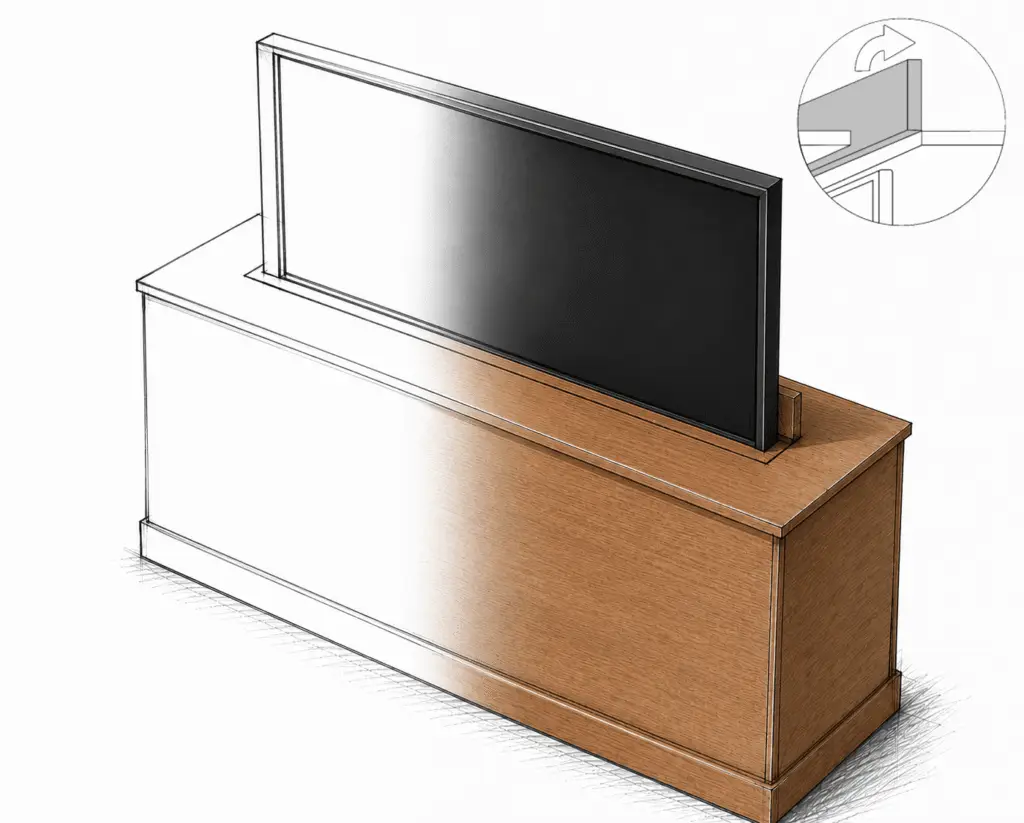

Automated Hinged Flap
- Automated Hinged Flap:Â With the press of a button, an automated flap on the cabinet automatically hinges the lid open, ready for the TV. When the TV lowers into the cabinet, the flap automatically hinges the lid back to the closed position.
*Please note that in both upgraded and standard versions, you can fit a baseboard that fills the aperture when the TV is in the raised position.
Control Features
The LSH & I-LSH TV lift mechanism can be controlled via RS232 and contact closure and, as standard, comes complete with an IR remote control. Making it fully compatible with all home automation control system brands. Also available is an RF remote option that allows the lift to operate remotely out of line of sight—a handy addition if the unit is a standalone system.
Design Highlights:
| Features | Why it matters |
|---|---|
| Screen sizes 65″ to 105″ | Large-format screens have come down significantly in price and are very popular amongst homeowners. The LSH range provides installers and integrators a range of standard lifts for TV’s up to 105″ |
| Available in 5 standard sizes | Supplying the lift in 5 standard sizes means the cabinet’s built-in height can be kept to a minimum. Important when hiding large-format TVs in cabinetry or ceilings. |
| Full cable management. | Complete with cable management tracks, ensuring your cabling remains safe and secure during lift operation. |
| Marine suitable robust build | Ensures exceptionally smooth movement, free from vibration, even on the largest screens. |
| Fixed Lid & Box Enclosure Options as standard | Gives the customer a basic choice for managing the cabinet flap. The box enclosure is ideal for ceiling installations or for hiding the back of the TV. |
| Additional Lid Options | Â Provides a little extra luxury with automated lids that move out of the way before the TV rises. |
AV Installs also supplies this Lift with a 180-degree swivel action, the LSH-S– for more info, click here.
Selecting the correct lift and additional features can be tricky. If you are unsure or require any assistance from our expert, please don’t hesitate to call 0800 669 6600
| Model Number | LSH6 | LSH7 | LSH8 | LSH9 | LSH10 |
|---|---|---|---|---|---|
| MINIMUM SCREEN HEIGHT | 800mm | 920mm | 1040mm | 1160mm | 1280mm |
| MAX SCREEN HEIGHT | 920mm | 1040mm | 1160mm | 1280mm | 1400mm |
| INTERNAL CABINET HEIGHT | 1170MM | 1290MM | 1410MM | 1650MM | 1770MM |
| MAXIMUM LIFTING CAPACITY | 100KG | 100KG | 100KG | 100KG | 100KG |
| CONTROL OPTIONS (AS STANDARD) | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR |
For more information please see the links below.
Product Downloads
LSH7 & I-LSH7 Technical SheetÂ
LSH8 & I-LSH8 Technical SheetÂ
LSH9 & I-LSH9 Technical SheetÂ
LSH10 & I-LSH10 Technical SheetÂ
LSH & I-LSH Installation InstructionsÂ
