Name: Future Automation PS32 Articulated TV Mount
SKU: PS32
Availability: InStock

-10%

Future Automation PS32 Articulated TV Mount

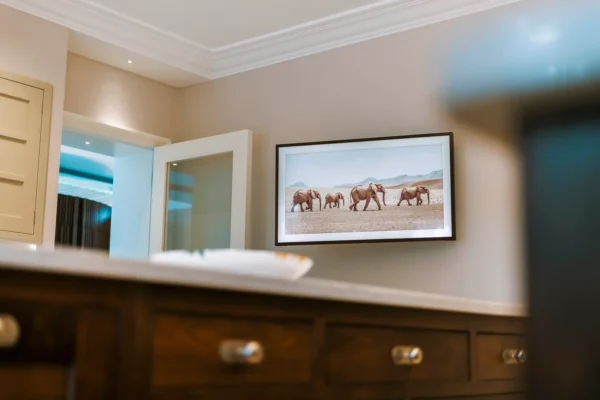

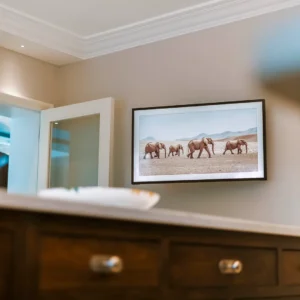

Samsung 43" frame tv wall mounted using a future automation ps32 articulated tv mount

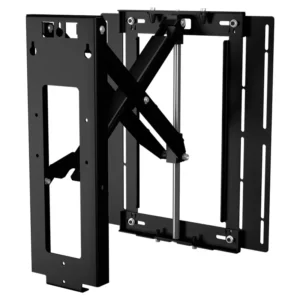

rear view of the future automation PS32 articulated tv wall mount.

Future Automation PS32 Articulated TV Mount

The Future Automation PS32 is part of the PS series of articulated TV brackets, designed for screens ranging from 32″ to 43″. A unique scissor arm design makes pulling the TV forward and turning it an easy, one-handed operation, even for heavy screens. The PS32 is one of the most slimline articulated TV brackets available, standing only 52mm off the wall when closed. The parallel movement makes it ideal for recessed TVs and as a media wall TV mount. It can be used as either a pull-out and turn bracket or as a maintenance TV bracket. The PS series is packed with installer-friendly features, like cable management and an easy hook-on and off TV mounting system. Furthermore, a range of accessories is available, including sound bar brackets and wall boxes, which allow the PS32 to be recessed and provide a no-gap articulated TV mount. The PS series is the original pro installer’s choice, built to last a lifetime.

Original price was: £413.00.Current price is: £371.70.

Model: PS32

Add to wishlist

Description

Future Automation PS32 Manual Articulated TV Mount

This Future Automation PS32 articulated TV mount is part of the PS range of TV brackets, suitable for screen sizes from 32″ to 43″ with a maximum VESA of 300 x 300. This is a slimline TV bracket featuring a unique scissor design, with a depth of only 52mm when closed. When fully extended, it pushes the TV forward 300mm from the wall. These PS32 articulated mounts can support screens and soundbars using the relevant brackets, up to a maximum weight of 60 kg. Thanks to the premium scissor arm mechanism, articulation is incredibly smooth, making it easy to rotate even heavy screens single-handedly. The maximum rotation for a 32″ TV is 50 degrees both ways, and for a 43″ TV, it is 36 degrees both ways. For larger screens, the PS32 only performs as a service mount for access behind the TV.

The PS32 features an easy hook-on and off universal screen mount that makes installation really easy, along with built-in cable tie anchors for neat, simple cable management. Designed to be fixed to a single stud or solid wall for ease of installation. There is also a stud rail kit for twin stud mounting. The scissor arms extend the TV forward in a parallel position before rotating, making it a perfect TV mount for media wall installations. This feature protects the TV when it is moved in and out of a recess, as it prevents accidental collisions with the sides of the recess. Included with the PS32 is a pack of universal TV mounting bolts and spacers, along with cable ties, providing everything you need to attach the TV and organise the cabling. It’s no wonder the PS series is the preferred choice among professional custom installation markets.

THE PS BRACKET IS AVAILABLE IN A RANGE OF SIZES
MODEL NO	APPROX TV SIZE	MAX EXTENSION	SWIVEL	MAX WEIGHT
PS32	32 – 43″	300MM	UP TO 50°	60KG
PS40	40 – 75″	400MM	UP TO 50°	60KG
PS55	55 – 75″	500MM	UP TO 50°	60KG
PS65	65 – 75″	595MM	UP TO 50°	60KG
PS80	80 – 110″	569MM	UP TO 45°	120KG
PS80-CUSTOM	110+”	VARIABLE	UP TO 45°	VARIABLE

AV Installs Ltd also offers a comprehensive range of Installation Services. Give us a call today on 0800 669 6600

Available Accessories for the PS32 TV Wall Mount

Speaker / Sound Bar Mount. The PS32 can be used with any of the Future Automation soundbar brackets designed for mounting either a centre speaker or a sound bar beneath the TV so that it moves out with the TV when extended or turned. more info

Adaptor Plates. If you are using the Samsung 32″ Frame TV then the AP-FR32 adaptor plate is required as the Frame TV has a manufacturer specific non VESA compatible mounting pattern. more info

Wall Boxes. The PS32 can be recessed into the wall using a WB16-2S wall box, providing a no gap articulated tv bracket this allows the mount to retract into the box so the TV sits flush with the wall when closed. This is the solution when you want all the benefits of a articulated wall mount but wont the TV to sit flush with the wall. more info

Samsung Frame TV No Gap Articulated TV Bracket

The PS32 is compatible with the the Samsung Frame 32″ and the Frame 43″ TVs. When used with the WB16-2S wall box the Samsung one connect box can be hidden behind the TV out of sight and accessed when you pull the TV out. This is a great all in one solution for mounting the frame TV and hiding the one connect box.

picture of a future automation PS32 with a wb16-2s wall box and AP-fr32 adaptor plate

The Future Automation PS32 Articulated TV mount Specifications

PRODUCT CODE	PS32
BOLT PATTERN	(H) 300, 200, 100 (W) 300, 200, 100
CABLE MANAGEMENT	IN-BUILT CABLE TIE ANCHORS & CABLE TIES INCLUDED
FINISH	RAL 9005 BLACK (SATIN) – CUSTOM AVAILABLE
MARINE SUITABLE	NO
MAX EXTENSION FROM WALL	300MM (11.8″)
MAX ROTATION	UP TO 50° EACH WAY (SCREEN WIDTH DEPENDENT)
MAX SCREEN DIMENSIONS	LIMITED BY WEIGHT AND DESIRED ROTATION ANGLE
MAX WEIGHT CAPACITY	60KG (132LBS)
MIN DEPTH FROM WALL	52MM (2″ 1/16)
MOVEMENT TYPE	MANUAL
OUTDOOR SUITABLE	NO
PRODUCT DIMENSIONS	390 X 307 X 52MM (15 3/8 X 12 1/16 X 2 1/16″)
RECOMMENDED SCREEN SIZES	32″ – 43″
