Name: Future Automation PS40 Articulated TV Mount
SKU: PS40
Availability: InStock

-10%

Future Automation PS40 Articulated TV Mount

Future Automation PS40 Articulated TV Mount - Image 1

recessed TV mounted using a future automation ps40 articulated TV bracket

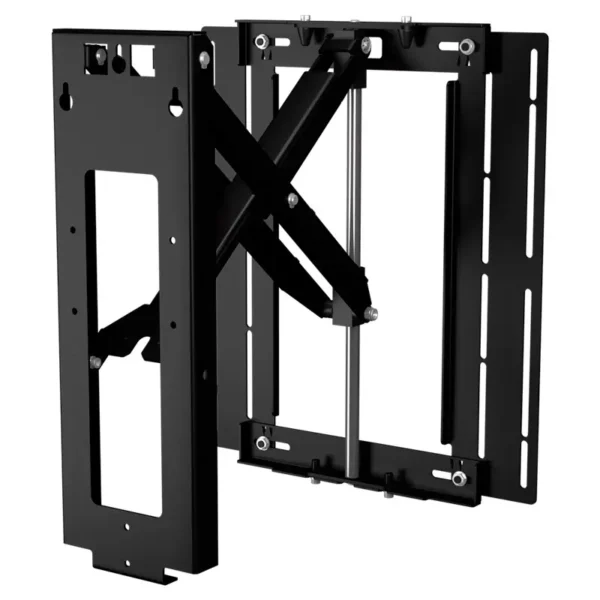

rear view of the PS40 TV Bracket wall plate

Future Automation PS40 Articulated TV Mount

The Future Automation PS40 is part of the PS range of manual articulating TV mounts, designed to support TV screens from 40″ up to 75″. The proprietary scissor arm design makes moving the TV and rotating it an effortless one-handed operation, even for a heavy screen. It can be used as either a pull-out and rotate bracket or as a service TV mount, allowing access behind the TV. This low-profile mount sits only 52mm from the wall when fully closed and extends 400mm when fully extended. The PS40 features a universal TV mounting plate that supports up to a maximum VESA of 400 x 400. The PS series is packed with installer-friendly features, and it also offers a range of additional accessories, including soundbar brackets and recessed wall boxes. The PS series is the original pro installer’s choice, made in the UK & built to last a lifetime.

Original price was: £413.00.Current price is: £371.70.

Model: PS40

Add to wishlist

Description

Future Automation PS40 Pull Out & Rotate TV Mount

This Future Automation PS40 articulated TV mount is part of the PS range of TV brackets suitable for screen sizes from 40″ up to 75″ with a maximum VESA of 400 X 400. The proprietary scissor design of the PS40 is a slimline TV bracket with a depth of only 52mm when closed. When fully extended, the TV is moved forward 400mm from the wall and can be rotated in either direction. The PS40 can support screens and soundbars using the relevant brackets, with a maximum weight capacity of 60 kg. Thanks to the scissor arm design, articulation is incredibly smooth, making it easy to rotate even the heaviest screens single-handedly. The maximum rotation changes depend on the TV size. Please see the following guide.

for a 43″ TV, it is 50 degrees in both directions,
for a 55″ TV, it is 38 degrees in both directions,
for a 65″TV, it is 32 degrees in both directions
for a 75″ TV, it is 27 degrees in both directions
For larger screens, it only serves as a service mount.

The PS40 features an easy-to-use universal screen mount that facilitates installation, along with built-in cable tie anchors for routing cabling neatly and securely. The PS40 is designed to be fixed to a single stud or solid wall for ease of installation. A stud rail kit is also available for twin stud mounting, if required. The scissor arms extend the TV forward in a parallel position before rotating, making it perfect for a TV mount in media wall installations. This feature protects the TV when it is moved in and out of a recess, as it prevents accidental collisions with the sides of the recess. Included with the PS40 is a pack of universal TV mounting bolts and spacers, along with cable ties, giving you everything you need to attach the TV and organise the cabling. It’s no wonder the PS series is the preferred choice among professional custom installation markets.

THE PS BRACKET IS AVAILABLE IN A RANGE OF SIZES
MODEL NO	APPROX TV SIZE	MAX EXTENSION	SWIVEL	MAX WEIGHT
PS32	32 – 43″	300MM	UP TO 50°	60KG
PS40	40 – 75″	400MM	UP TO 50°	60KG
PS55	55 – 75″	500MM	UP TO 50°	60KG
PS65	65 – 75″	595MM	UP TO 50°	60KG
PS80	80 – 110″	569MM	UP TO 45°	120KG
PS80-CUSTOM	110+”	VARIABLE	UP TO 45°	VARIABLE

If you’re looking for an outdoor TV wall mount, there is also an IP-rated version of the PS40. The parts are made from stainless steel to ensure protection against corrosion. To obtain a price for the Future Automation IP-PS40, please contact us.

AV Installs Ltd also offers a comprehensive range of Installation Services. Give us a call today on 0800 669 6600

Available Accessories for the PS40 TV Wall Mount

Speaker / Sound Bar Mount. The PS40 can be used with any of the Future Automation soundbar brackets designed for mounting either a centre speaker or a sound bar beneath the TV so that it moves out with the TV when extended or turned. more info

Wall Boxes. The PS40 can be recessed into the wall using one of our wall boxes, this allows the TV bracket to retract back into the recessed box. Providing a no gap TV bracket, allowing the TV to sit flush with the wall when closed. more info

ps TV bracket with future automation wall box providing a no gap tv mont

With the larger 2S wall boxes there is even room for one connect boxes, sky boxes, BT boxes and others all hidden behind the TV in the wall box. This provides an all in one solution with no need for furniture to house auxiliary equipment, particularly useful for Samsung Frame TVs and one connect boxes. more info

Samsung Frame TV No Gap Articulated TV Bracket

The PS40 is compatible with following new Samsung The Frame TVs.

Samsung 43″ Frame TV
Samsung 55″ Frame TV
Samsung 65″ Frame TV
Samsung 75″ Frame TV

Future Automation PS40 Pull Out & Swivel TV Bracket Specifications

PRODUCT CODE	PS40
BOLT PATTERN	(H) 400, 300, 200, 100 (W) 400, 300, 200, 100
CABLE MANAGEMENT	IN-BUILT CABLE TIE ANCHORS & CABLE TIES INCLUDED
FINISH	RAL 9005 BLACK (SATIN) – CUSTOM AVAILABLE
MARINE SUITABLE	NO
MAX EXTENSION FROM WALL	400MM (15.7″)
MAX ROTATION	UP TO 50° EACH WAY (SCREEN WIDTH DEPENDENT)
MAX SCREEN DIMENSIONS	LIMITED BY WEIGHT AND DESIRED ROTATION ANGLE
MAX WEIGHT CAPACITY	60KG (132LBS)
MIN DEPTH FROM WALL	52MM (2 1/16″)
MOVEMENT TYPE	MANUAL
OUTDOOR SUITABLE	NO

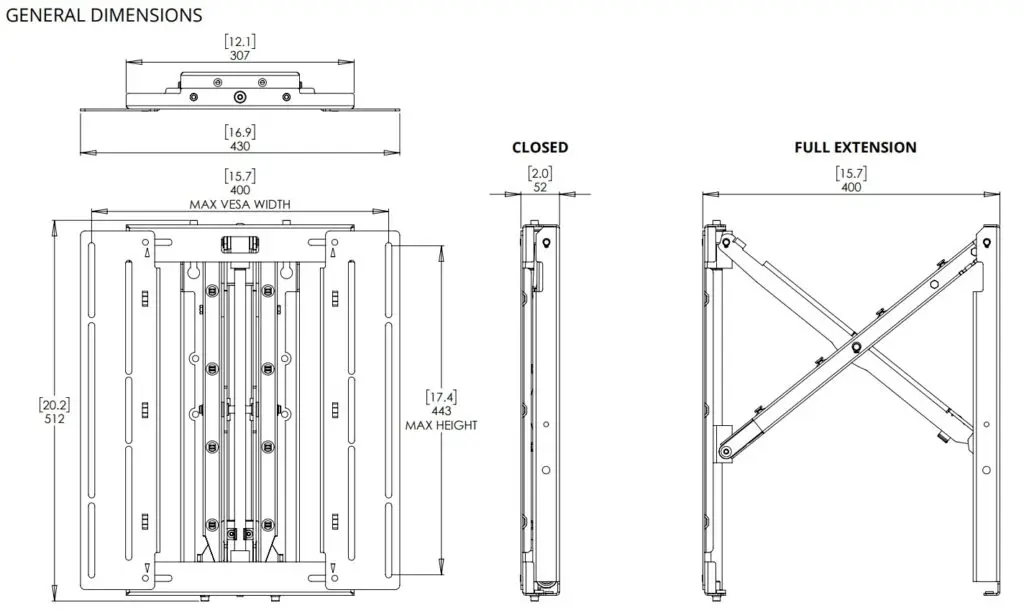

PRODUCT DIMENSIONS	512 X 430 X 52MM (20 3/16 X 16 15/16 X 2 1/16″)
RECOMMENDED SCREEN SIZES	40″ – 75″
