Name: Future Automation PS80 Articulated TV Mount
SKU: PS80
Availability: InStock

-10%

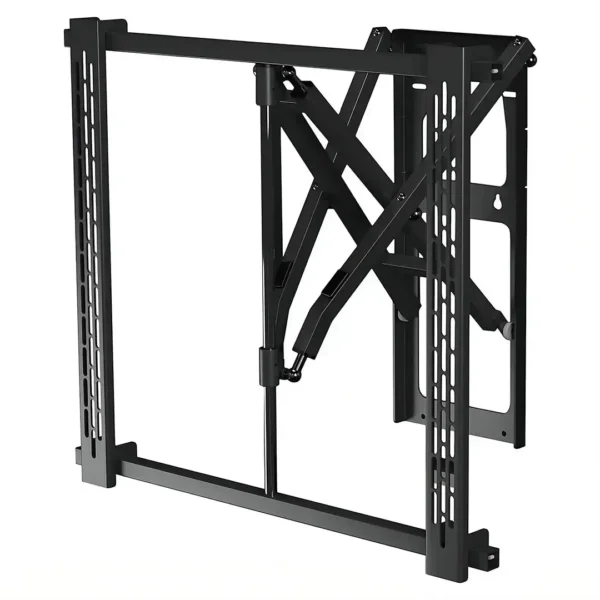

Future Automation PS80 Articulated TV Mount

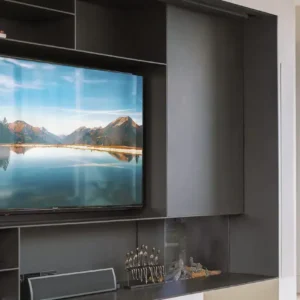

future automation ps80 articulated tv mount for extra large TVs

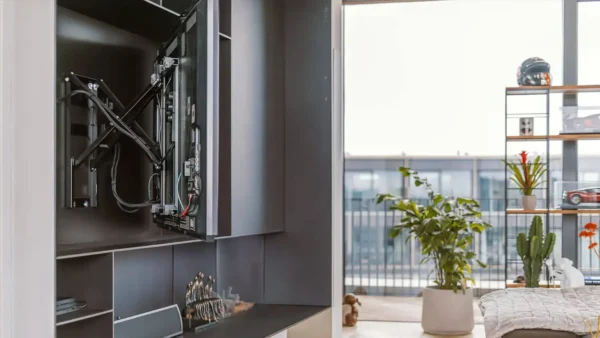

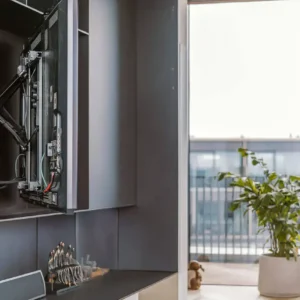

future automation ps80 media wall tv bracket

Future Automation PS80 Articulated TV Mount

The Future Automation PS80 articulated TV wall mount is a heavy-duty, full-motion wall mount designed for screens ranging from 75″ to 110″ with a maximum weight capacity of 120 kg. The PS80 allows you to pull a large TV screen away from the wall and rotate it in either direction with ease, using just one hand. Used extensively in media walls, the PS80 extends out parallel, allowing easy access behind the TV. This heavy-duty articulated TV mount sits only 84mm from the wall when fully closed and extends 569mm when fully extended. The PS80 features a universal TV mounting plate that supports up to a maximum VESA of 800 x 700. The PS80 is packed with installer-friendly features and offers a range of additional accessories, including sound bar brackets and a recessed wall box. The PS80 is the number one choice for professionals seeking a full-motion TV Bracket for large, heavy TV screens.

Original price was: £924.00.Current price is: £831.60.

Model: PS80

Add to wishlist

Description

Future Automation PS80 Pull-Out & Rotate TV Wall Mount

The Future Automation PS80 articulated TV mount is the largest TV bracket in the PS range, suitable for screen sizes from 75″ up to 110″ with a maximum VESA of 800 X 700. The heavy-duty scissor design of the PS8 has a depth of only 52mm when closed. When fully extended, the TV is moved forward 595mm away from the wall and then rotated in either direction. The PS80 can support the largest TV screens and soundbars, up to a maximum weight of 120 kg. Thanks to the scissor arm design, articulation is incredibly smooth, making it easy to rotate even the heaviest screens single-handedly. The maximum rotation changes dependant on the TV size please see the following guide.

for an 86″ TV, it is 34 degrees in both directions
for a 110″ TV, it is 28 degrees in both directions
for larger screens, it only serves as a service mount..

The PS80 features an easy hook-on and off universal screen mount that makes installation really easy, along with built-in cable tie anchors for routing cabling neatly and securely. The scissor arms extend the TV forward in a parallel position before rotating, making it perfect for mounting large TVs in media walls. This feature protects the TV when it has been moved in and out of a recess, as it can never accidentally collide with the sides of the recess. Included with the PS80 is a pack of universal TV mounting bolts and spacers, along with cable ties, providing everything you need to attach the TV and organise the cabling. It’s no wonder the PS series is the preferred choice among professional custom installation markets.

THE PS BRACKET IS AVAILABLE IN A RANGE OF SIZES
MODEL NO	APPROX TV SIZE	MAX EXTENSION	SWIVEL	MAX WEIGHT
PS32	32 – 43″	300MM	UP TO 50°	60KG
PS40	40 – 75″	400MM	UP TO 50°	60KG
PS55	55 – 75″	500MM	UP TO 50°	60KG
PS65	65 – 75″	595MM	UP TO 50°	60KG
PS80	80 – 110″	569MM	UP TO 45°	120KG
PS80-CUSTOM	110+”	VARIABLE	UP TO 45°	VARIABLE

There is also a wall box available for the PS80, allowing the bracket to be recessed into a wall. This enables the TV to be returned completely flat against the wall, much like a picture, with no gap. For an 85″, the maximum swing is 34 degrees in both directions.

If you’re looking for an outdoor TV wall mount, there is also an IP-rated version of the PS80. The parts are made from stainless steel to ensure protection against corrosion. To obtain a price for the Future Automation IP-PS80, please contact us.

AV Installs Ltd also offers a comprehensive range of Installation Services. Give us a call today on 0800 669 6600

Available Accessories for the PS80 Bracket Perfect For Media Walls

Speaker / Sound Bar Mount. The PS80 can be used with any of the Future Automation soundbar brackets designed for mounting either a centre speaker or a sound bar beneath the TV so that it moves out with the TV when extended or turned. more info

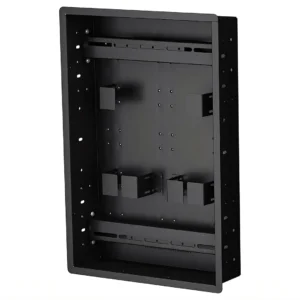

Wall Boxes. The PS80 can be recessed into the wall using one of our WB80 wall box, this allows the TV bracket to retract back into the recessed box. Providing a no gap TV bracket, allowing the TV to sit flush with the wall when closed. more info

ps TV bracket with future automation wall box providing a no gap tv mont

Samsung Frame TV No Gap Articulated TV Bracket

The PS80 is compatible with following new Samsung The Frame TVs.

Samsung 75″ Frame TV
Samsung 86″ Frame TV

AV Installs Ltd also offers a comprehensive range Installation Services give us call today on Call 0800 669 6600

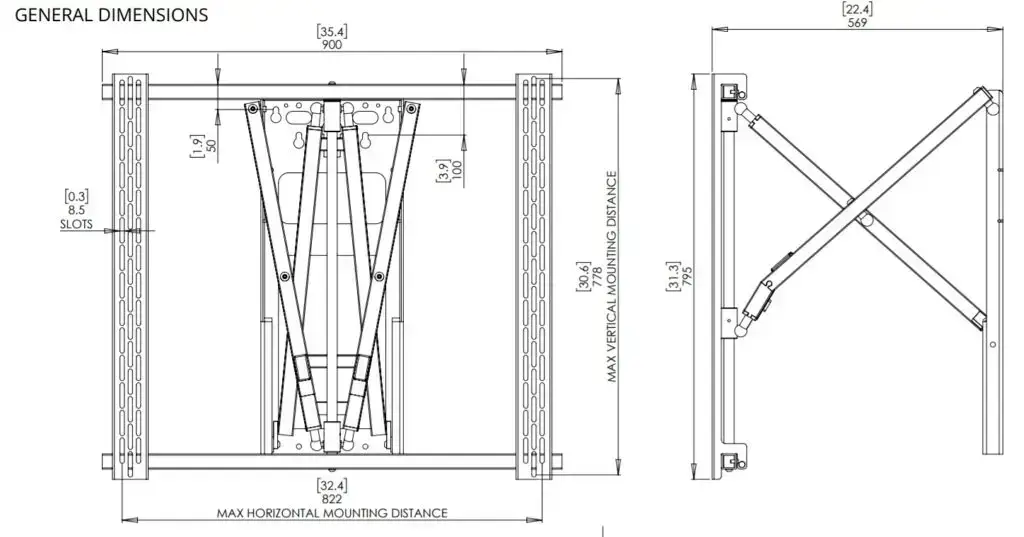

Future Automation PS80 Pull Out & Swing TV Mount Specifications

PRODUCT CODE	PS80
BOLT PATTERN	(H) 700, 600, 500, 400, 300, 200, 100 (W) 800, 700, 600, 500, 400, 300, 200, 100
FINISH	RAL 9005 BLACK (SATIN) – CUSTOM AVAILABLE
MARINE SUITABLE	NO
MAX EXTENSION FROM WALL	569MM (22.4″)
MAX ROTATION	UP TO 45° EACH WAY (SCREEN WIDTH DEPENDENT)
MAX SCREEN DIMENSIONS	LIMITED BY WEIGHT AND DESIRED ROTATION ANGLE
MAX WEIGHT CAPACITY	120KG (265LBS)
MIN DEPTH FROM WALL	84MM (3 5/16″)
MOVEMENT TYPE	MANUAL
OUTDOOR SUITABLE	NO
PRODUCT DIMENSIONS	795 X 84MM (31 5/16 X 3 5/16″)
RECOMMENDED SCREEN SIZES	80″ – 110″
