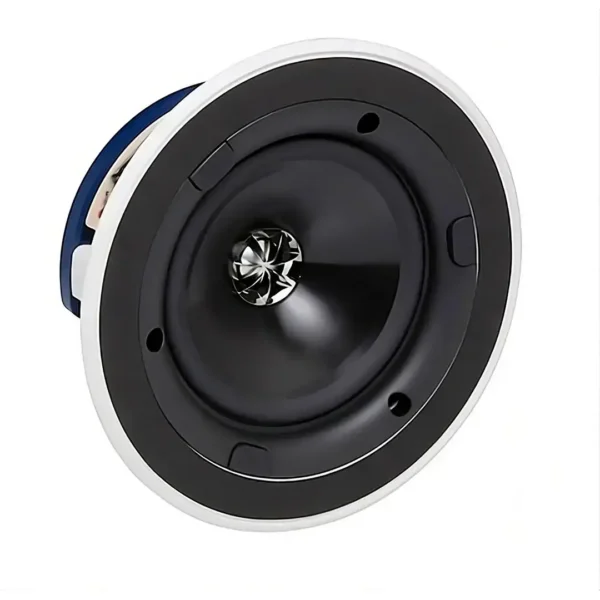

Kef Ci130QR Flush Fit Speaker

The Kef Ci130QR is the latest edition to the Kef Uni-Q custom installation speaker family, purpose built for direct flush mounting into ceilings or walls. Designed to smoothly integrate and architecturally match with existing down lighting sharing the same size bezel.

Model: Ci130QR

Description

Kef Ci130QR Flush Fit In Wall Cinema Speaker

The Kef Ci130QR Flush Fit Speaker is the latest edition to the Kef Uni-Q custom installation speaker family, purpose built for direct flush mounting into ceilings or walls. Designed to smoothly integrate and architecturally match with existing down lighting sharing the same size bezel, KEF’s trademark Uni-Q technology has a decisive performance advantage in these applications, because each point source driver array evenly disperses the sound, ensuring a smooth frequency response over a large area to create a spacious three-dimensional soundscape with genuine texture and depth. With a two-way Uni-Q driver of 130mm (5.25”), the Ci130QR is as satisfyingly musical to hear as it is neat in appearance.

The Ci130qr delivers Hi-Fi quality sound through a polypropylene cone low frequency driver with a high frequency driver mounted at the acoustic centre of the LF drive unit. The bezel and grill can be painted to match the interior decor of the room.

Features and Benefits
Purpose built for flush mounting into walls and ceilings these are the latest addition to the KEF Uni-Q Custom Installation series. Providing a compact solution to the problem of Hi-Fi quality sound from an in-wall/ceiling speaker, the Ci130QR consists of a polypropylene cone LF driver with the HF unit mounted at the acoustic centre of the LF unit. The bezel and grill can be painted to match the interior décor.

Key Features

  • 10-100W
  • In Ceiling / In Wall Speaker
  • LF & HF Drive Unit
  • 158mm cutout
  • Flush Wall Ceiling Fit
  • Ultra Thin Bezel
  • White Paintable Grills

Applications

The Ci Series Ci 130QR is best suited for high quality music and speech reinforcement applications requiring hi-fi performance such as:

  • Multi Room systems
  • Home Theatre systems
  • Lounges, Bars, Boutiques
  • Boardrooms & Offices
  • Airports, Convention Centres, Hotels
  • Live Theatre/Concert Hall fill-in
  • Houses of Worship
  • Sports Arenas

let's talk contact page buttontrading standards but with confidence logo

Architectural Specifications

The Ci Series Ci 130QR consist of: 1 X 19mm aluminium dome tweeter 130mm white polypropylene cone with double neo compound magnet system.
Performance of the Ci 130QR shall meet or exceed the following criteria: frequency response 1 metre on-axis with swept sinewave shall be 45Hz to 34kHz , sensitivity shall be at least 87dB for 2.83V@1m. The 2.83V@1m. The driver impedance shall be 8 ohms.

Specifications
Model No Ci130qr
Nominal Impedance 8 Ohms
Sensitivity (2.83V/ 1m) 87dB
Frequency Response +/-6dB 2pi/open-backed 45Hz – 34kHz
Crossover Frequency 3.8kHz
Drive Units 130mm LF 19mm HF
Recommended Amplifier Power 10 – 100W
Features Ultra Thin Bezel
Mounting Depth from Surface 77.8mm
Cut – out Dimension 158mm

For more information please see the links below.

Product Downloads

KEF Ci130qr Technical Specifications

KEF Custom Installation Speaker Brochure
