PICSPLIT Moving Split Picture Mechanism

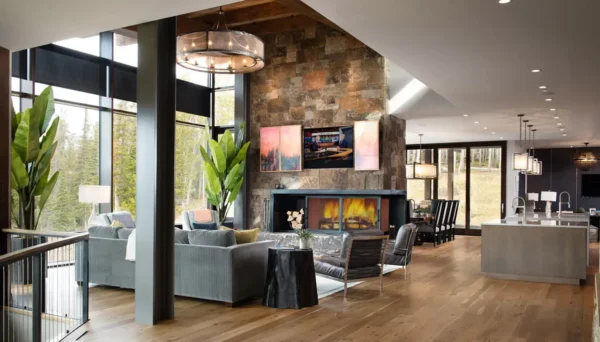

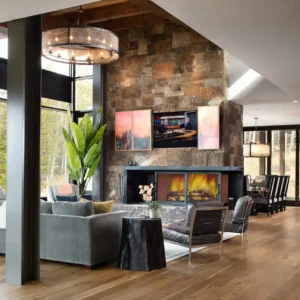

The Future Automation PICSPLIT is a creative way to hide large flat-screen TVs behind two sliding artworks. The TV is hidden behind two pictures or canvases that split apart in the middle and slide outward in either direction from the centre. The PICSPLIT is particularly helpful at hiding larger screens where there isn’t enough room above the TV. Complete with a remote control, press a button and your pictures gently slide apart, revealing the TV hidden behind. When you are done watching TV, the artwork slides back together, hiding your TV out of sight. The PICSPLIT lift comes in four standard models, catering to TV screens up to 75″ or a maximum travel of 1800mm.
- Description
- Specifications
- Downloads
- Video & Pictures
- Q & A
- Reviews (0)
Description
Future Automation PICSPLIT Moving Split Picture Slider

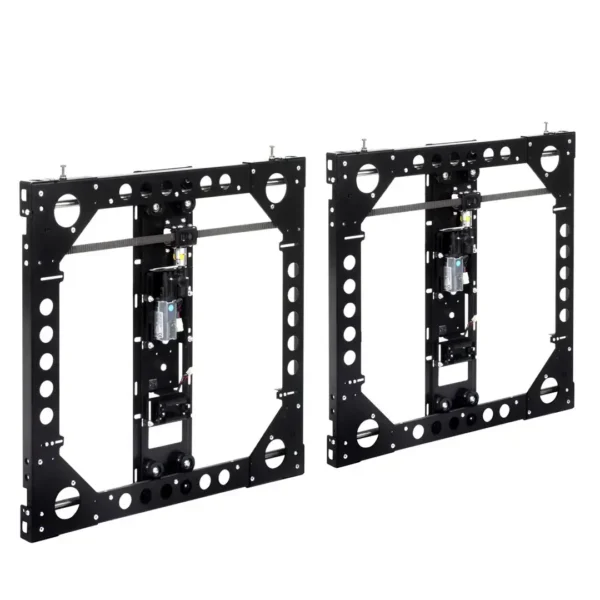

The Future Automation PICSPLIT is a unique new way to hide your flat-screen TV behind a pair of sliding pictures or panels. The PICSPLIT comes in two mechanisms that mount on either side of the recessed TV, providing horizontal motion in opposite directions. A pair of panels, pictures, or canvases is mounted side by side on the lifts in front of the TV, touching in the middle. When you’re ready to relax and watch TV, press a button. The artworks or panels are split apart from the middle in opposite directions, sliding out of the way to reveal a hidden TV behind. This innovative picture lift mechanism is ideal for customers with large screens and limited ceiling heights that can’t use a vertical lift. The PICSPLIT also offers new opportunities for interior designers looking to hide a TV and add a little drama with a conceal-and-reveal TV system.
The PICSPLIT dual panel mechanism comes in 4 standard models designed to cater for screens up to 75″ with a maximum combined panel travel of 1800mm wide. Each lift can support a panel, picture, or artwork weighing up to 15 kg.
Split picture lifts are ideal for traditional and modern living spaces, and can be particularly easily integrated into TV media walls. Enhance your living space and add the wow factor with an automated picture-splitting hidden TV. AV installs provides installation services and can assist customers and other installers with the initial planning and design of their projects. AV installs can also offer a bespoke canvas printing and framing service ensuring that your picture perfectly fits the PICSPLIT lift contact us for more info.
| PRODUCT | MAX TRAVEL | MAX PICTURE WEIGHT |
|---|---|---|
| PICSPLIT1 | 1150MM | 15KG EACH |
| PICSPLIT2 | 1400MM | 15KG EACH |
| PICSPLIT3 | 1650MM | 15KG EACH |
| PICSPLIT4 | 1800MM | 15KG EACH |
| PICSPLIT-BESPOKE | CUSTOM | CUSTOM |
The Future Automation PICSPLIT lifts are surface-mounted and designed to be used in combination with a recessed TV. The lift holds the panels or pictures just 10mm from the wall. This keeps everything looking plush and conceals any unsightly areas while avoiding obstructions during the lift’s motion. The nearly silent motor provides effortless, smooth operation, making it ideal for both residential and commercial installations. With adjustable travel strokes via dead stops at both open and closed positions, the installer can set the position of the lifts precisely.
Included with the PICSPLIT is an IR remote control, along with RS-232 and contact closure control, enabling easy integration with any existing home automation control system. An RF remote is also available, ideal if this pic lift is being used as a standalone system. The motorised picture lift can be configured to raise or lower artwork, depending on the available wall space for the artwork to move into.
AV Installs Ltd also offers complete installation services for the split picture lift and can also assist customers with printing and original artwork if required. If you’re looking to hide your television behind moving artwork, call AV Installs today on 0800 669 6600
If you need assistance with designing your project or specifying one of our moving panel lifts, speak to the experts today.
Future Automation PICSPLIT Split Picture Technical Specifications
| PRODUCT CODE | PICSPLIT1 | PICSPLIT2 | PICSPLIT3 | PICSPLIT4 | PICSPLIT-BESPOKE |
|---|---|---|---|---|---|
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
| DECIBEL RATING | 47DB | 47DB | 47DB | 47DB | VARIABLE |
| DEPTH FROM WALL | 50MM (2.0″) | 50MM (2.0″) | 50MM (2.0″) | 50MM (2.0″) | 50MM (2.0″) |
| FINISH (CUSTOM AVAILABLE) | BLACK PAINT – RAL 9005 | BLACK PAINT – RAL 9005 | BLACK PAINT – RAL 9005 | BLACK PAINT – RAL 9005 | BLACK PAINT – RAL 9005 |
| MAX RECESS WIDTH | 1150MM (45.3″) | 1400MM (55.1″) | 1650MM (65″) | 1800MM (70.9″) | VARIABLE |
| MAX SPEED | 120MM/S (4.72″/S) | 120MM/S (4.72″/S) | 120MM/S (4.72″/S) | 120MM/S (4.72″/S) | 120MM/S (4.72″/S) |
| MAX WEIGHT OF PANEL | 15KG (33LBS) | 15KG (33LBS) | 15KG (33LBS) | 15KG (33LBS) | 15KG (33LBS) |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED | MOTORISED | MOTORISED |
| POWER CONSUMPTION | 110W | 110W | 110W | 110W | VARIABLE |
| POWER CONSUMPTION (STANDBY) | 3W | 3W | 3W | 3W | VARIABLE |
| POWER SUPPLY | 240V OR 110V | 240V OR 110V | 240V OR 110V | 240V OR 110V | 240V OR 110V |

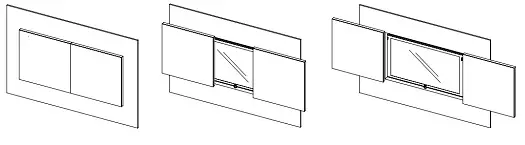

Example of PICSPLIT Motorised Picture Split Movement.

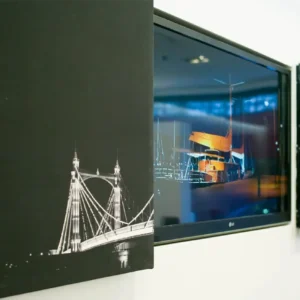

With a press of a button the lift slides each picture splits apart smoothly sliding in opposite directions of travel to reveal the flat screen TV hidden behind.
Video of Picture Split Mechanism in action
