Screen International Si-30 Projector Lift
The Screen International Si-30 projector lift mechanism is designed to lower a hidden projector from inside a ceiling void down to the correct projection height. Made for smaller projectors with a maximum weight of 11KG and maximum dimensions of width 400mm x depth 450mm x height 140mm. The Si-30 can lower a projector up to a total distance of 300mm beneath the ceiling. There are dead stops which can limit the drop and return for perfect alignment with the ceiling. This projector lift is ideal for suspended ceiling installations and is designed to clear a standard 600mm x 600mm grid ceiling. There is also an optional suspended ceiling tile holder and RF remote kit if needed.
£651.23
- Description
- Specifications
- Downloads
- Video & Pictures
- Q & A
- Reviews (0)
Description

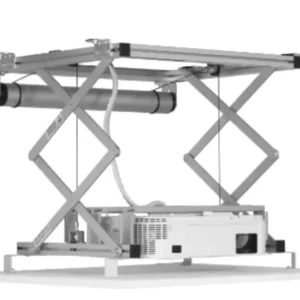

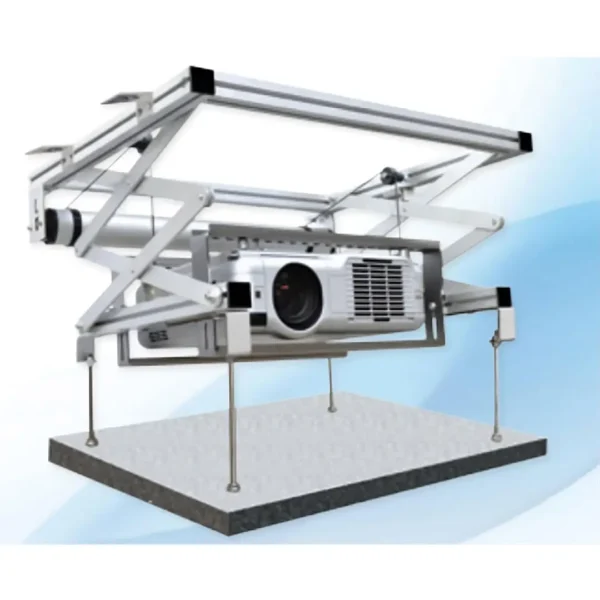

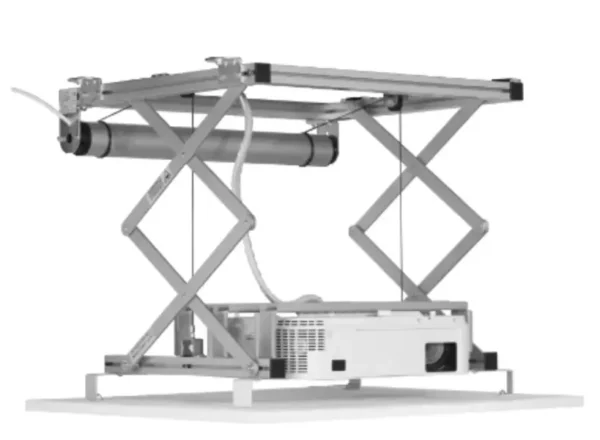

Screen International Si-30 Motorised Projector Lift
The Si-30 motorised projector lift is one of the most compact lift mechanisms on the market, with a 300mm drop, and a tiny build in height of 120mm plus the height of the projector. The Si-30 is ideal for projector installations where space above the ceiling is at a premium. This Projector lift is particularly suited for suspended ceiling installations and has been designed to come down and fit through a standard 600MM x 600MM suspended ceiling tile. The Si-30 is for smaller projectors with maximum dimensions of width 400mm x height 140mm x depth 450mm. The total net projector weight that can be supported is 11KG.
The Si-30 projector lift can lower the projector from the ceiling up to a total maximum drop of 300mm. There are two dead stops for the projector drop and the return, making integrating and fine-tuning the projector lift into the ceiling easier. Included with the lift is an up-and-down switch to aid installation. This can be upgraded to the Screen International RF remote control kit. Everything needed to attach a basic ceiling cover panel is included, including threaded rod and bushes. There is also an optional tile holder for textured or more delicate suspended ceiling tiles, helping to blend the installation further.
Key Features
- Outputs for 3rd Party Product Control
- Ceiling panel fixing system (ceiling panel not included)
- Full cable management
- Ultra-quiet motors
Optional Accessories
- RF remote control kit
- Suspended ceiling tile holder
Screen International Si-30 Projector Lift Specifications
| Si-30 Projector Lift Specifications | |
|---|---|
| maximum projector dimensions | W400mm x D460mm x H190mm |
| build in height (minimum ceiling void height) | 120mm to 170mm + projector |
| total lift drop | 300mm |
| lifting capacity | 15KG |
| height of lift | 120mm |
| input power | 100v to 240v ac |
| IR remote | Not provided but available |
| adjustable stroke | Y |
| warranty | 24 months |
For more information on the Si30 lift please see the links below.
Product Downloads
SI30 Projector Lift Product Presentation
SI30 Installation Instructions
Optional Accessories Downloads

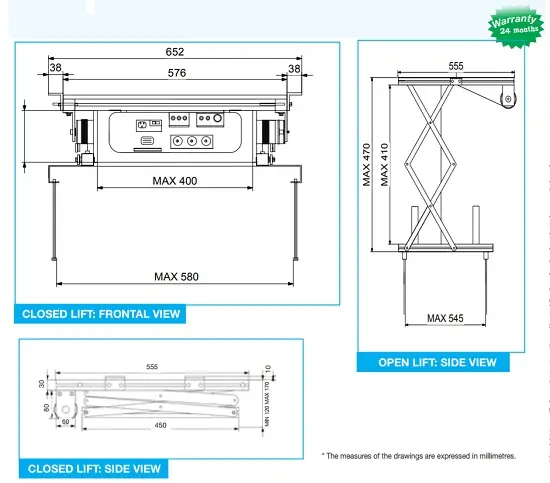

Technical Picture & Dimensions of Si-30 Projector Lift Mechanism
