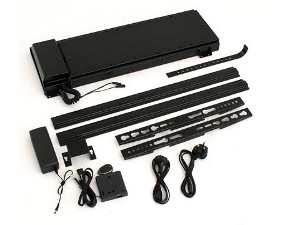

Venset TS1000a Motorised Television Screen Lift


INC VAT:£549.99  £499.98
Save: 9% off


5 out of 5 stars
 (3)

ts1000a full specification

ts1000a full specification

upside down operation
upside down operation

Vesnet TS1000a Motorised TV Lift Mechanism


Designed for larger LCD, LED and Plasma TV screens up to 70" this mechanism handles very larger screen with ease offering a near silent motor. Despite the long stroke, the unit only requires a build-in height of 750mm. The lift is complete with an anti-squeeze safety protection feature, If the moving parts of the lift or the Plasma/LCD mounted on the lift meet an obstacle in the down-going motion, the lift will stop and reverse. The pressure given before reversing is equal to the weight of the TV that is mounted.

The TS 1000 Motorised TV Lift can be used to raise a flat screen TV from custom furniture or lower a flat screen TV from the ceiling. It comes as standard in raise mode but full instructions are included to configure the unit to lower, making the lift very useful for ceiling TV Lift installations

If you would like to talk to someone about any technical questions or need help deciding which lift mechanism would be suitable please call Call 0800 669 6600

Key things to take into account when ordering a lift.

1. your build in height (minimum height required to house the TV Lift)
2. your lift stroke (maximum travel on the lift for your TV to raised from the cabinet)
Helpful note
Take note of the total height of your screen add this to the thickness of the cabinet lid or opening that screen is coming from also add a little tolerance for the guard that protects your TV from making contact with the cabinet lid. This will be the total amount of lift or stroke that you will require to raise and lower your TV screen from a cabinet or ceiling void.

Additional Accessories Available

Manual Swivel Head (click here)
This is a fantastic budget solution for adding swivel / Rotation to a TV lift system. The unit is manually operated and can support screen up to 15kg with a maximum 30 degrees movement both sides.

TV Power Switch (click here)
This is a great eco addition to any cabinet project and can be fitted so that when the lid closes on the cabinet the power is cut off to the TV so that it is not left on standby using electric when not in use.

Universal Vesa Mounting plate (click here)
The additional mounting plate increases the vesa pattern to a maximum of 600 x 400 if required and is also useful if the lift is being mounted where there is no access to the rear of the lift for example behind a cabinet on a wall.

IR Remote Control (click here)
This is an additional control system using Infrared and is ideal for when the lift is being integrated into a universal learning remote or larger home automation project

Floor Stand (click here)
The additional purpose made floor stand enables installers to fix the Venset TV Lift either to a flat floor or in reverse directly to a flat ceiling.

Looking For Something Bigger? Our XXL Lift For Screens Up to 90"



TS1000a Specifications
maximum screen sizeup to 70"
build in height(excluding lifter)750mm
total lifting stroke1000mm
toatl lift range750mm to 1750mm
lifting capacity5kg to 60kg
depth of lift72mm
lid lifter setting46mm to 286mm
input power100v to 240v ac
vesa mountings600x400, 600x200, 600x100, 400x400, 400x200, 400x100,300x300, 200x200, 200x100
TV mounting bracketsY horizontal & vertical
manual switchY
RF remoteY
lid lifterY
adjustable strokeY
reversible operationY
anti squeeze safetyY
warranty12 months
IR remoteoptional




For more information please see the links below.

Downloads







Technical Picture & Dimensions of TS1000a


Venset TS100a TV Lifts


Video of lift in cabinet











Call The Venset TV Lift Mechanisms Experts
AV Installs Ltd - Call 0800 669 6600


  • Model: TS1000a
  • Manufactured by: Venset
