AV Installs Ltd is proud to stock the entire range of Future Automation Audio Visual Automation Products.

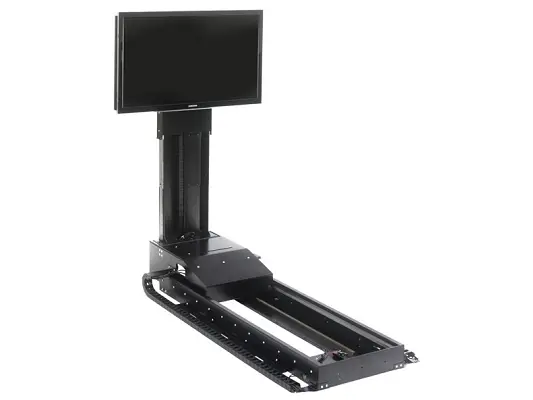

The Future Automation Under Bed TV Lift (UBL) is the first of its kind- truly an innovative product designed to provide an alternative solution for concealing flat-screen TVS in the bedroom. The UBL features a unique design that robotically slides a flat-screen TV from beneath the bed, then lifts it upright and raises it vertically above the bed into a comfortable viewing position. Its exclusive features make excellent use of unused space underneath beds, and the near-silent motor system effortlessly and elegantly lifts the TV into place. Concealing large-screen TVS is a common issue for domestic customers and hotels, and the Future Automation UBL offers an impressive alternative to the traditional end-of-bed TV lift cabinet. It is the first of its kind, a genuinely innovative product designed to provide an alternative solution for concealing flat-screen TVs in the bedroom. The UBL is a unique design that robotically slides a flat-screen TV from under the bed, then lifts the TV into an upright position and raises it vertically above the bed into a comfortable viewing position. The unique features of this lift make excellent use of unused space underneath beds; the near-silent motor system effortlessly and elegantly lifts the TV into place. Concealing large-screen TVs is a common problem for domestic customers and hotels. The Future Automation UBL offers an impressive alternative to the traditional end-of-bed TV lift cabinet.

The UBL features an impressive range of screen sizes and can support maximum dimensions of 1400mm in width, 700mm in height, and 55mm in depth, with a maximum weight of 40 kg. Its design requires very little clearance at the end of the bed, thanks to the lift flipping the screen from horizontal to vertical before raising it. The Vertical Lift is fully adjustable and programmable to stop at the desired position. Below are a selection of images that best illustrate the articulation of the under-bed TV lift.

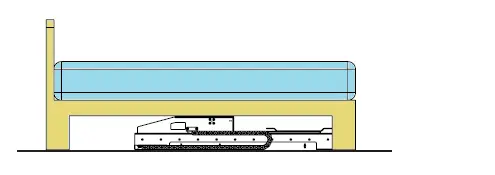

The TV Lift is in the closed position, concealing the flat screen TV underneath the bed.

TV Lift in the 1st phase of operation in full horizontal extension

“Firstly, the TV lift slides the flat screen horizontally out from underneath the bed.”

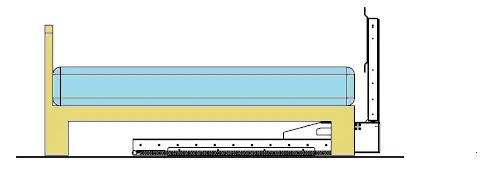

TV Lift in full horizontal extension and hinged through 90 degrees

“Secondly, the flatscreen  TV is lifted on a hinge through 90 degrees, ready to be raised into the selected viewing height.”

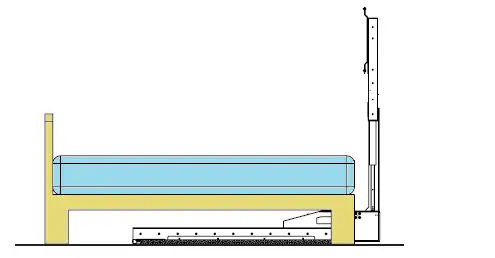

TV Lift in final position.

Lastly, the flatscreen TV is raised into a comfortable viewing height.”

For a more in-depth look at the UBL in action, we recommend viewing the excellent video presentation that Future Automation has posted on YouTube. This slick, high-end Audiovisual product is best appreciated in motion.

The Future Automation Under Bed TV Lift is available for purchase from AV Installs, and technical downloads are also available. For more info and prices, please click here.
