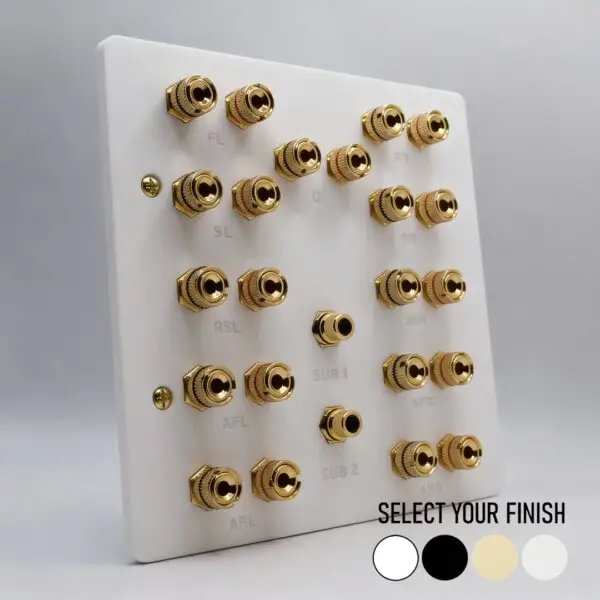

Dolby Atmos 7.2.4 Speaker Wall Plate
A Dolby Atmos 7.2.4 speaker wall plate complete with steel back box. Fitted out with eleven pairs of speaker terminal binding posts and a two subwoofer sockets. All speaker posts are gold-plated and accept 4mm speaker banana plugs. The connections on the back are the same as on the front of the plate, which makes connecting your speaker cable easy.
£175.00
- Description

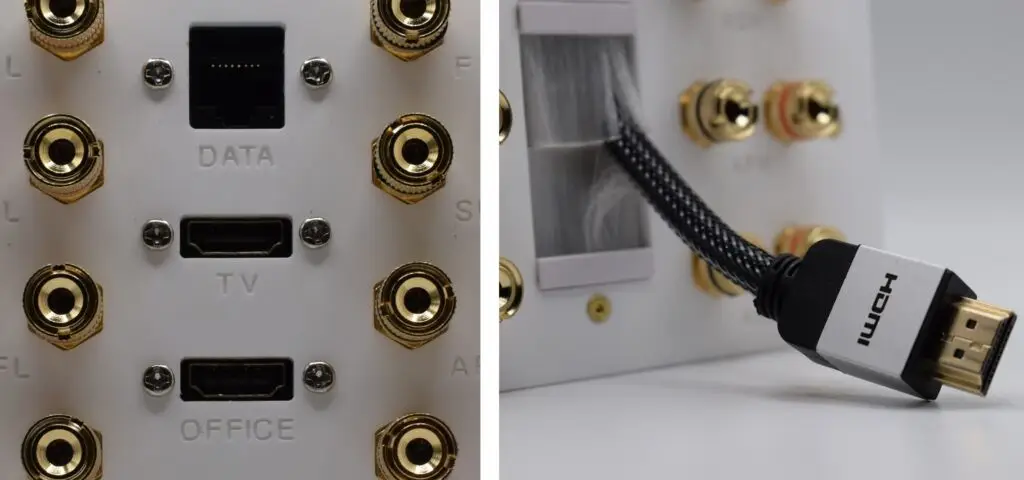

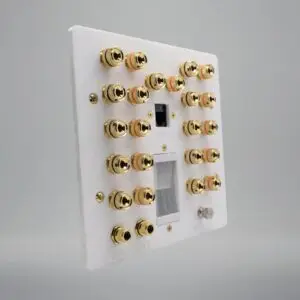

- Custom Speaker Wall Plates
- Useful information
- Q & A
- Reviews (0)
Description

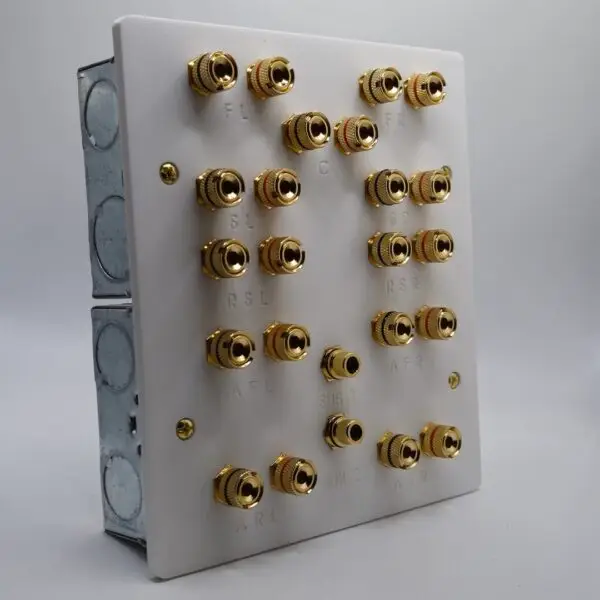

Dolby Atmos 7.2.4 Speaker Wall Plate (back box included)

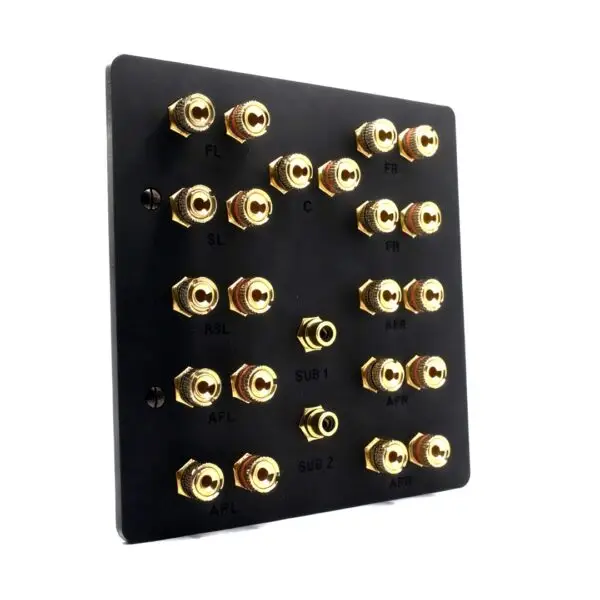

A Dolby Atmos 7.2.4 speaker wall plate available in the following decorative finishes
- White Plastic
- Black Plastic
- Brushed Brass
- Polished Brass
- Brushed Stainless Steel
- Polished Stainless Steel
7.2.4 Surround Sound Speaker Wall Plate

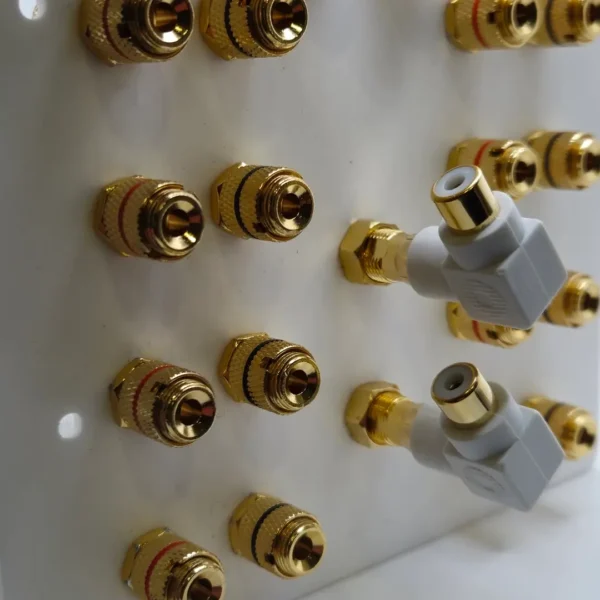

This Dolby Atmos 7.2.4 speaker wall plate comes with 11 pairs of gold-plated binding posts (solder free installation). These also accept 4mm banana plugs or spade connectors, should you wish to use them. Also featuring two subwoofer RCA sockets, which have RCA sockets on the front and back. We provide two gold-plated 90 degree RCA couplers for the back of the plates to aid with installation. This plate is designed to be used with a UK 8 gang grid steel back box and one is included with this plate.
This speaker plate is the main speaker plate; all the 7.2.4 surround and Atmos speakers link back to it. Located behind the AV receiver, it makes connecting to the speaker’s much easier and organised. Available in an extensive range of decorative finishes, and custom orders are welcome.

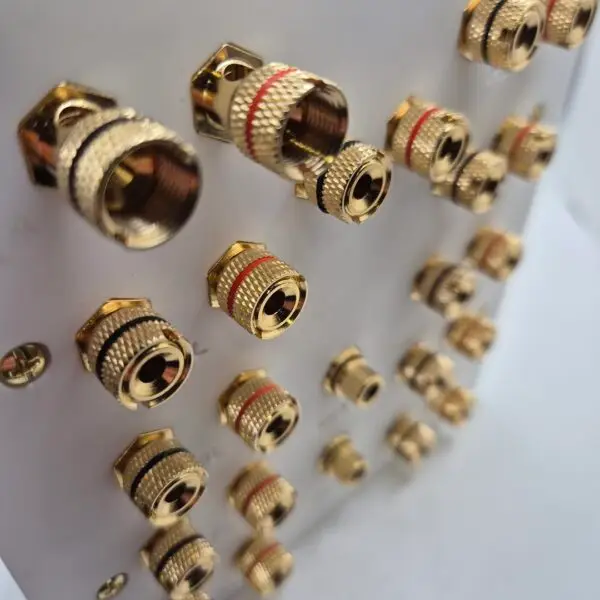

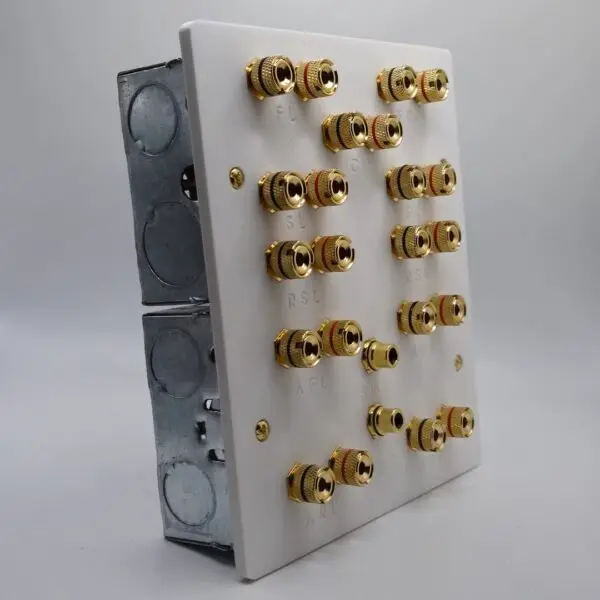

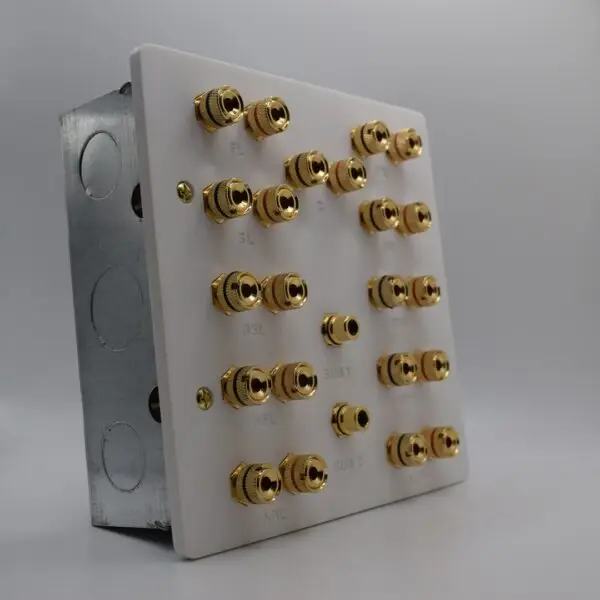

The 22 speaker posts and two subwoofer sockets are mounted on a 146mm x146mm plate and are identical on both the front and back. This plate will fit any standard UK 8 gang grid steel back box and i supplied with a back box. We also supply four brass screws and four steel screws for the plate. All speaker connectors on custom metal plates are insulated using black nylon bushes and washers.
A 7.2.4 speaker plate is an excellent way to provide a professional connection between the AV receiver and Atmos speakers when the cabling is permanently installed within the walls. They offer a dedicated point of connection, making future upgrades of the speakers or home cinema AV receiver easy. All our speaker plates are handmade in the UK to order, and we also provide custom speaker plates if needed.
Key Details
- X1 UK 8 gang grid steel back box included
- solder free installation
- Selection of rubber grommets
- X22 gold-plated speaker binding posts
- X2 gold-plated subwoofer connector
- X2 gold-plated RCA right angle adaptors for subs
- posts also accept 4mm banana plugs
- dimensions: 146mm x 146mm
- brass & steel screws included
- binding post connectors on the back
Looking for banana plugs to go with the speaker plates? AV Installs offers a range of 4mm banana plugs, perfect for our selection of speaker plates. Click the links below for more details.

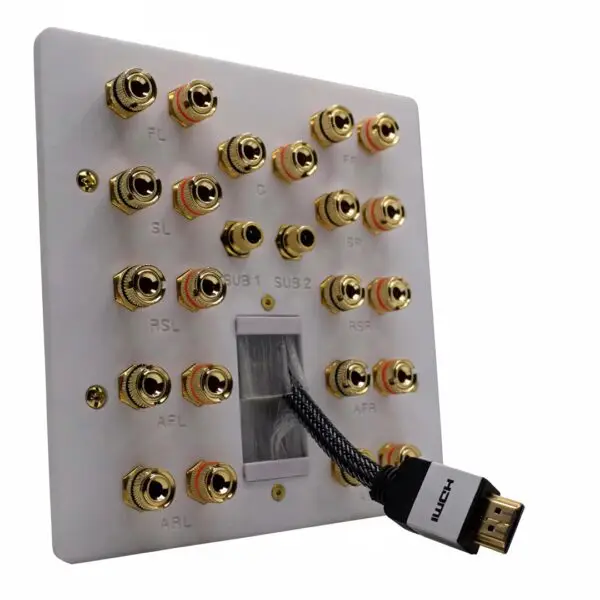

At AV Installs, we produce all our speaker wall plates here in the UK. We offer an extensive selection of standard speaker connection plates to suit most applications, along with custom services when needed. If you’re seeking something not listed in our standard catalogue or want to modify an existing plate, contact us for more details. Our friendly team are always happy to assist, and we maintain short lead times for bespoke orders.

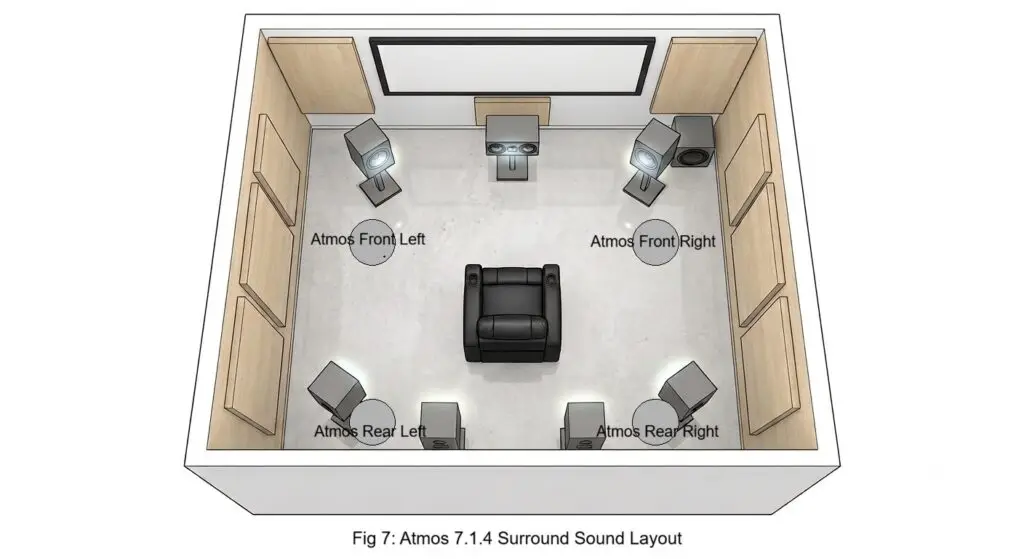

For more information on Dolby Atmos speakers and wall plates please see the following link to a useful blog post
