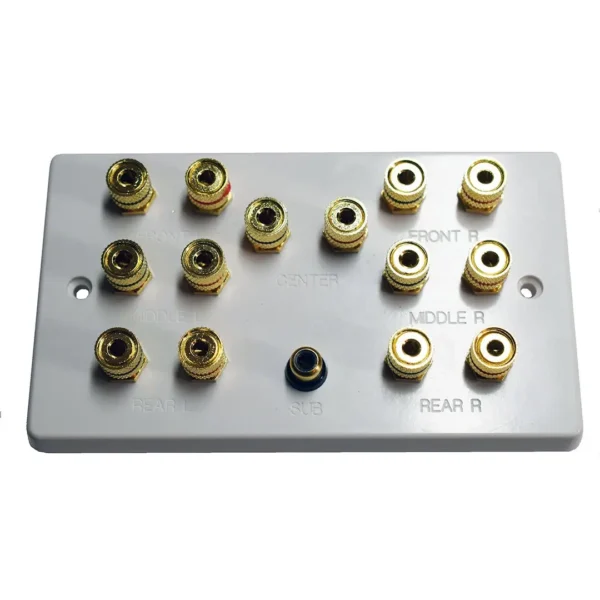

Double Gang Dolby 7.1 / 7.2 Speaker Wall Plate

Description

How to Choose the Right 7.1 / 7.2 Speaker Wall Plate for Your Project

Choosing a high-capacity speaker connection plate is essential to building a clean, professional, reliable 7-channel surround sound system.

1. Dolby 7.1 & 7.2 Surround Sound Configurations

• The Benefit: Ideal for dedicated home theatre rooms, adding side-surround and rear-surround channels to fill large spaces with a complete 360-degree sound field.

• Key Feature: Includes 14 gold-plated speaker binding posts and a single RCA subwoofer socket, with the option to add a second subwoofer coupler for 7.2 systems.

This plate is also available configured for a Dolby Atmos 5.1.2 / 5.2.2 system. Do you have a larger home cinema room, or are you looking for a more immersive setup?  Consider our 9.1 or Dolby Atmos faceplates.

2. Custom Decorative Finishes

• The Benefit: Integrates seamlessly into any decor style, complementing your electrical sockets for a high-end architectural finish.

• Key Feature: Available in nine premium finishes—including standard White and Black plastic, Brushed Chrome, Polished Chrome, Polished Brass, Brushed Brass, Gun Metal Black, and classic Georgian or Edwardian Brass.

• Speaker Post Caps: These decorative caps come in black or white, with easy identification bands for + and – channels. These caps fit over our gold-plated speaker post thumb screws while still allowing the binding posts to operate and banana plugs to fit. Available for the front only or for the front and back. To add these to your order, please see options above. When you order speaker caps, we also provide screws that match your plate to keep everything looking as discreet as possible.

3. Expansive Atmos Heights

• The Benefit: Ideal for high-end audio enthusiasts who want to expand their traditional flat surround system into multi-dimensional Dolby Atmos.

• Key Feature: Integrates perfectly with our auxiliary 4-speaker and 6-speaker Dolby Atmos plates to accommodate larger systems like 7.1.4 or 7.2.6. (Are you ready for Atmos now? Take a look at our dedicated range of Atmos Connection Plates.)

Optional Cable Crimp Sleeve Ferrules

Protect your speaker cables from potential damage and oxidisation with our OFC 24-carat gold-plated crimp sleeve ferrules. For this connection plate, you’ll need X14 for the back of the speaker plate and X14 for the speaker end. To order, please click one of the links below

Click here for 1.5mm crimp ferrules for 16AWG cables

Click here for 2.5mm crimp ferrules for 14AWG cables

Key Technical Factors to Consider Before Buying

• Solder-Free Binding Posts: Avoid complex soldering inside wall cavities. Our dual-purpose, gold-plated posts accept bare wire or 4mm banana plugs identically on both the front and back of the plate.

• Subwoofer Right-Angle Adaptor: Each plate includes a gold-plated 90-degree right-angle RCA coupler for the back of the plate, reducing strain on cables in tight wall cavities.

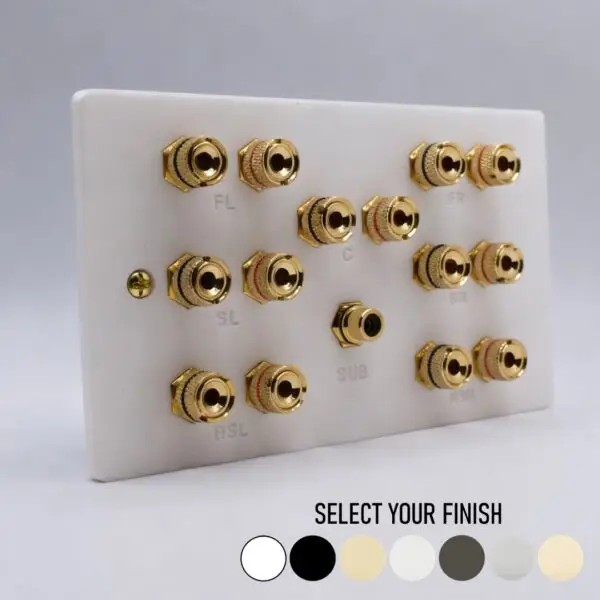

• Clear Engraving: To prevent wiring mistakes behind the receiver, we permanently engrave all terminals with channel locations: FL, FR, C, SL, SR, RSL, RSR, and SUB.

Why Choose AV Installs?

With over 20 years of custom audio-visual installation experience, AV Installs specialises in manufacturing trade-grade connection plates. We hand-finish all plates in the UK to ensure robust performance. If you need unique configurations that combine speaker posts with HDMI or Ethernet terminals, contact our custom engineering team.

Are you a Trade Professional?

We regularly work with architects, builders, and interior designers. Contact us for technical drawings and trade pricing at 0800 669 6600 or contact us online.

Helpful Tip

AV Installs highly recommends using deeper backboxes, such as 42mm or 47mm deep back boxes (dryline or flush masonry). This gives the installer extra room behind the plate to route the in-wall speaker cables without causing damage or pinching them.

Click here for banana plugs to go with the speaker plates.
