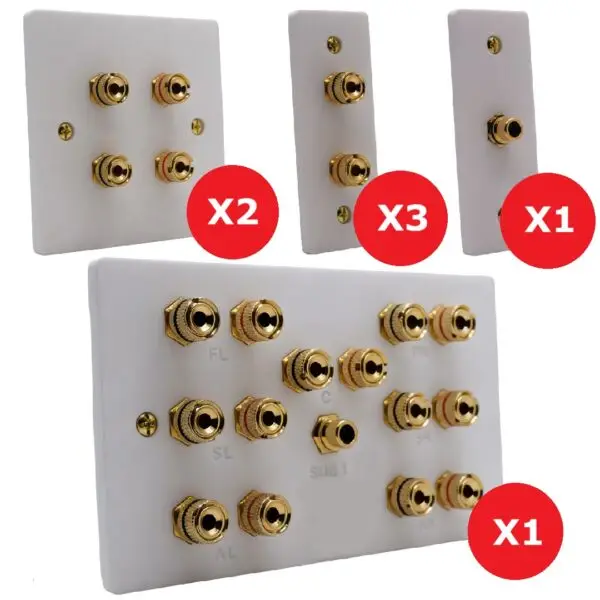

Dolby Atmos 5.1.2 Wall / Floor Speaker Plate Set

Engineered for 3D Immersive Spatial Audio Layouts

1. Purpose-Built 5.1.2 Channel Architecture

• The Benefit: Accommodates modern Dolby Atmos receivers by providing dedicated, clearly identified connection pathways for height elevation speakers.

• Key Feature: Complete set includes 1x Double Gang 5.1.2 Main Hub Plate (14 speaker posts + 1 sub socket), 7x Satellite/Height Speaker Plates, 1x Subwoofer Plate, and 2x Right-Angle RCA Adapters.

2. Versatile Wall & Floor Mounting

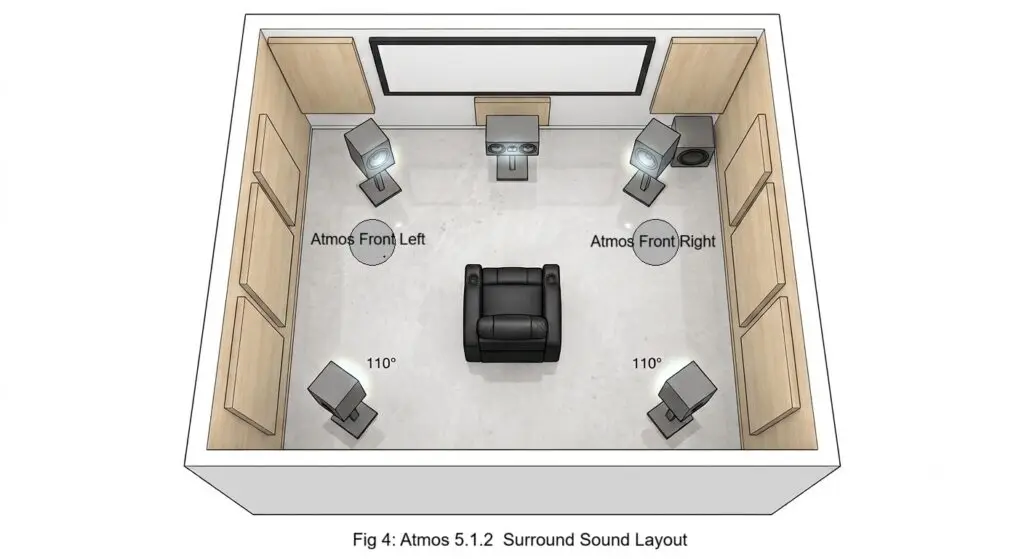

• The Benefit: Ideal whether your height channels are ceiling-mounted, wall-mounted, or upward-firing Atmos modules.

• Key Feature: Outlets can be installed into standard wall back boxes or floor boxes depending on your room’s speaker configuration.

3. Solder-Free High-Fidelity Connections

• The Benefit: Maintains zero signal loss across all 7 speaker channels and active subwoofer while keeping installation simple.

• Key Feature: Premium gold-plated binding posts accept bare wire or 4mm banana plugs on both front and rear faceplates.

Technical Breakdown & Specifications

• Dimensions: Single Satellite Plates: 86mm x 86mm; Double Gang 5.1.2 Receiver Hub: 146mm x 86mm.

• Back Box Requirements: Main hub requires a 47mm-deep double-gang back box to comfortably house 14 speaker lines plus a subwoofer cable.

• Origin: Hand-assembled in the UK to order; fits all standard UK back boxes.

Professional Tip

The speaker plates and subwoofer plate are all cabled from the speaker locations to the main plate, which is located behind the AV receiver. They provide a dedicated point of connection, making future upgrades of the speakers or home cinema AV receiver easy.
