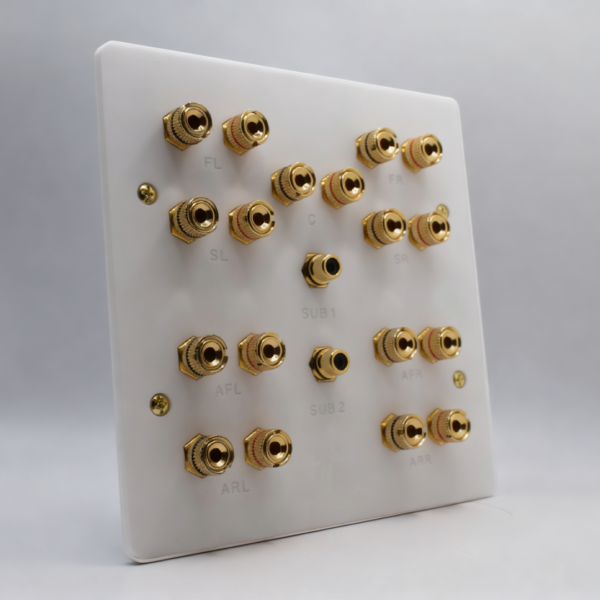

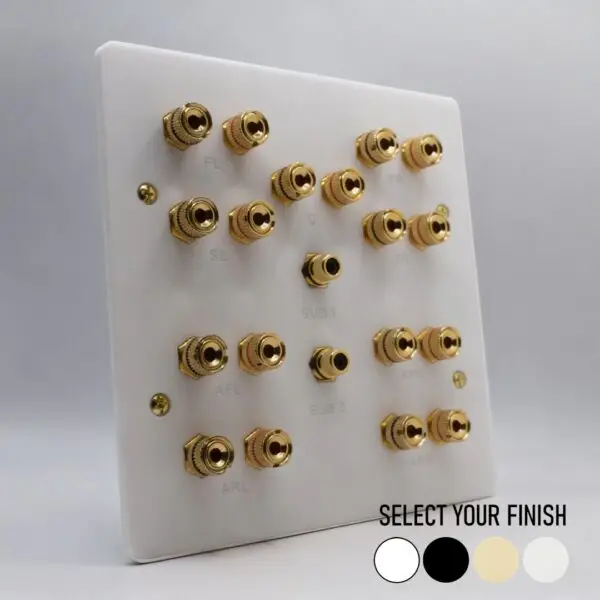

Four Gang Dolby Atmos 5.2.4 / 7.2.2 / 9.2 Speaker Plate

Description

Streamlining High-Density Dolby Atmos 5.2.4 & 9.2 Surround Audio

When building a high-performance home theatre, consolidating complex wiring into a single, intuitive hub protects signal integrity and makes future hardware upgrades effortless.

1. Massive Multi-Channel & Height Architecture

• The Benefit: Accommodates full 3D spatial audio arrays (Dolby Atmos, DTS:X, and Auro-3D) without needing multiple separate wall plates scattered behind your equipment rack.

• Key Feature: Integrates 18 gold-plated universal speaker binding posts (for 9 distinct channels) plus dual isolated RCA phono sockets for independent twin-subwoofer (.2) calibration.

2. Engraved Channel Identification

• The Benefit: Completely eliminates hookup errors, cable tracing headaches, and reversed phase connections when wiring high-channel AV receivers.

• Key Feature: Permanently laser-etched front labeling clearly designates every terminal location (FL, FR, C, SL, SR, AFl, AFR, ARL, ARR, and SUB 1 / SUB 2).

3. Complete Solution Everything You Need

• The Benefit: Eliminates guesswork during structural first-fix planning by including all necessary mounting hardware out of the box.

• Key Feature: Supplied with a matching steel back box, protective rubber grommets, two right-angle RCA adaptors and sets of brass and steel plate screws.

Key Technical Factors to Consider Before Buying

• Included Steel Back Box: Unlike standard plates that require sourcing custom back boxes, this plate comes complete with a tailored steel back box.

• Solderless Binding Terminals: The gold-plated posts feature identical screw-clamp couplers on both sides, letting you run standard 4mm banana plugs or bare copper wires without soldering. We also include a pair of gold-plated 90-degree RCA adaptors.

• Engraved Channel Map: To eliminate installation errors behind your receiver, every post is permanently engraved with its zone.  (FL, FR, C, SL, SR, AFL, AFR, ARL, ARR, SUB 1, and SUB 2).

• Uniform Design: This is the main central speaker plate; all the surround sound and Atmos speakers link back to it, along with any subwoofers. This ensures all your plates are made from the same material and will match.

Why Choose AV Installs?

With over two decades of custom AV installation leadership, AV Installs manufactures trade-ready hardware built to solve real-world installation challenges. Every 4-gang plate is hand-assembled to order in the UK and tested for maximum conductivity. Need additional HDMI, network pass-throughs, or customized channel etching on your 4-gang faceplate? Our engineering team offers bespoke design services for custom installations.

Are you a Trade Professional or System Integrator?

We regularly supply custom plates to custom installers, architects, and electrical contractors. Contact our technical team for schematic drawings, volume pricing, or bespoke designs on 0800 669 6600 or contact us online.
