Dolby Atmos 5.1.4 / 5.2.4 Speaker Plate

Description

How to Choose the Right Dolby Atmos 5.1.4 Speaker Plate for Your Project

Implementing four height speakers requires precise speaker terminal planning to avoid cable crossing.

1. Quad Height Dolby Atmos Arrays

• The Benefit: Delivers a realistic, moving overhead acoustic dome by adding distinct front-height and rear-height ceiling speaker lines.

• Key Feature: Packs 18 gold-plated terminal posts and two subwoofer RCA couplers to natively run 5.1.4 and 5.2.4 multi-channel setups.

Have something bigger in mind,  looking for a more immersive setup?  Take a look at our Dolby Atmos connection plates.

2. Architectural Quality Finishes

• The Benefit: Keeps your technical installation looking like a natural, high-end extension of your interior architecture.

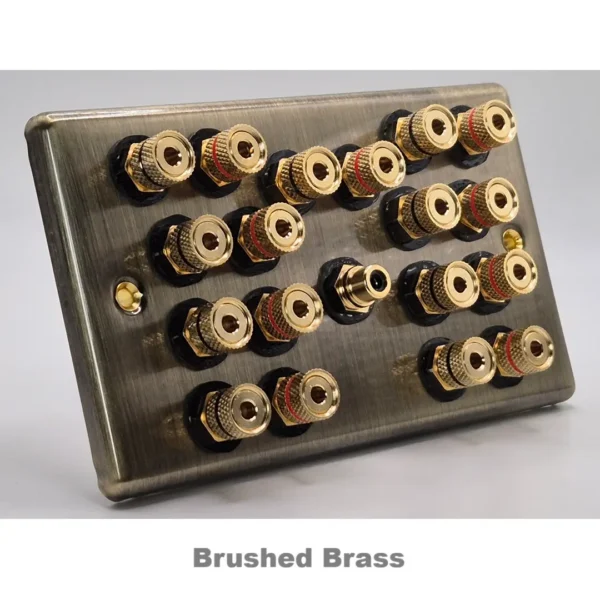

• Key Feature: Choose from nine premium plate styles—ranging from White and Black plastic to Brushed/Polished Chrome, Polished Brass, and Gun Metal Black with insulated nylon terminal bushings.

3. Plug-and-Play Assembly

• The Benefit: Saves you or your electrician hours of labour behind the wall, eliminating potential connection faults.

• Key Feature: Solderless screw-clamp terminals are identical on both the front and back of the plate, working seamlessly with 4mm banana plugs or bare wire.

Key Technical Factors to Consider Before Buying

• Tight Fit Back Box Planning: With 18 individual speaker-terminal connections and dual subwoofers, the space behind the plate is tight. We strongly recommend using a 47mm deep double-gang back box to ensure safe wire dressing.

This faceplate is also available on our 4-gang oversized plates, complete with a back box, making installation much easier and providing much more space.

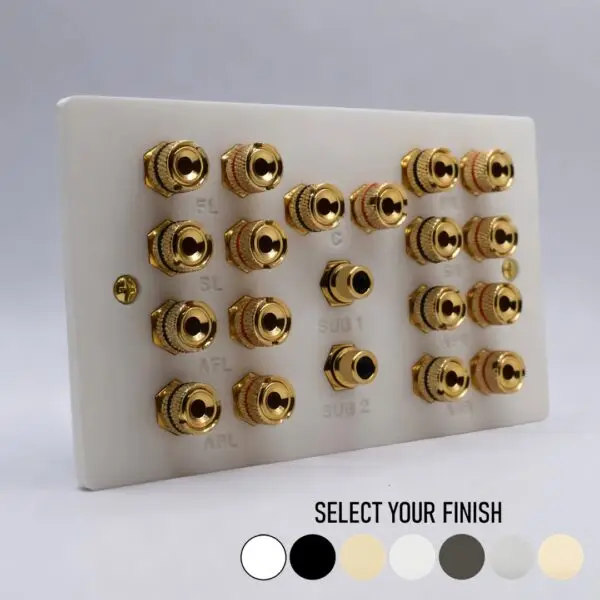

• Engraved Channel Mapping: To make receiver installation and future upgrades effortless, the plate is clearly engraved with: FL, FR, C, SL, SR, AFL, AFR, ARL, ARR, and dual SUB positions.

• Dual Subwoofer Phono Couplers: Standard RCA ports on both sides are perfect for modern active, line-level subwoofers.

Why Choose AV Installs?

We are AV integration engineers with over 20 years of real-world installation experience. All of our custom home theatre wall plates are hand-assembled in the UK using premium materials. If you require integrated HDMI 2.1 pass-throughs or CAT6 data lines in this layout, our design team can engineer them for you.

Are you a Trade Professional?

We regularly work with architects, builders, and interior designers. Contact us for technical drawings and trade pricing on 0800 669 6600 or contact us online.

Expert Tip

If you use deeper back boxes, like a 42mm or 47mm, this gives you extra room at the back when routing the cables, without the risk of damage or pinching.

Click here for banana plugs to go with the speaker plates?
