Four Gang Dolby Atmos 9.1.4 / 9.2.4 / 9.4.4 / 13.2 / 13.4 Speaker Plate
The Master Connection Terminal: Dolby Atmos 9.2.4 & 13.2 Speaker Wall Plate

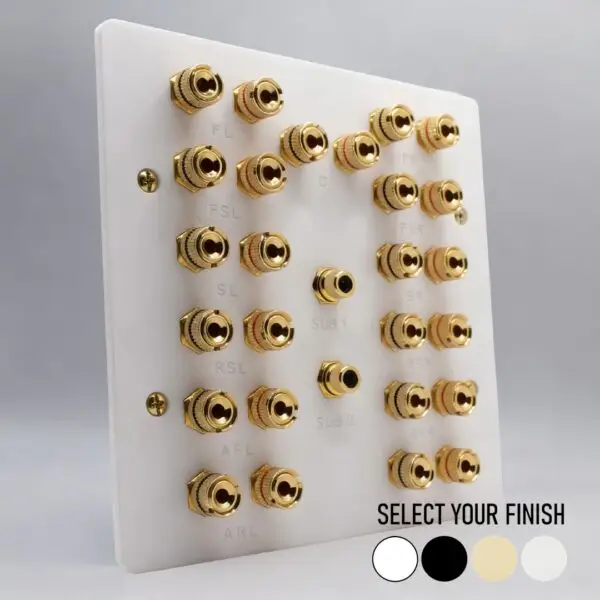

Are you building an elite, high-channel home theatre with extensive surround, height, and subwoofer channels? Simplify your receiver’s connection hub with our UK-built Dolby Atmos 9.2.4 / 13.4 Speaker Plate. Engineered by AV Installs to consolidate up to 26 speaker connections and four line-level subwoofers into one clean plate, this grid-mounted unit comes complete with its own steel back box.
£159.98
- Description
- Specifications
- 9.2.4 Setup Guide
- Custom Speaker Wall Plates
- Q & A
- Reviews (0)
Description
How to Choose the Right 9.2.4 / 13.4 Speaker Wall Plate for Your Project
Managing 26 terminal posts and multiple subwoofers requires an organised, robust termination panel.
1. Elite 13.4 Channel Sound Systems
-
The Benefit: Brings order to massive, reference-grade systems by combining front-wides, surrounds, rears, 4 overhead height speakers, and up to four independent subwoofers.
-

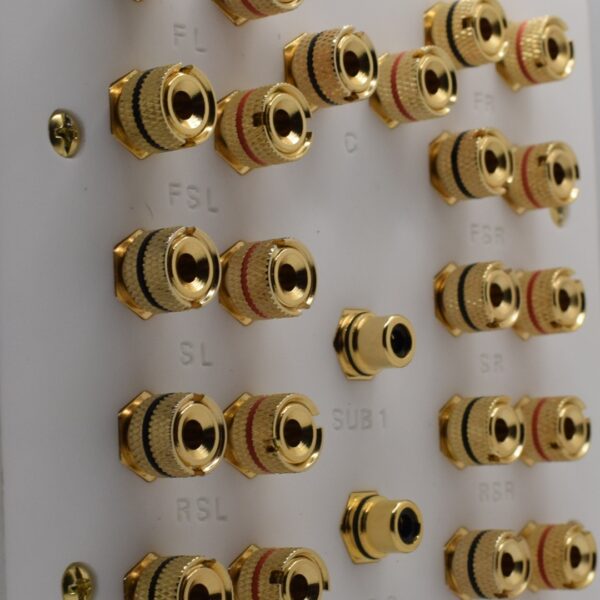

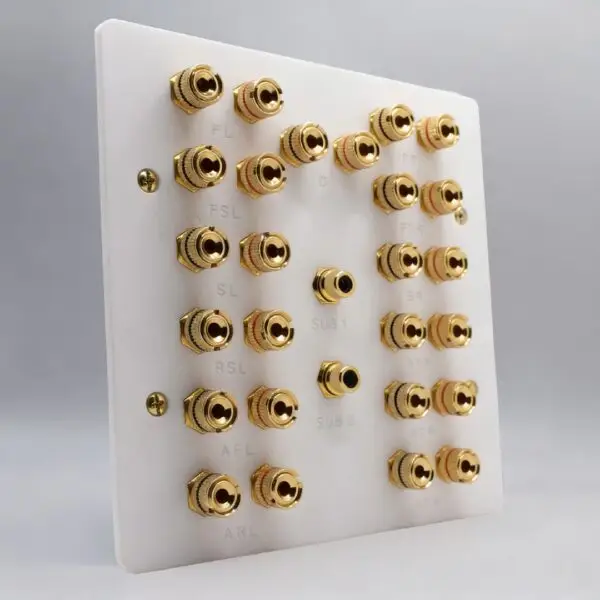

Key Feature: Standard plate features 26 gold-plated binding posts and two subwoofer RCA sockets, with an optional upgrade to add two more subwoofer RCA sockets for full 9.4.4/13.4 configurations.
Also available configured for a 13.4 dolby atmos 7.2.6 system’
2. Heavy-Duty Grid Mount Design
-
The Benefit: Built to support thick, high-gauge speaker cables and extensive conduit runs without flexing.
-
Key Feature: A solid 146mm x 146mm faceplate, available in standard/frosted white or black plastic. For custom brass or stainless steel,ย please get in touch.
3. Everything You Need In The Box
-
The Benefit: Ensures immediate structural compatibility, saving installation time during first-fix framing.
-
Key Feature: Includes a specialised steel back box, matching screws, 90-degree RCA adaptors and rubber protection grommets to insulate your wire feed knockouts
Key Technical Factors to Consider Before Buying
-
Solder-Free screw Terminals: There is no need for complex soldering behind this high-density plate. Binding posts feature identical screw-clamps on the front and back, accepting bare cable or 4mm banana plugs.
-
Etched Channel Identifiers: All terminals are permanently laser-etched with matching speaker positions to prevent wiring mistakes.
-

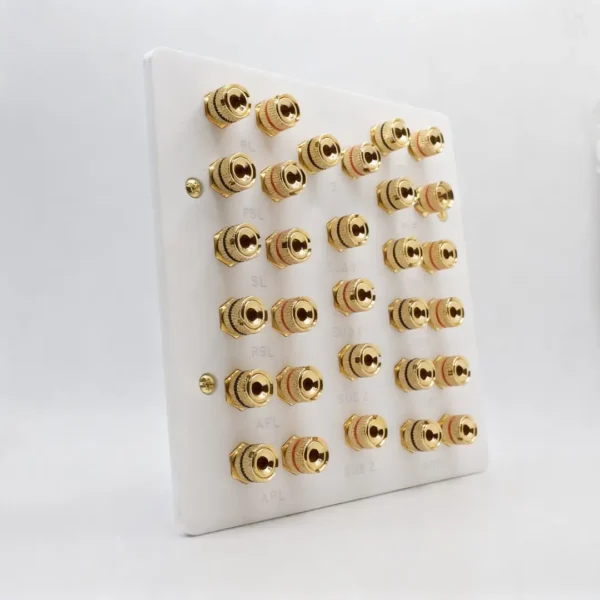

RCA to Passive Customisation: Subwoofer terminals come as active gold-plated RCA sockets, but can be customisedย to passive speaker posts for unpowered subwoofers.
Why Choose AV Installs?

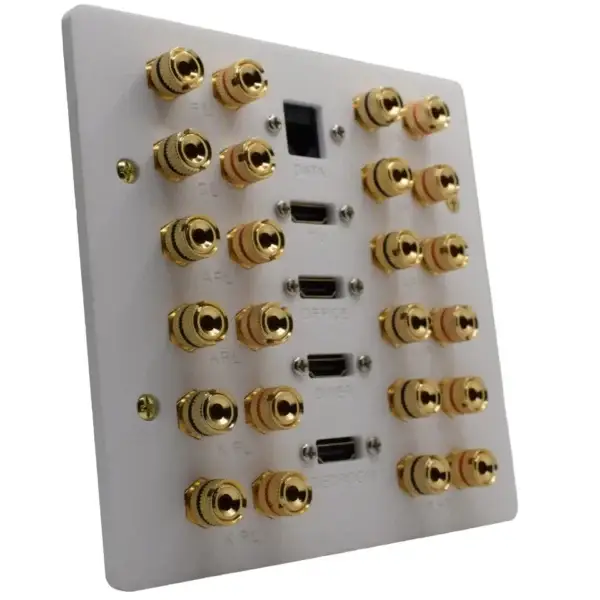

At AV Installs, we have spent more than 20 years designing and installing elite, custom-tailored cinema rooms across the UK. All our high-density Atmos plates are hand-assembled to trade standards. If your project requires built-in high-speed HDMI 2.1 ports or CAT6 network pass-throughs directly on this plate, our design team can integrate them.
Are you a Trade Professional?
We regularly work with architects, builders, and interior designers. Contact us for technical drawings and trade pricing on 0800 669 6600 or contact us online.
Installers Tip
Use the rubber grommets provided on the steel boxes’ cable knockouts. This protects the speaker cable from being damaged when they are being connected to the back of the wall plate.
Click here for banana plugs to go with the speaker plates?
Dolby Atmos 9.1.4 & 9.2.4 Detailed Specifications
| Specification | Detail |
| Plate Dimensions | Oversized Plate (approx. 146mm x 146mm) |
| Speaker Connections | 26 x Gold-Plated Binding Posts (13 x Red, 13 x Black) |
| Subwoofer Connection | 2 x Gold-Plated RCA Female-to-Female Coupler
2 x Gold-Plated RCA Right Angle Adaptor |
| Front Termination | 4mm Banana Plugs, Spade Terminals, or Bare Wire |
| Rear Termination | Screw Terminals (Solderless), 4mm Banana Plugs |
| Back Box Requirement | Included 50mm deep 133mm x 133mm |
| Fixing Screws | Included Brass & Steel |
| What’s included |
|
Speaker Labeling (Engraving)
All our plates are engraved with the speaker socket number to identify their location in the setup.
| Engraving | Speaker Location |
|---|---|
| FL | Front Left Speaker |
| FR | Front Right Speaker |
| C | Centre Speaker |
| FSL | Front Surround Left |
| FSR | Front Surround Right |
| SL | Surround Left Speaker |
| SR | Surround Right Speaker |
| RSL | Rear Surround Left Speaker |
| RSR | Rear Surround Right Speaker |
| AFL | Atmos Front Left Speaker |
| AFR | Atmos Front Right Speaker |
| ARL | Atmos Rear Left Speaker |
| ARR | Atmos Rear Right Speaker |
| SUB 1 & SUB2 | Subwoofer Speakers |
In addition, this connection plate can also be configured for a Dolby Atmos 7.2.6 setup.
Would you like to make any changes? No problem. Please get in touch for custom labelling or branding.
Dolby Atmos 9.1.4 Speaker Layout Guide
A complex, powerful configuration that provides seamless coverage across both the horizontal and vertical planes. It merges the 9.1 floor layer with a full four-speaker overhead grid.
Placement Notes:
- This system uses the full 9.1 floor layout from Fig 3 (LCR, Wides, SL/SR, Back Surrounds).
- The establishedย Front Heightย (FH) andย Rear Heightย (RH) speaker pairs are installed in the ceiling grid, matching the placement defined in the previous .4 diagrams.
- This configuration provides exceptional resolution and seamless panning for object-based audio tracks.

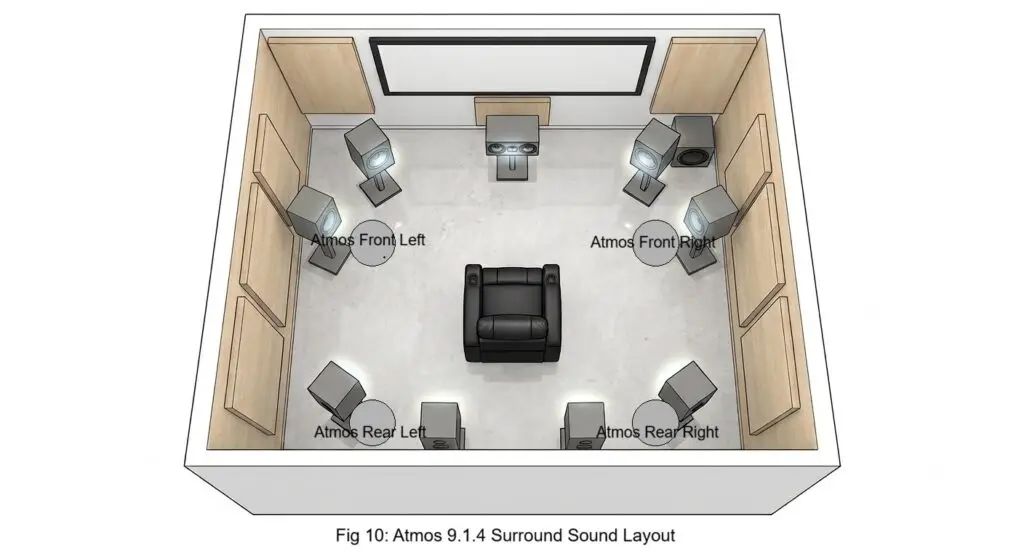

Fig 10: The 9.1.4 layout combines the complex 9-channel floor layer (including Wides) with the complete four-speaker overhead grid (Front and Rear Heights).
For more in-depth information on speaker placement, please visitย Dolbyย or download theย Dolby Atmos 9.1.4 Home Cinema Speaker Guide.
Looking for something else? Take a look at our latest blog post Surround Sound Speaker Placement Guide.
At AV Installs, we produce all our speaker wall plates here in the UK. We offer an extensive selection of standard speaker connection plates to suit most applications, along with custom services when needed. If you’re seeking something not listed in our standard catalogue or want to modify an existing plate, contact us for more details. Our friendly team are always happy to assist, and we maintain short lead times for bespoke orders.
