Double Gang Dolby Atmos 5.1.4 / 5.2.4 Speaker Plate

Description

How to Choose the Right Dolby Atmos 5.1.4 Speaker Plate for Your Project

Implementing four height speakers requires careful speaker-terminal planning to avoid cable crossings.

1. Quad Height Dolby Atmos Arrays

• The Benefit: Delivers a realistic, moving overhead acoustic dome by adding distinct front-height and rear-height ceiling speaker lines.

• Key Feature: Packs 18 gold-plated terminal posts and two subwoofer RCA couplers to natively run 5.1.4 and 5.2.4 multi-channel setups.

Have something bigger in mind and want a more immersive setup?  Check out our Dolby Atmos connection plates.

2. Architectural Quality Finishes

• The Benefit: Keeps your technical installation looking like a natural, high-end extension of your interior architecture.

• Key Feature: Choose from nine premium plate styles—from White and Black plastic to Brushed/Polished Chrome, Polished Brass, and Gun Metal Black — with insulated nylon terminal bushings.

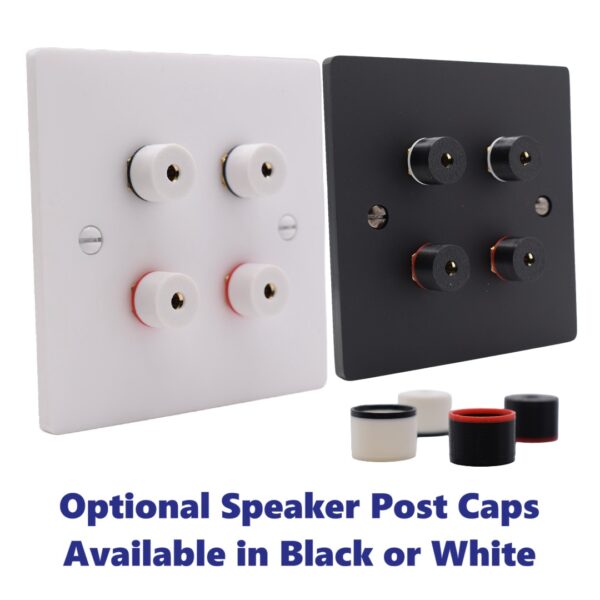

• Speaker Post Caps: These decorative caps come in black or white, with easy identification bands for + and – channels. These caps fit over our gold-plated speaker post thumb screws while still allowing the binding posts to operate and banana plugs to fit. Available for the front only or for the front and back. To add these to your order, please see options above. When you order speaker caps, we also provide screws that match your plate to keep everything looking as discreet as possible.

3. Plug-and-Play Assembly

• The Benefit: Saves you or your electrician hours of labour behind the wall and eliminates potential connection faults.

• Key Feature: Solderless screw-clamp terminals are identical on both sides of the plate, working seamlessly with 4mm banana plugs or bare wire.

Optional Cable Crimp Sleeve Ferrules

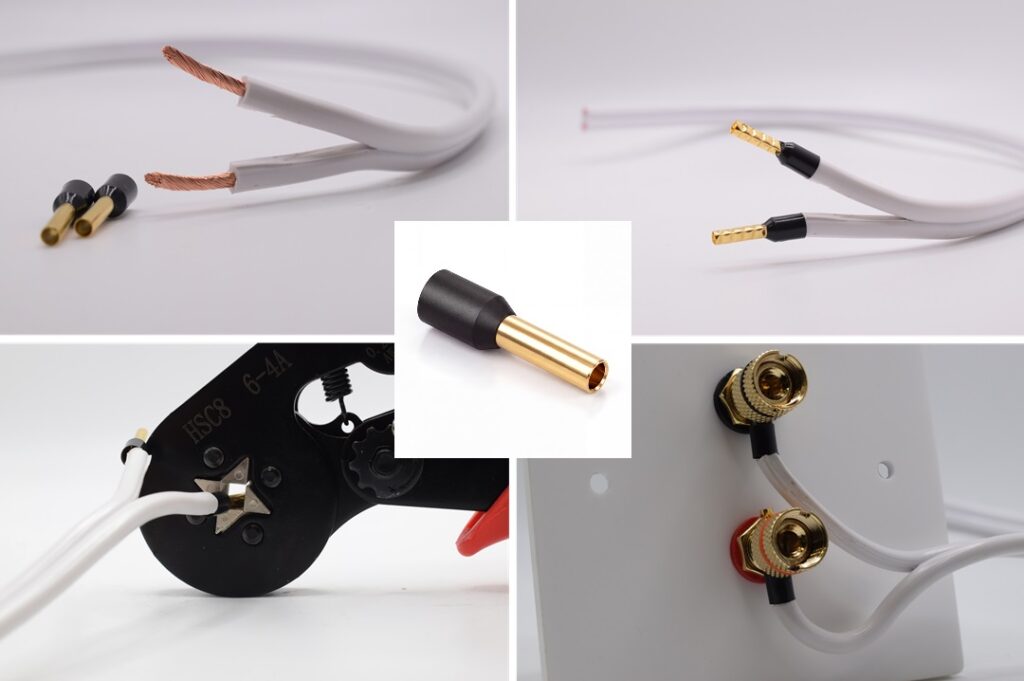

Protect your speaker cables from potential damage and oxidisation with our OFC 24-carat gold-plated crimp sleeve ferrules. For this connection plate, you’ll need X18 for the back of the speaker plate and X18 for the speaker end. To order, please click one of the links below

Click here for 1.5mm crimp ferrules for 16AWG cables

Click here for 2.5mm crimp ferrules for 14AWG cables

Key Technical Factors to Consider Before Buying

• Tight Fit Back Box Planning: With 18 individual speaker-terminal connections and dual subwoofers, the space behind the plate is tight. We strongly recommend a 47mm-deep double-gang back box to ensure safe wire dressing.

This faceplate is also available on our 4-gang oversized plates, complete with a back box, making installation much easier and providing much more space. Please click here

• Engraved Channel Mapping: To make receiver installation and future upgrades effortless, the plate is clearly engraved with: FL, FR, C, SL, SR, AFL, AFR, ARL, ARR, and dual SUB positions.

• Dual Subwoofer Phono Couplers: Standard RCA ports on both sides are perfect for modern active, line-level subwoofers.

Why Choose AV Installs?

We are AV integration engineers with over 20 years of real-world installation experience. We hand-assemble all our custom home theatre wall plates in the UK using premium materials. If you require integrated HDMI 2.1 pass-throughs or CAT6 data lines in this layout, our design team can engineer them for you.

Are you a Trade Professional?

We regularly work with architects, builders, and interior designers. Contact us for technical drawings and trade pricing on 0800 669 6600 or contact us online.

Expert Tip

If you use deeper back boxes, like a 42mm or 47mm, this gives you extra room at the back when routing the cables, without the risk of damage or pinching.

Click here for banana plugs to go with the speaker plates.
