5.1 Speaker Wall Plate Set (SINGLE GANG)
Complete Room Clean-Up: 5.1 Speaker Wall Plate Set
Transform your living space or media room with a complete, end-to-end cable routing solution. Designed for standard 5.1 surround sound setups, this all-in-one UK-manufactured package includes a centralised double-gang main plate for behind your receiver, five single-gang satellite speaker plates, and a dedicated subwoofer plate. Route every channel invisibly through your walls to eliminate unsightly trailing wires and achieve a flawless, high-end installer finish.
£144.91
- Description
- 5.1 Setup Guide
- Custom Speaker Wall Plates
- Q & A
- Reviews (0)
Description
Everything You Need for a Seamless 5.1 Cable Installation
1. Complete Centralised Connectivity
-
The Benefit: Centralises all speaker feeds into one organised point behind your AV receiver while giving each surround speaker its own tidy wall terminal.
-

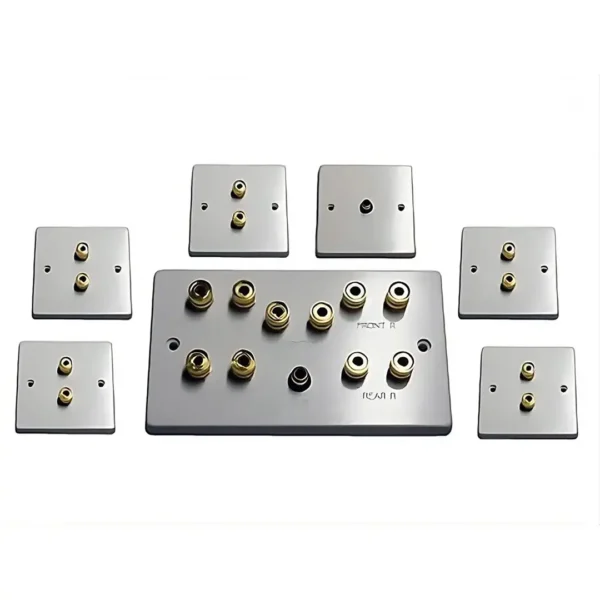

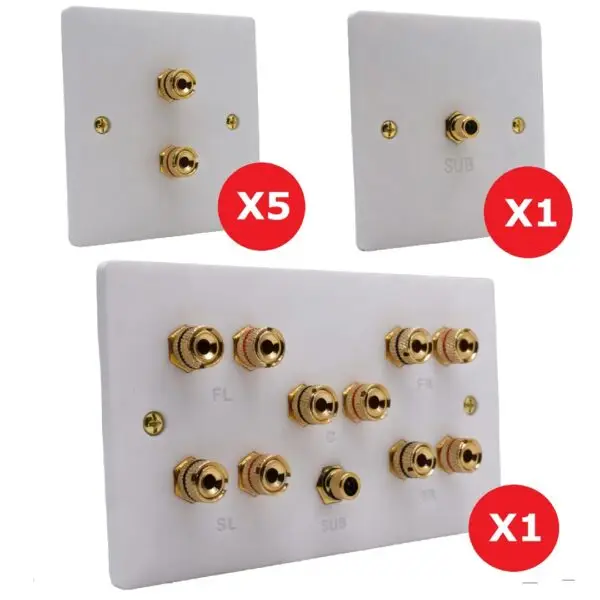

Key Feature: Includes 1x Double Gang 5.1 Main Plate (engraved for FL, FR, C, SL, SR, SUB), 5x Single-Gang Speaker Plates, and 1x Single-Gang Subwoofer RCA Plate.
2. Precision Recessed Design
-
The Benefit: Keeps the profile sleek and reduces strain on connected banana plugs or speaker cables.
-
Key Feature: All connectors are fully recessed into the faceplates to ensure perfect alignment and minimal wall protrusion.
3. Low-Profile Subwoofer Routing
-
The Benefit: Prevents heavy phono cables from bending against back boxes or drywall cavities.
-
Key Feature: Comes complete with 2x right-angle RCA adapters for smooth, stress-free internal cable dressing.
Technical Breakdown & Specifications
-
Solderless Binding Posts: Equipped with heavy-duty gold-plated binding posts that accept bare wire, spade lugs, or standard 4mm banana plugs on both front and rear.
-
Dimensions & Back Box Fit: Single plates measure 86mm x 86mm; main plate measures 146mm x 86mm. Fits standard UK back boxes (main plate and sub plat 47mm deep boxes are recommended for optimal wire clearance).
-
Finish Options: Hand-assembled in the UK and available in frosted matt white or black plastic.
5.1 Connection Plate Engraving
| Engraving | Speaker Location |
|---|---|
| FL | Front Left Speaker |
| FR | Front Right Speaker |
| C | Centre Speaker |
| SL | Surround Left Speaker |
| SR | Surround Right Speaker |
| SUB | Subwoofer Speaker |
Installation Tip
The single speaker plates and subwoofer plate are all cabled from their speaker locations back to the main plate, which is located behind the AV receiver. This provides a centralised connection hub, making future upgrades of the speakers or home cinema AV receiver easy.
Click here for banana plugs to go with the speaker plates?
5.1 Surround Sound Setup Guide
For an in-depth look on speaker placement, please visit Dolbyย or download theย Dolby 5.1 Home Cinema Speaker Guide.
Looking for information on another Dolby Surround Sound or Atmos Layout? Please see our recent blog post, Surround Sound Speaker Placement Guide.ย
At AV Installs, we produce all our speaker wall plates locally in the UK. We offer a broad selection of standard speaker connection plates suitable for most applications and provide bespoke services when needed. If youโre after something not listed in our standard catalogue or wish to modify an existing plate, please get in touch for further details. Our friendly team is always happy to assist, and we keep short lead times for custom orders.
