7.1 Wall Speaker Plate Set (SINGLE GANG)

The Ultimate Modular Connection System for 7.1 Surround Sound

1. Eight Individual Satellite Outlets

• The Benefit: Dedicated outlet plates for every channel keep high-level surround sound setups organised, flexible, and future-proof.

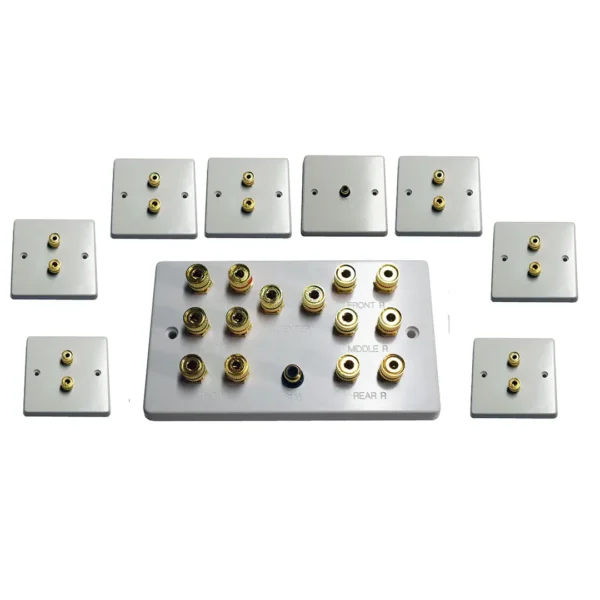

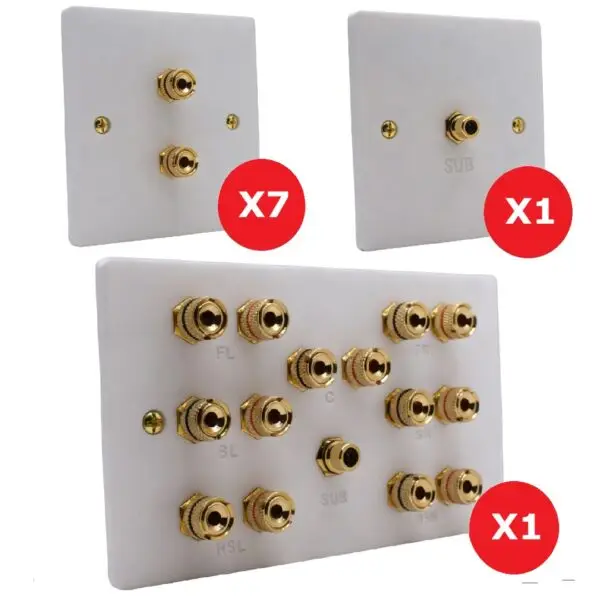

• Key Feature: Bundle includes 1x Double Gang 7.1 Main Hub, 7x Single-Gang Speaker Plates, 1x Single-Gang Subwoofer RCA Plate, and 2x Right-Angle RCA Adapters.

2. Engraved Channel Identification

• The Benefit: Removes the guesswork when plugging in complex 7-channel amplifiers.

• Key Feature: The main double-gang hub features clear, permanent labelling for Front Left/Right, Centre, Surround Left/Right, Rear Surround Left/Right, and Subwoofer.

3. Universal 4mm Plug & Bare Wire Sockets

• The Benefit: Enables quick disconnects when upgrading speakers or replacing AV receivers.

• Key Feature: Every terminal uses dual-sided screw-clamp binding posts compatible with 4mm banana plugs.

4. Tailored to Your Home Aesthetics

• The Benefit: Lets your installations match your design vision, making your work look polished and intentional.

• Key Feature: Available in seven diverse finishes, including White or Black frosted plastics, alongside custom-machined metal variants like Brushed Chrome, Polished Chrome, Brass, and Gun Metal Black. All our metal plates feature colour-coded ABS plastic insulating bushes on the front.

  •
  •
  •
  •
  •
  •

• Speaker Post Caps: These decorative caps come in black or white, with easy identification bands for + and – channels. These caps fit over our gold-plated speaker post thumb screws while still allowing the binding posts to operate and banana plugs to fit. Available for the front only or for the front and back. To add these to your order, please see options above. When you order speaker caps, we also provide screws that match your plate to keep everything looking as discreet as possible.

Optional Cable Crimp Sleeve Ferrules

Protect your speaker cables from potential damage and oxidisation with our OFC 24-carat gold-plated crimp sleeve ferrules. For this connection plate, you’ll need X2 for the back of the speaker plate and X2 for the speaker end. To order, please click one of the links below

Click here for 1.5mm crimp ferrules for 16AWG cables

Click here for 2.5mm crimp ferrules for 14AWG cables

Technical Breakdown & Specifications

• Plate Sizes: Single-gang plates: 86mm x 86mm; Main hub: 146mm x 86mm.

• Back Box Recommendation: Fits all standard UK back boxes. We strongly recommend a 47mm-deep back box for the Subwoofer and 7.1 main hub due to the volume of internal wiring.

• UK Craftsmanship: Hand-built to order in white or black frosted plastic finishes.

7.1 Main Plate Labelling
